Blackmagic URSA Cine - Positioning URSA Cine EVF; Adjusting Forwards and Backwards; Adjusting the Height

Positioning URSA Cine EVF
URSA Cine EVF’s rod mount design gives you total flexibility when positioning the viewfinder
plus the ability to attach accessories, for example lens focus and iris motors. By loosening the
clamps and sliding the arm forwards or backwards, rotating the arm and eyepiece, or using a
combination of all three, you can position the eyepiece exactly where you need it. This section
describes how.
Adjusting Forwards and Backwards

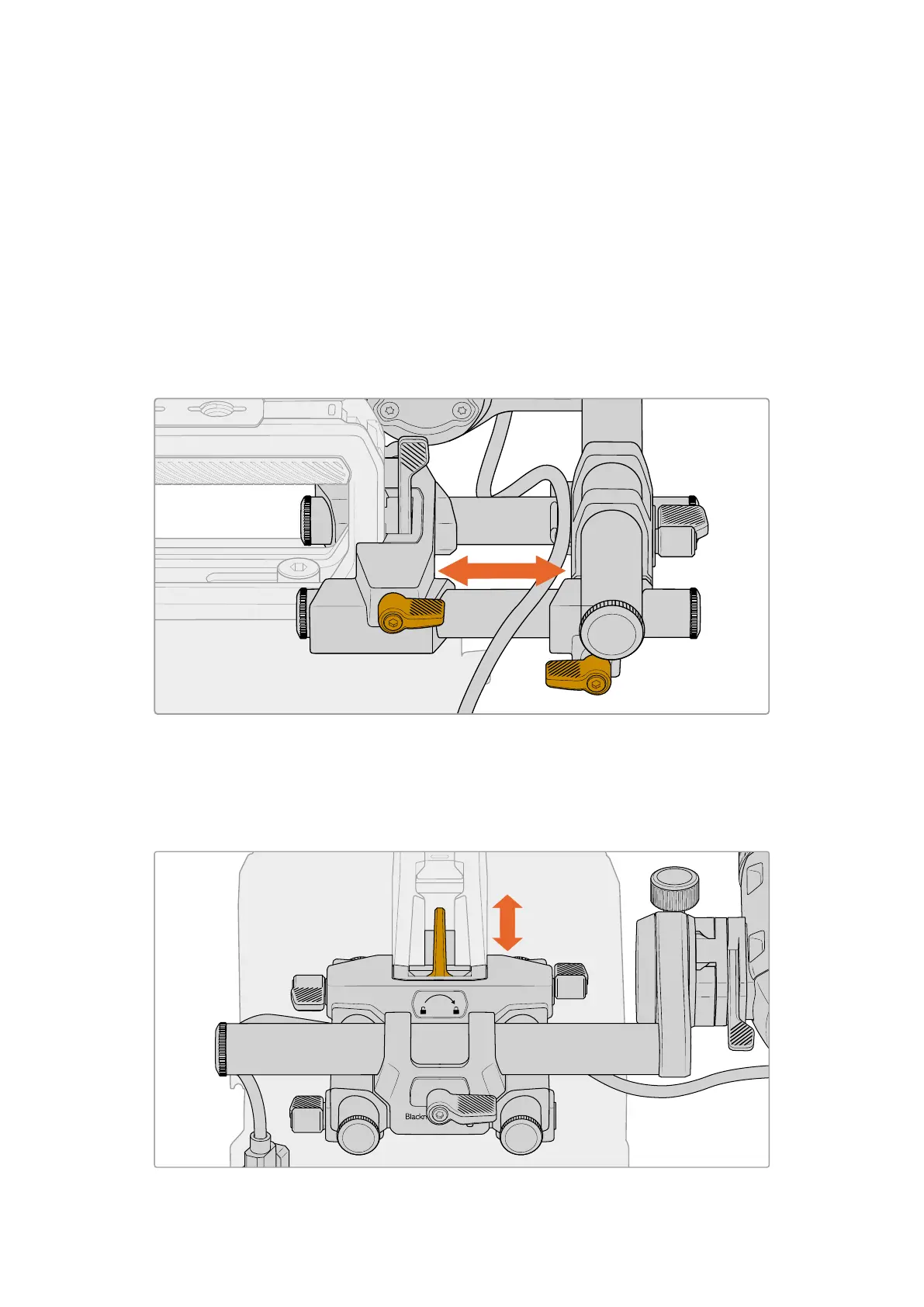

For forwards and backwards movement, the fastest way is to loosen URSA Cine EVF Bracket
Rod Mount’s thumbscrew and slide the EVF forwards or backwards on the 15mm rods. Tighten
to secure in place.
20
19
0
1
18
17
16
15
14
13
VF3
REC
VF2
EXP
VF1
ZOOM
Adjusting the Height
When positioning the height of the eyepiece, one method is to loosen the top rod mount and
slide its dovetail bracket up and down the handle’s vertical mini dovetail slot. This is also helpful
when adjusting the position to fit lens accessories.
20
19
18
17
0
1
2
3
4
VF1ZOOM
VF2EXP
VF3REC
55Blackmagic URSA Cine EVF
