2
1
2
1
2
3
4
5
6
8
9
7
1
0
10
ZOOM
VF1
EXP
VF2
REC
VF3
1
2
3
4
5
6
7
0
20
21
3

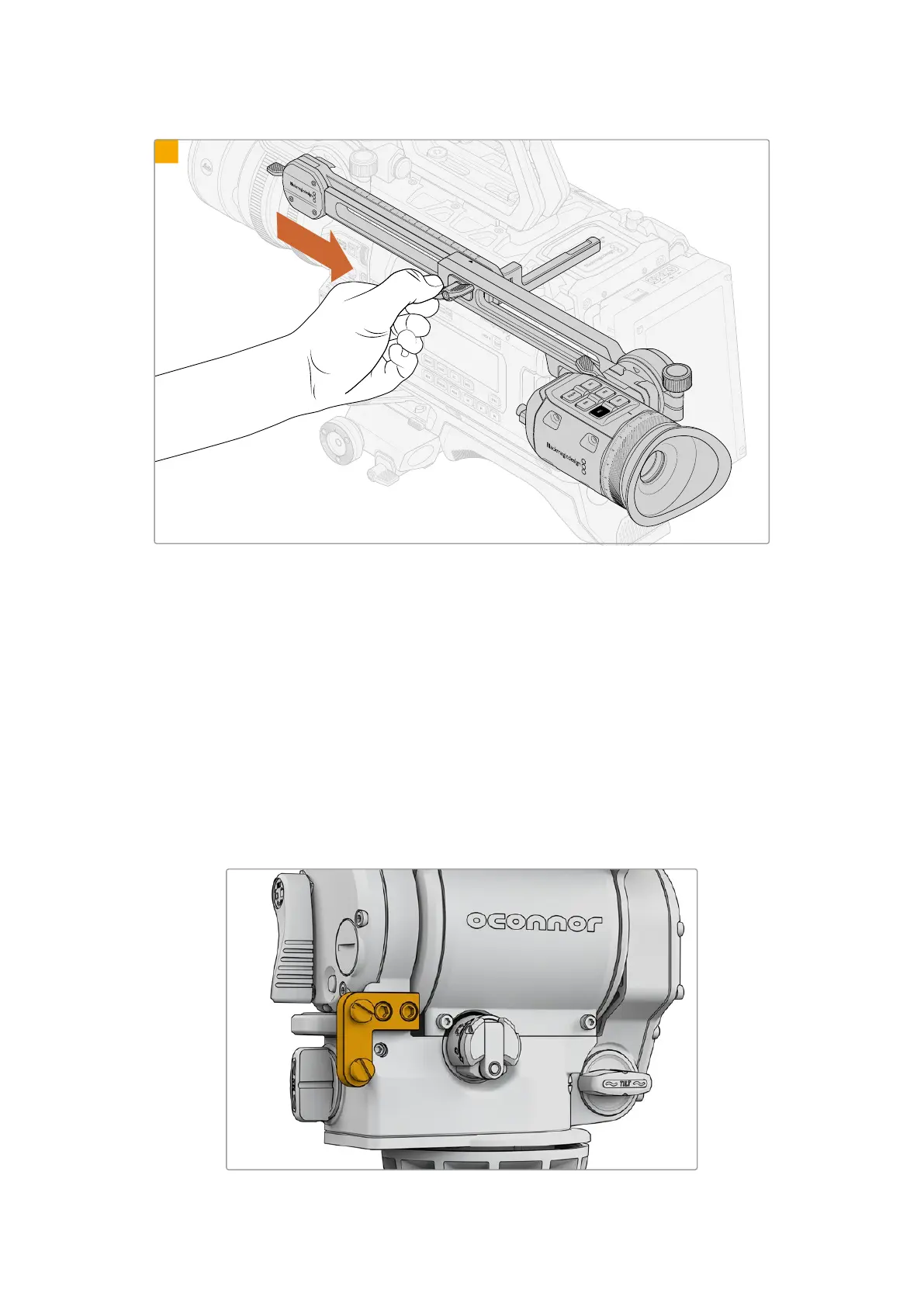

Tighten the thumbscrew to secure the arm in place.
Depending on how far the eyepiece is extended, you may need to swap the short USB cable
with the long cable also supplied with your camera.
Attaching an Eyepiece Leveller
When using tripod heads designed for larger camera systems, for example OConnor and
Ronford Baker heads, they typically have an eyepiece leveller accessory that is supplied with
the head. URSA Cine’s EVF Extension has a small bracket underneath the arm that is designed
for this accessory.
To attach an eyepiece leveller:
1 Make sure the levelling rod’s head mount is attached to the tripod head.
61Attaching an Eyepiece Leveller
