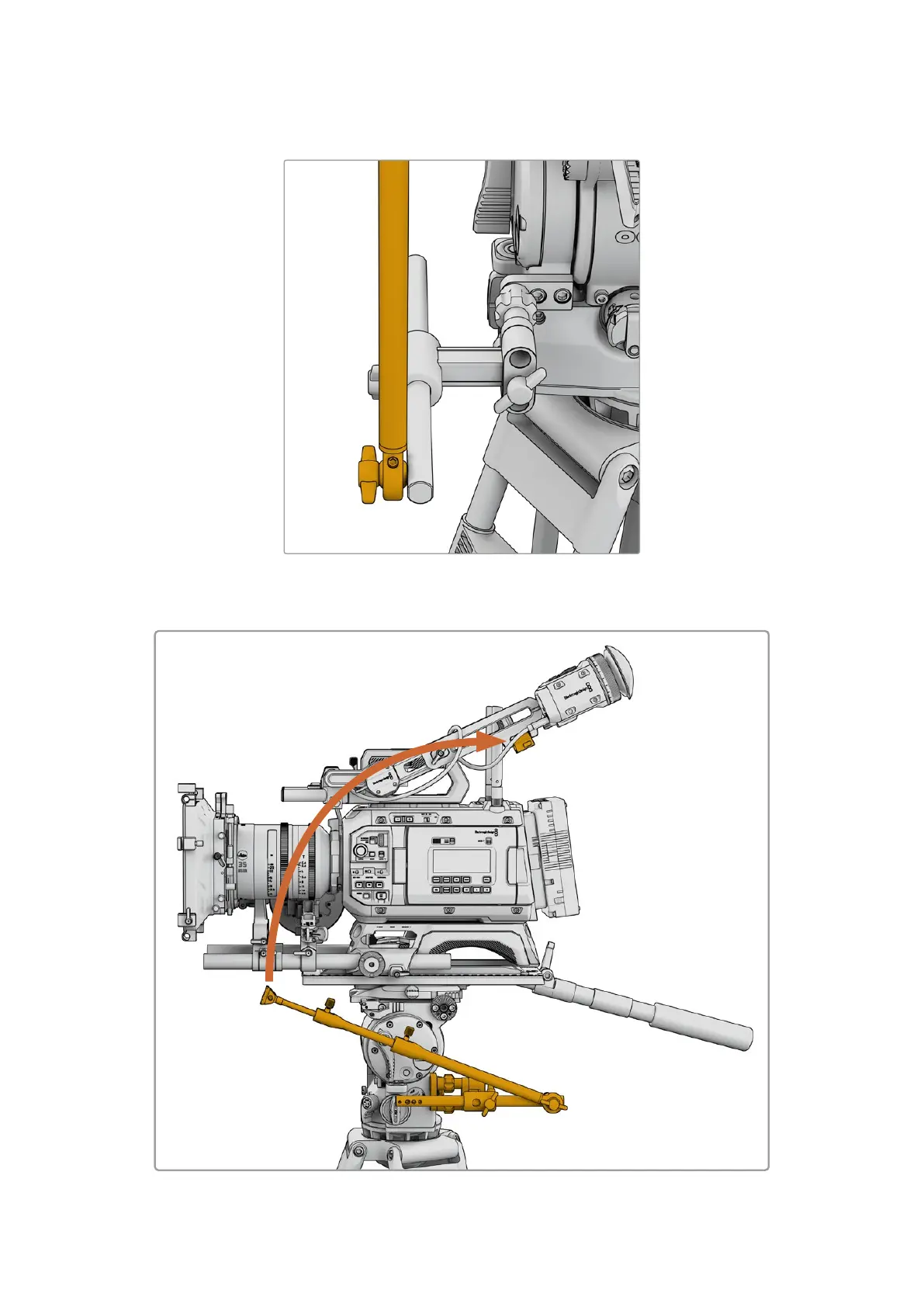

4 Attach the telescopic levelling rod to the mount base.

5 Now swing the levelling rod up and extend to meet URSA Cine EVF Extension’s leveller

bracket. You may need to adjust the rod’s length to suit.

63Attaching an Eyepiece Leveller
