9 S850 Operation & Maintenance Manual
FEATURES, ACCESSORIES AND ATTACHMENTS (CONT’D)

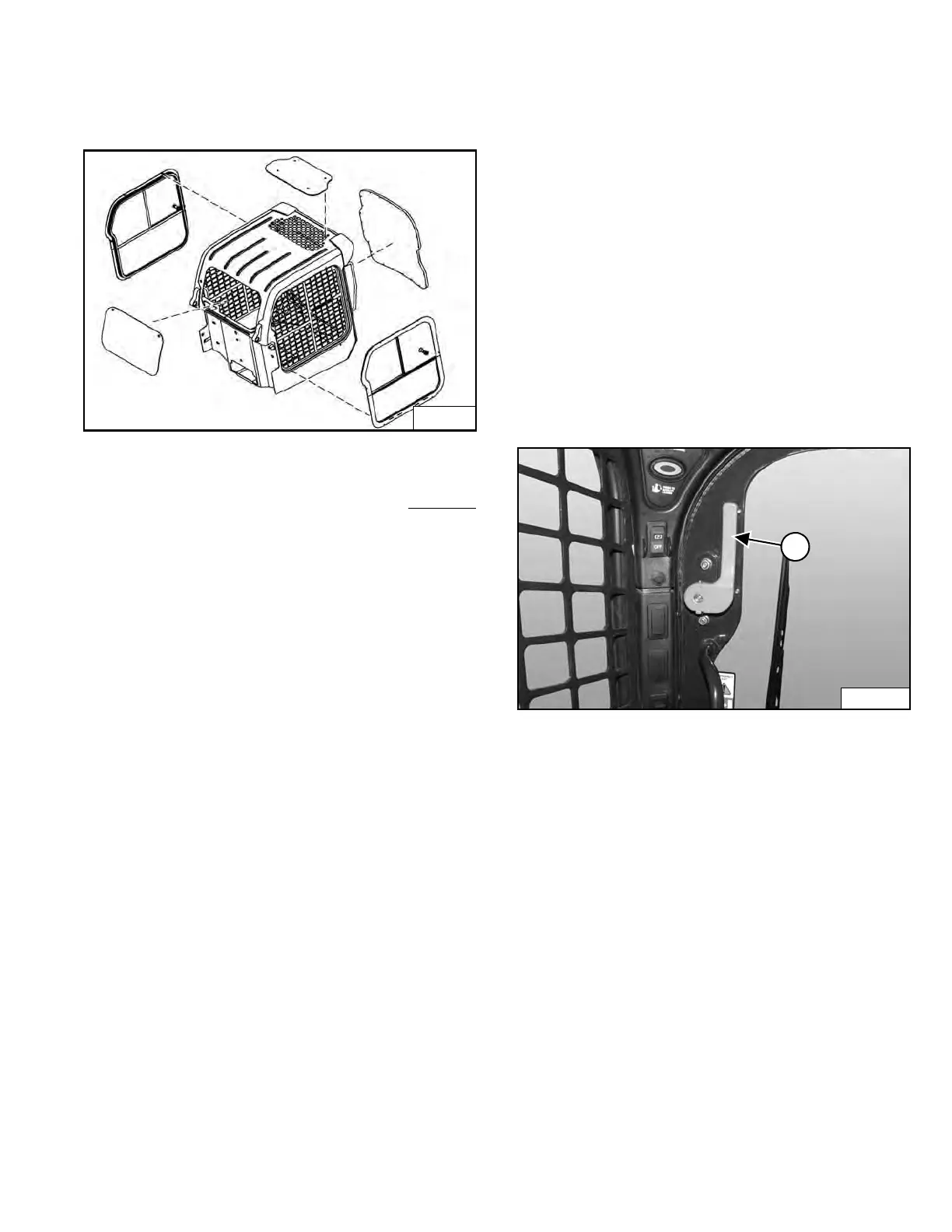

Forestry Door And Window Kit
Figure 5
Must be used as part of the Forestry Applications Kit to
pr
event flying debris and objects from entering the
loader. Kit includes 19,1 mm (0.75 in) thick
laminated
polycarbonate front door, polycarbonate side windows
and polycarbonate rear window [Figure 5].
Polycarbonate top window (standard item) must be
in
stalled as part of the Forestry Applications Kit to restrict
material from entering cab openings.
Forestry Door And Window Kit Inspection And
Maintenance
• Inspect for cracks or damage. Replace if required.
• Order part number 7171104 if door frame is damaged
and needs to be replaced.
• Order kit part number 7193293 if door polycarbonate
is damaged and needs to be replaced.
• Pre-rinse with water to remove gritty materials.
• Wash with a mild household detergent and warm
water.
• Use a sponge or soft cloth. Rinse well with water and
dry with a clean soft cloth or rubber squeegee.
• Do not use abrasive or highly alkaline cleaners.
• Do not clean with metal blades or scrapers.
Forestry Door Emergency Exit
Figure 6
• Inspect both emergency exit levers (Item 1)
[Figure 6], linkages and hardware for loose or
damaged parts.
• Repair or replace if necessary.
Dealer Copy -- Not for Resale
