49 S850 Operation & Maintenance Manual
EMERGENCY EXIT (CONT’D)
External Access (Rear Window With Latches)

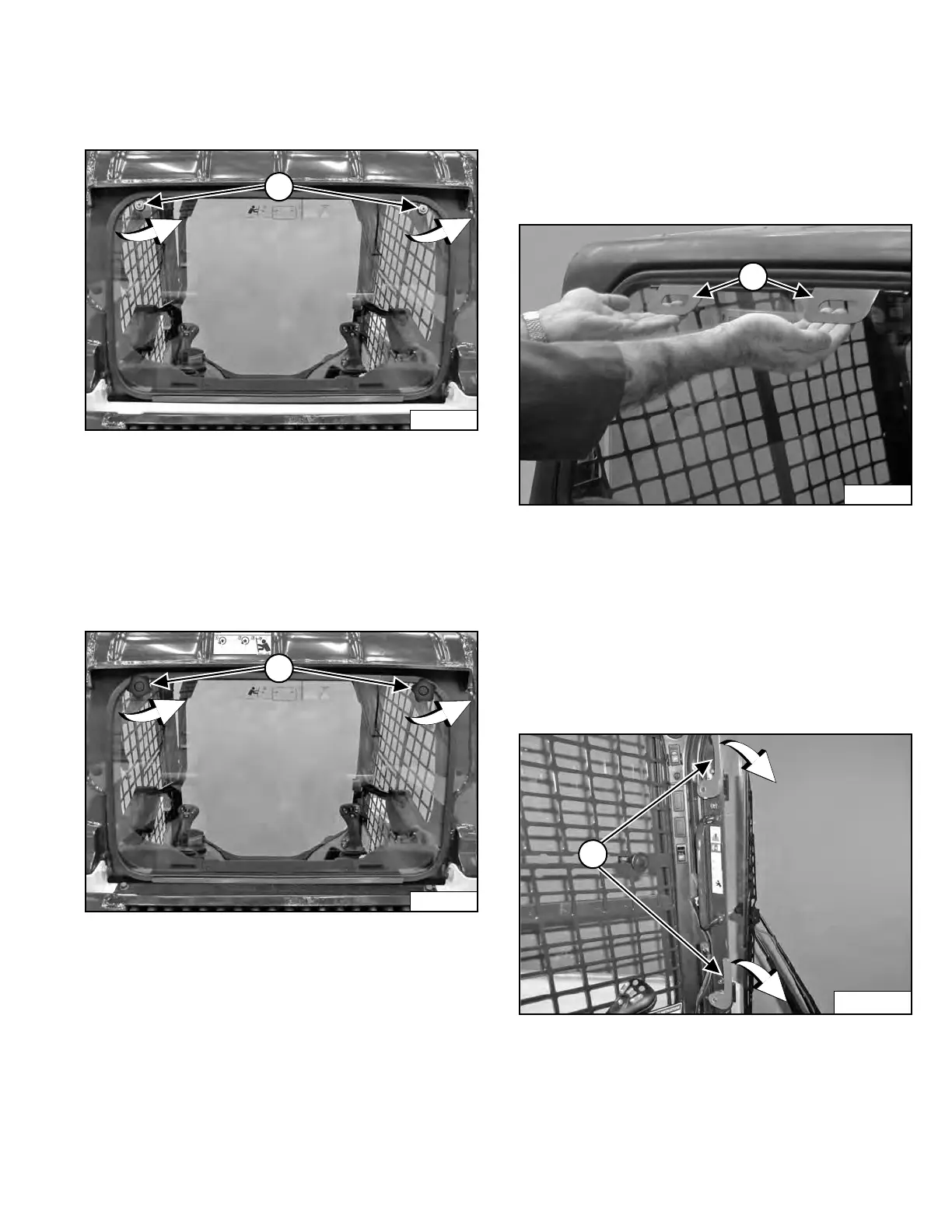

Figure 46
The rear window can be removed from outside the loader
using a T40 TORX® Drive tool. Turn both screws (Item 1)
[Figure 46] counterclockwise until the latches disengage
from the window frame. Pull the top of the window away
f
rom the cab and lift up to remove.
OR
Figure 47
A kit is available to allow removal of the latch equipped
r
ear window from outside the machine without tools. See
your Bobcat dealer for availability.
Turn both knobs (Item 1) [Figure 47] counterclockwise
until the latches disengage from the window frame. Pull
th
e top of the window away from the cab and lift up to
remove.
External Access (Rear Window With Rubber Cord)
A kit is available to allow removal of the rubber cord
eq
uipped rear window from outside the machine. See
your Bobcat dealer for availability.
Figure 48
Pull both handles (Item 1) [Figure 48] up and out to
remove the rear window.
Front Door
This machine may be equipped with a Front Door.
NOTE: Use this procedure to remove the front door
only
under emergency conditions. Damage to
machine may occur.
Figure 49
Turn both latches (Item 1) [Figure 49] down until they
disengage from the door frame.
Push the door out of the operator cab door frame and exit
t
hrough the opening.
