Bobcat S850 - Steering Handle; Joystick Position Adjustment; Seat Belt Adjustment; Seat Bar

79 S850 Operation & Maintenance Manual
PRE-STARTING PROCEDURE (CONT’D)

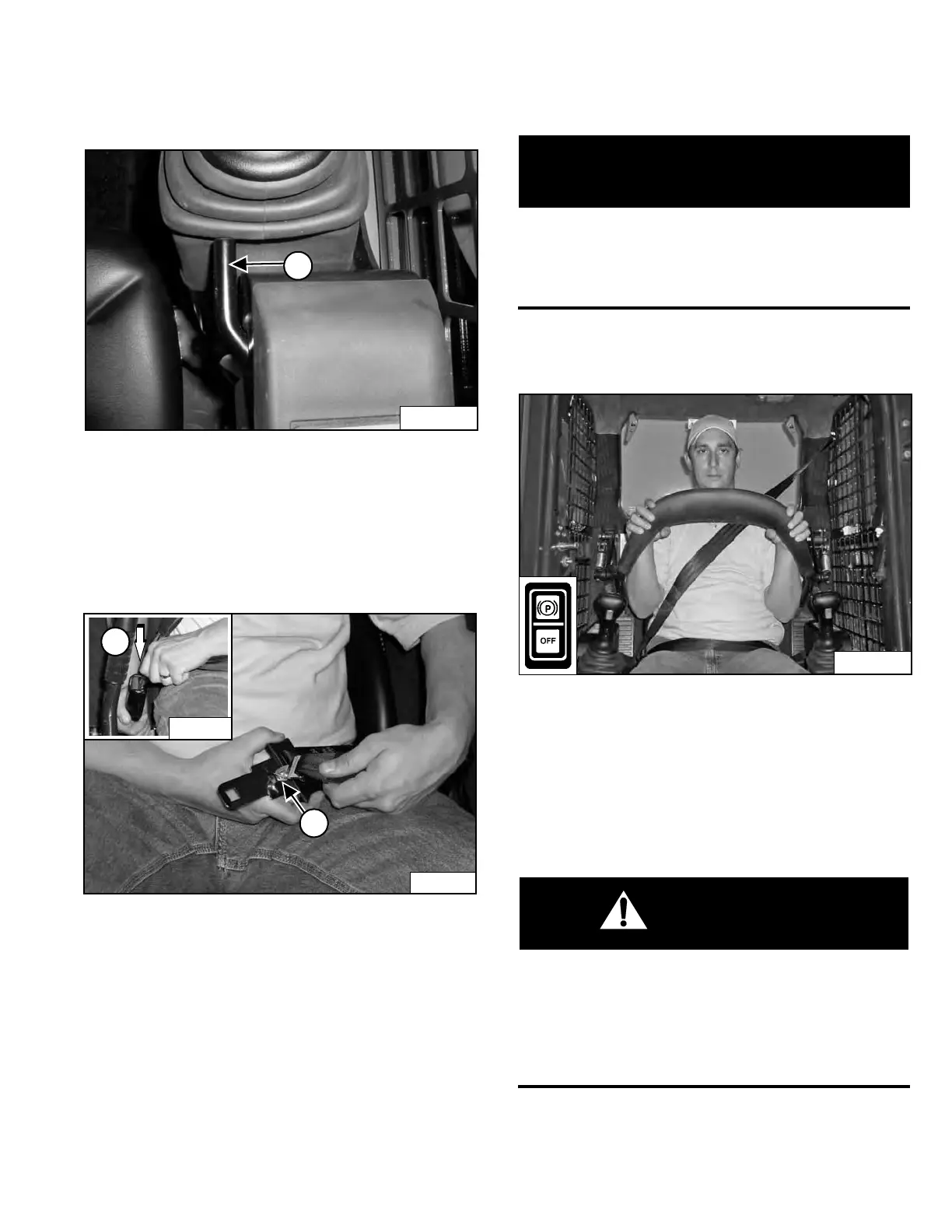

Steering Handle / Joystick Position Adjustment
Figure 102
Pull the adjustment levers (Item 1) [Figure 102] up to
slide the loader steering handles or joysticks forward or
b
ackward to adjust for comfortable operation. (Right side
shown.)
Seat Belt Adjustment
Figu
re 103
Connect the shoulder belt to the lap belt (Item 1)
[Figure 103]. Pull the lap belt across to the right side of
the seat and fasten (Item 2) [Figure 103].
The shoulder belt must be positioned over your left
shoulder and lap belt over your lower hips
[Figure 103] .
IMPORTANT
Check the seat belt and shoulder belt retractors for
correct operation.
Keep retractors clean and replace as necessary.
I-2199-0200
Seat Bar
Figure 104
Lower the seat bar and engage the parking brake
[Figure 104].
Put the foot pedals, if equipped, in NEUTRAL position.
NOTE: Keep your hands on the steering controls and
your feet on the foot pedals (or footrests)
while operating the loader.
WARNING
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the pedal controls or footrests
and hands on the controls.
W-2261-0909
P-90491A
1
P-85815A
1
P-85812A
2
P-85452A
