5 S850 Operation & Maintenance Manual

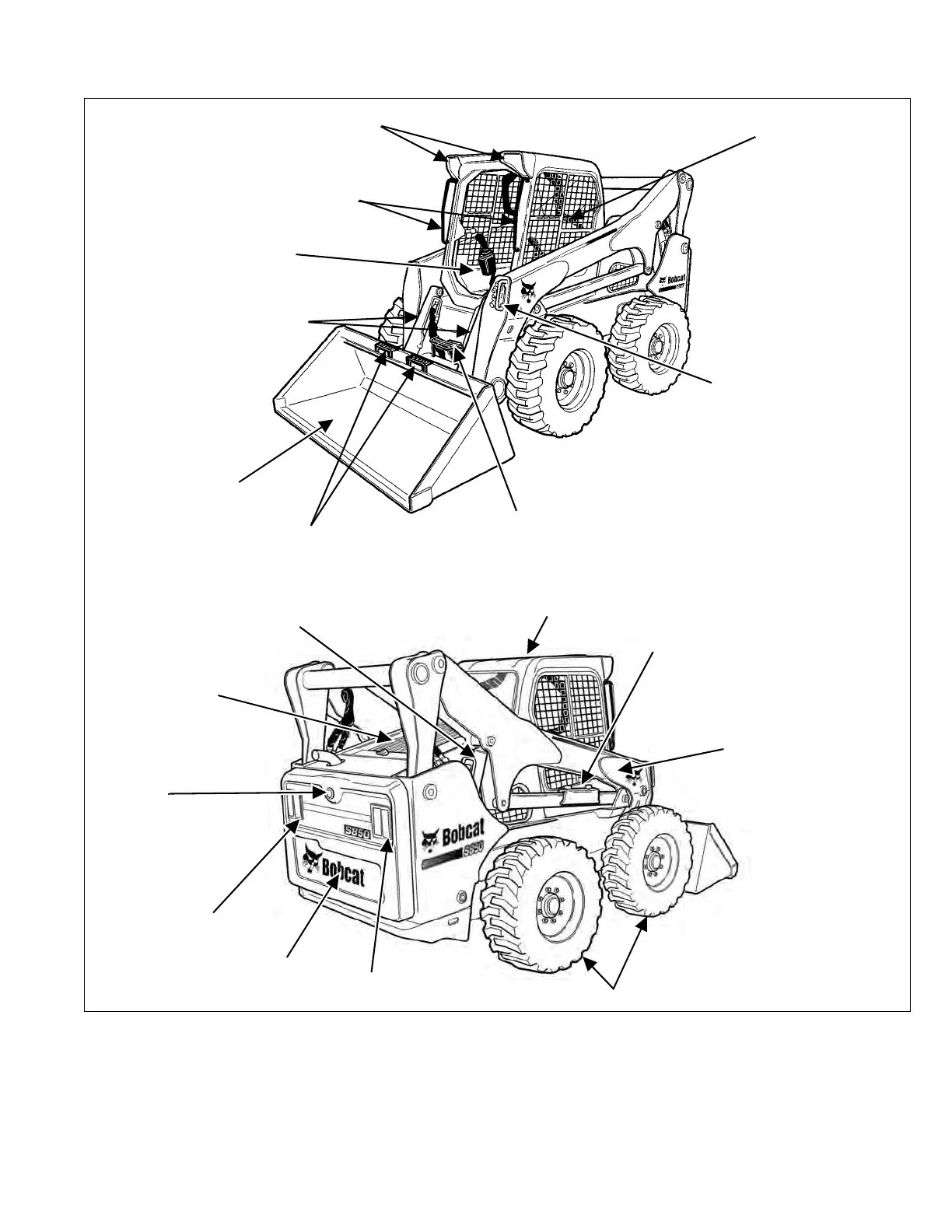

LOADER IDENTIFICATION
[1] BUCKETS - Several different buckets and other attachments are available for the Bobcat loader.
[2] ROPS - Roll-Over Protective Structure per ISO 3471 and FOPS - Falling-Object Protective Structure per ISO
3449, Level I. Level II is available.
[3] TIRES - Standard tires are shown. Several different tire styles and sizes are available for the Bobcat loader.
FRONT
LIGHTS
GRAB
HANDLES
OPERATOR SEAT
with SEAT BELT
AND SEAT BAR
TILT
CYLINDERS
[1] BUCKET
STEP
LIFT ARM
[3] TIRES
REAR
GRILLE
BUCKET
STEPS
FRONT AUXILIARY
QUICK COUPLERS
TAIL LIGHT
REAR
DOOR
REAR
LIGHT
[2] OPERATOR CAB
(ROPS AND FOPS)
NA1820
NA1821
LIFT
CYLINDER
LIFT ARM
SUPPORT DEVICE
OPERATION &
MAINTENANCE
MANUAL AND
OPERATOR’S
HANDBOOK
BACK-UP
ALARM
