139 S850 Operation & Maintenance Manual
ELECTRICAL SYSTEM (CONT’D)
Using A Booster Battery (Jump Starting)
If it is necessary to use a booster battery to start the
e
ngine, BE CAREFUL! There must be one person in the
operator’s seat and one person to connect and
disconnect the battery cables.
The key switch must be OFF or the STOP button must be
p
ressed. The booster battery must be 12 volt.
BATTERY GAS CAN EXPLODE AND CAUSE
SERIOUS INJURY OR DEATH
Keep arcs, sparks, flames and lighted tobacco away
from batteries. When jumping from booster battery
make final connection (negative) at machine frame.
Do not jump start or charge a frozen or damaged
battery. Warm battery to 16°C (60°F) before
connecting to a charger. Unplug charger before
connecting or disconnecting cables to battery. Never
lean over battery while boosting, testing or charging.
W-2066-0910

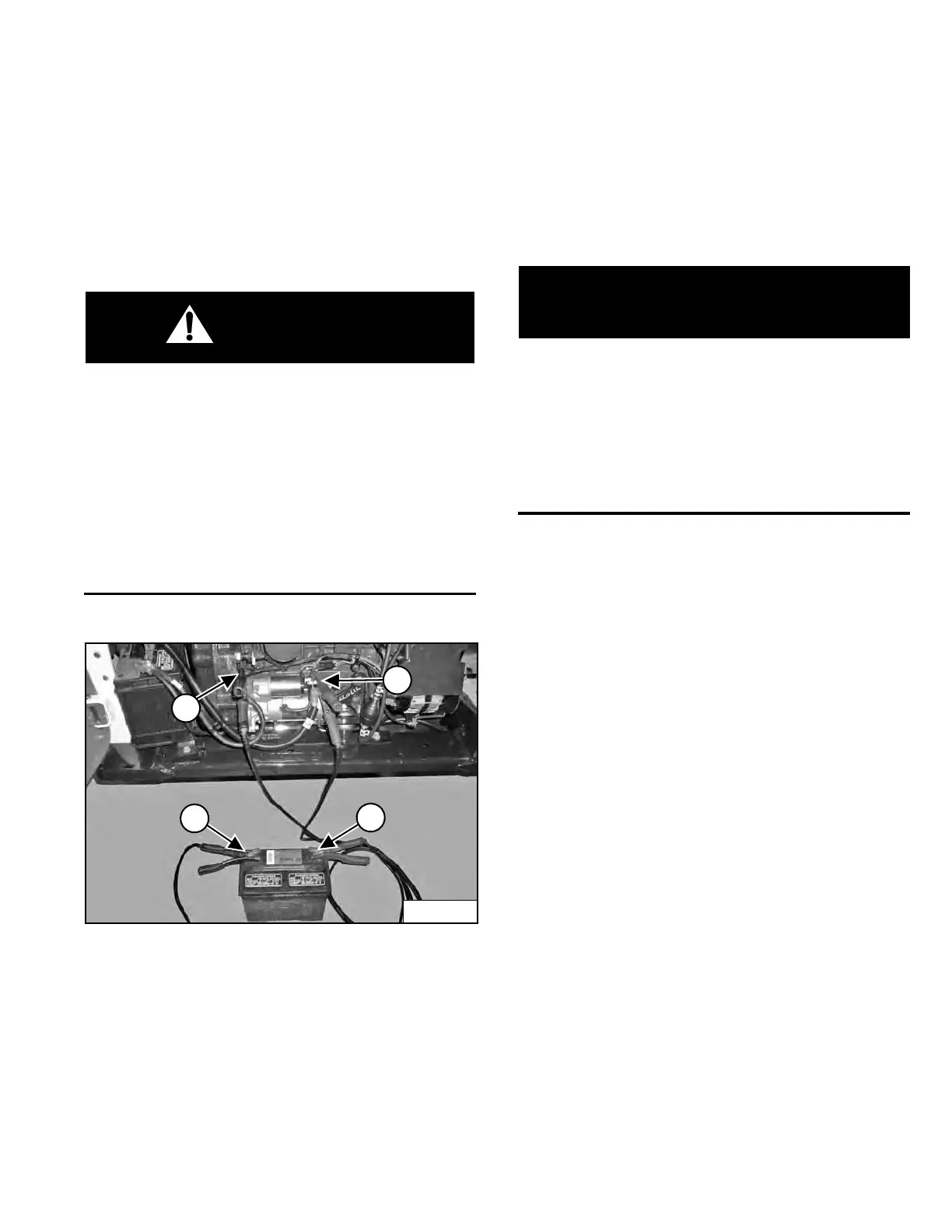

Figure 223
Connect the end of the first cable (Item 1) [Figure 223] to
the positive (+) terminal of the booster battery. Connect
th
e other end of the same cable (Item 2) [Figure 223] to
the positive terminal on the loader starter.
Connect the end of the second cable (Item 3)
[Figure 223] to the negative terminal of the booster
battery. Connect the other end of the same cable (Item 4)
[Figure 223] to the engine.
Keep cables away from moving parts. Start the engine.
(See STARTING THE ENGINE on Page 80.)
After the engine has started, remove the negative (-)
cab
le (Item 4) [Figure 223] first. Remove the cable from
the positive terminal (Item 2) [Figure 223].
Damage to the alternator can occur if:
• Engine is operated with battery cables
disconnected.
• Battery cables are connected when using a fast
charger or when welding on the loader. (Remove
both cables from the battery.)
• Extra battery cables (booster cables) are
connected wrong.
I-2023-1285
