LIFT ARM BYPASS CONTROL
Operation
Figure 36

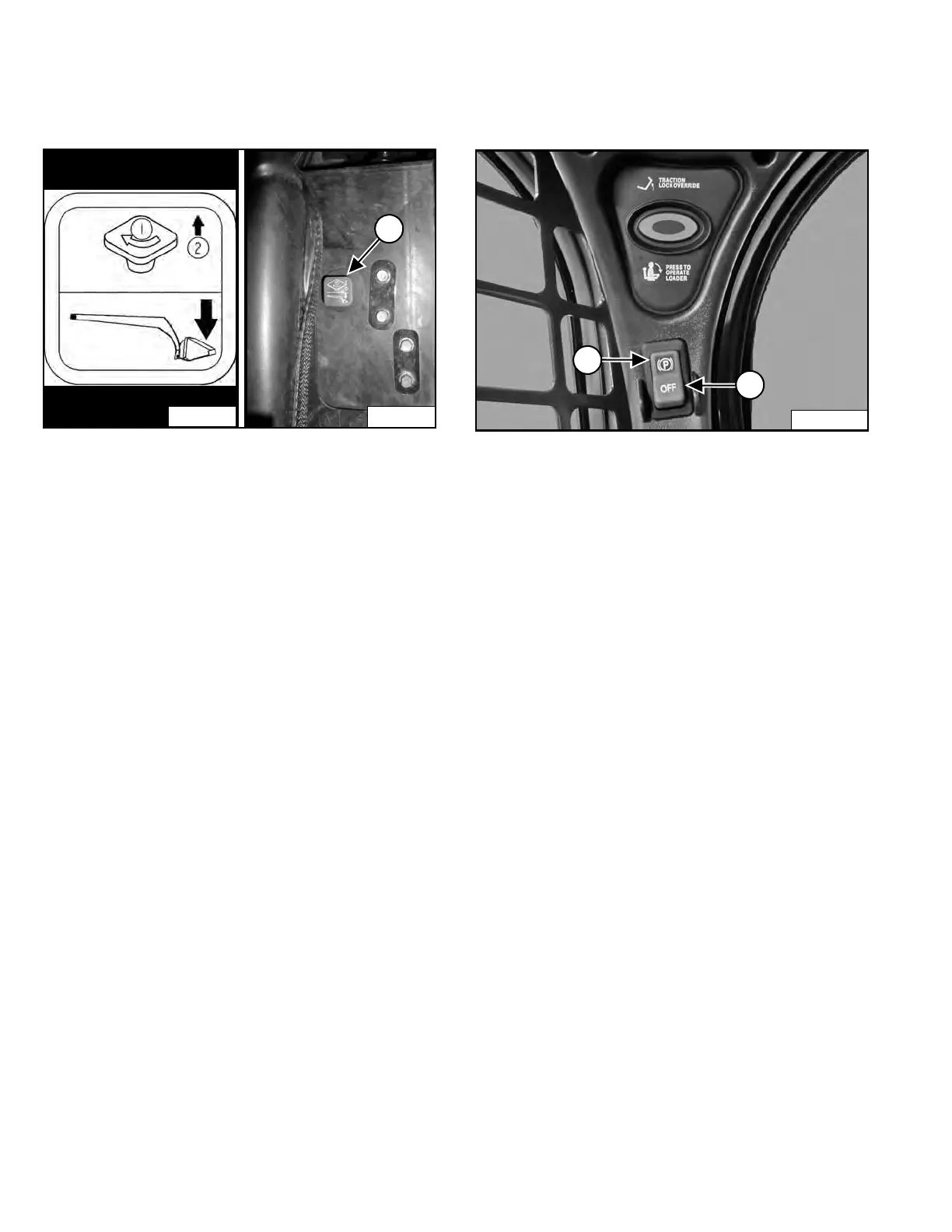

The Lift Arm Bypass Control (Item 1) [Figure 36], located
to the right of the operator’s seat, is used to lower the lift
a
rms if the lift arms cannot be lowered during normal
operations.
1. Sit in the operator's seat.
2
. Fasten the seat belt and lower the seat bar.
3. Turn the knob (Item 1) [Figure 36] 90° clockwise.
4. Pull up and hold the knob until the lift arms lower.
PARKING BRAKE
Operation
Figure 37
Press the top of the switch (Item 1) [Figure 37] to
engage the parking brake. The red
light in the switch will
turn on. The traction drive system will be locked.
Move steering levers or joystick(s) slowly forward and
ba
ckward. The TRACTION lock must be engaged. See
your Bobcat dealer for service if loader fails to stop.
Press the bottom of the switch (Item 2) [Figure 37] to
disengage the parking brake. The red light in the switch
will tur
n off. The traction drive system will be unlocked.
NOTE: The PARKING BRAKE light on the left
instrument panel will remain ON until the
engine is started, the PRESS TO OPERATE
LOADER button is pressed and the parking
brake is disengaged.
