PRE-STARTING PROCEDURE (CONT’D)
Seat Adjustment

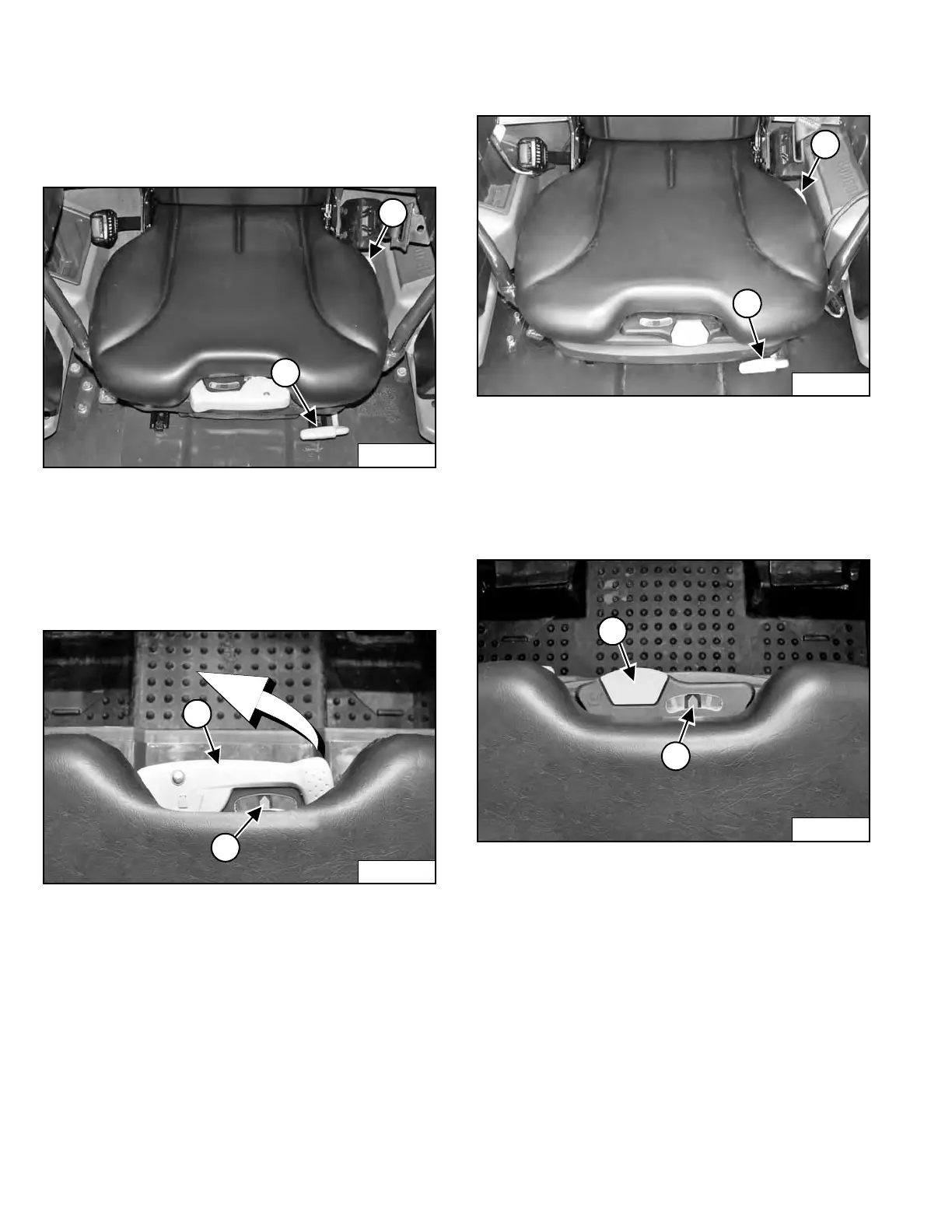

Suspension Seat
Figure 98
Pull the lever (Item 1) [Figure 98] up to adjust the angle
of the seat back.
Pull the lever (Item 2) [Figure 98] up to adjust the seat
position for comfortable operation of the loader controls.
Figure 99
The lever (Item 1) is used to adjust the suspension
r
esponse of the seat depending on the operator’s weight.
The optimum setting is achieved with the needle (Item 2)
[Figure 99] centered in the gauge with the operator
normally seated.
Pivot the lever out fully to adjust the setting. Pump lever
b
etween middle and upper positions to move the needle
to the right. Pump lever between middle and lower
positions to move the needle to the left. Return lever to
the middle position and pivot lever back fully to lock in
setting.
Air Ride Suspension Seat (Option)
Figur
e 100
Pull the lever (Item 1) [Figure 100] up to adjust the angle
of the seat back.
Pull the lever (Item 2) [Figure 100] up to adjust the seat
position for comfortable operation of the loader controls.
Figure 101
The lever (Item 1) is used to adjust the suspension
r
esponse of the seat depending on the operator’s weight.
The optimum setting is achieved with the needle (Item 2)
[Figure 101] centered in the gauge with the operator
normally seated.
Pull the lever (Item 1) [Figure 101] up and hold to
increase the amount of air in the seat suspension. Push
t
he lever down and hold to decrease the amount of air in
the seat suspension.
NOTE: The loader electrical system must be turned
ON to increase the amount of air in the seat
suspension.
