Bobcat S850 - Selectable Joystick Controls (SJC) In ‘ISO’ Control Pattern; Selectable Joystick Controls (SJC) In ‘H’ Control Pattern

65 S850 Operation & Maintenance Manual
HYDRAULIC CONTROLS (CONT’D)
Selectable Joystick Controls (SJC) In ‘ISO’ Control
Pattern

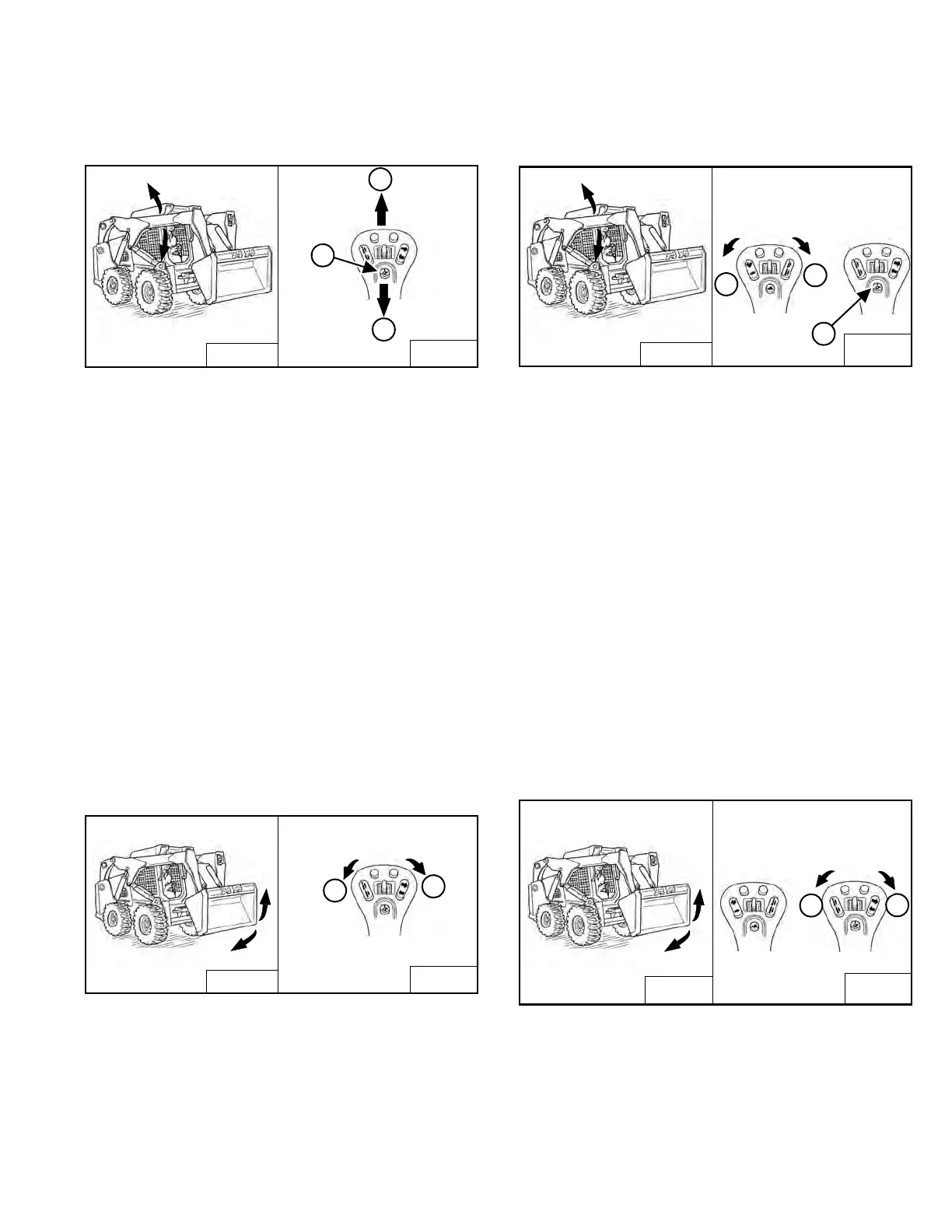

Figure 75
Lift Arm Operation - (Right Hand Joystick)
Move the joystick backward (Item 1) [Figure 75] to
raise the lift arms.
Move the joystick forward (Item 2) [Figure 75] to
lower the lift arms.
Lift Arm Float Position - (Right Hand Joystick)
Press and hold the Float button (Item 3) [Figure 75]
while the joystick is in NEUTRAL. Move the joystick to
lift arm down position (Item 2) [Figure 75], then
release the button.
Press Float button (Item 3) again or move the joystick
to lift arm up position (Item 1) [Figure 75] to
disengage.
Use the float position of the lift arms to level loose
material while driving backward.
Figure 76
Tilt Operation - (Right Hand Joystick)
Move the joystick inward (Item 1) [Figure 76] to tilt
the bucket backward.
Move the joystick outward (Item 2) [Figure 76] to tilt
the bucket forward.
Selectable Joystick Controls (SJC) In ‘H’ Control
Pattern
Figure 77
Lift Arm Operation - (Left Hand Joystick)
Move the joystick outward (Item 1) [Figure 77] to
raise the lift arms.
Move the joystick inward (Item 2) [Figure 77] to lower
the lift arms.
Lift Arm Float Position - (Left And Right Hand Joysticks)
Press and hold the Float button (Item 3) [Figure 77]
while the joysticks are in NEUTRAL. Move the left
joystick to lift arm down position (Item 2) [Figure 77],
then release the button.
Press Float button (Item 3) again or move the left
joystick to lift arm up position (Item 1) [Figure 77] to
disengage.
Use the float position of the lift arms to level loose
material while driving backward.
Figure 78
Tilt Operation - (Right Hand Joystick)
Move the joystick inward (Item 1) [Figure 78] to tilt
the bucket backward.
Move the joystick outward (Item 2) [Figure 78] to tilt
the bucket forward.
NA1681
B-15781
3
2
1
Right Joystick
NA1681
B-15781
2
1
Right Joystick
NA1681
B-19873
B-19874
1
2
3
Right
Joystick
Left
Joystick
NA1681
B-19873
B-19874
2
1
Left
Joystick
Right
Joystick
