LIFT ARM SUPPORT DEVICE
Installing
Never work on a machine with the lift arms up unless
the lift arms are secured by an approved lift arm
support device. Failure to use an approved lift arm
support device can allow the lift arms or attachment
to fall and cause injury or death.
Service lift arm support device if damaged or if parts
are missing. Using a damaged lift arm support or
with missing parts can cause lift arms to drop
causing injury or death.
W-2572-0407
P-90328
AVOID DEATH
• Disconnecting or loosening any hydraulic
tubeline, hose, fitting, component or a part failure
can cause lift arms to drop.
• Keep out of this area when lift arms are raised
unless supported by an approved lift arm
support. Replace if damaged.
D-1009-0409
Remove attachment from the loader. (See Installing And
Removing The Attachment (Hand Lever Bob-Tach) on
Page 91.) OR (See Installing And Remo
ving The
Attachment (Power Bob-Tach) on Page 93.)

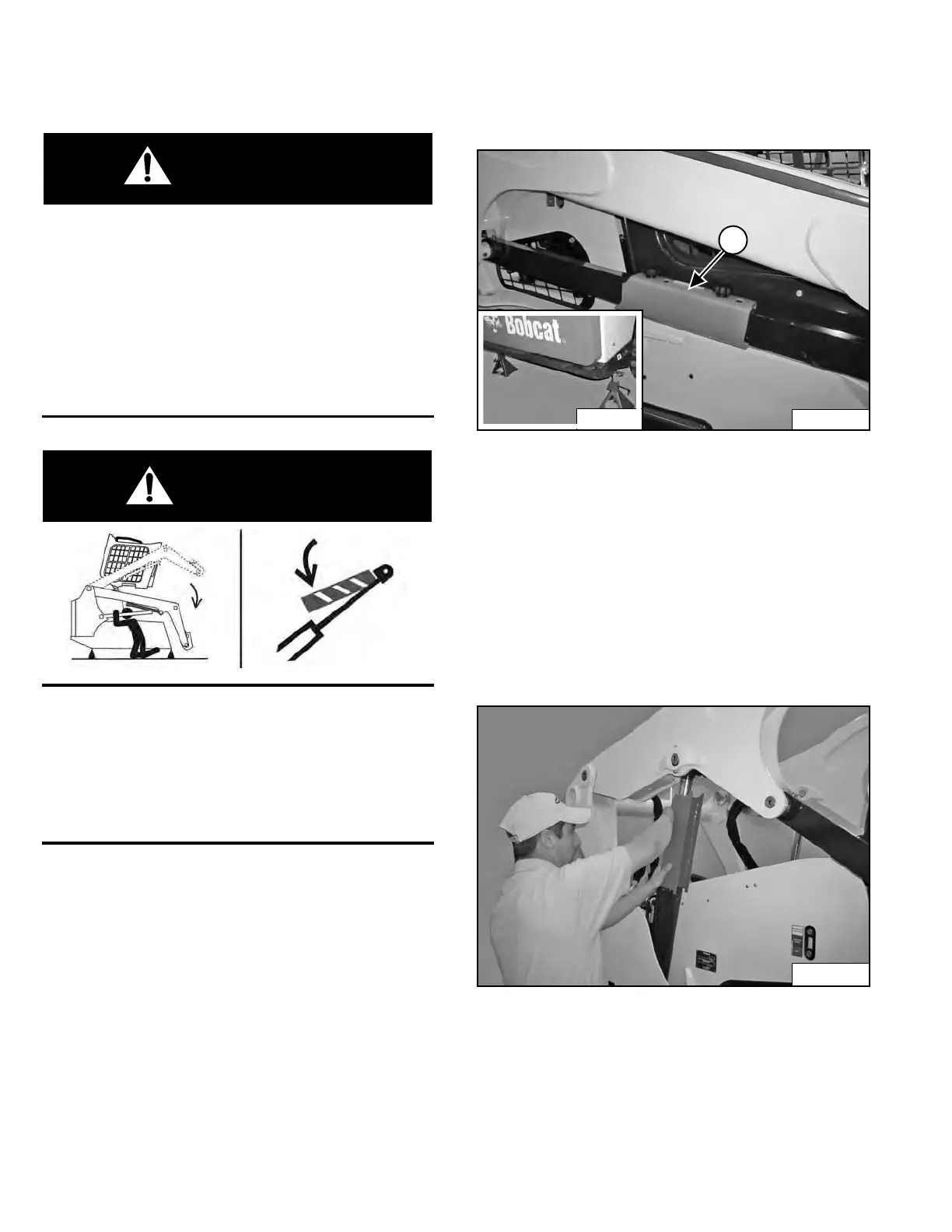

Figure 154
Put jackstands under the rear corners of the loader frame
(I
nset) [Figure 154].
Remove the lift arm support device (Item 1) [Figure 154]
from the storage position.
The operator must stay in the operator seat with the seat
be
lt fastened and the seat bar lowered until the lift arm
support device is installed.
Start the engine and raise the lift arms all the way up.
Figure 155
Have a second person install the lift arm support device
o
ver the rod of one of the lift cylinders [Figure 155].
The lift arm support device must be tight against the
cylin
der rod.
