Bobcat S850 - Removing and Replacing Hydraulic Fluid

142 S850 Operation & Maintenance Manual
HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Removing And Replacing Hydraulic Fluid
For the correct service interval (See SERVICE
SCHEDULE on Page 106.)
Replace the fluid if it becomes contaminated or after
m
ajor repair.
Always replace the hydraulic / hydrostatic filter and the
h
ydraulic charge filter whenever the hydraulic fluid is
replaced. (See Removing And Replacing Hydraulic /
Hydrostatic Filter (Earlier Models) on Page 145.) and
(See Removing And Replacing H
ydraulic Charge Filter
on Page 147.)
Stop the engine and remo
ve the rear grille. (See REAR
GRILLE on Page 117.)

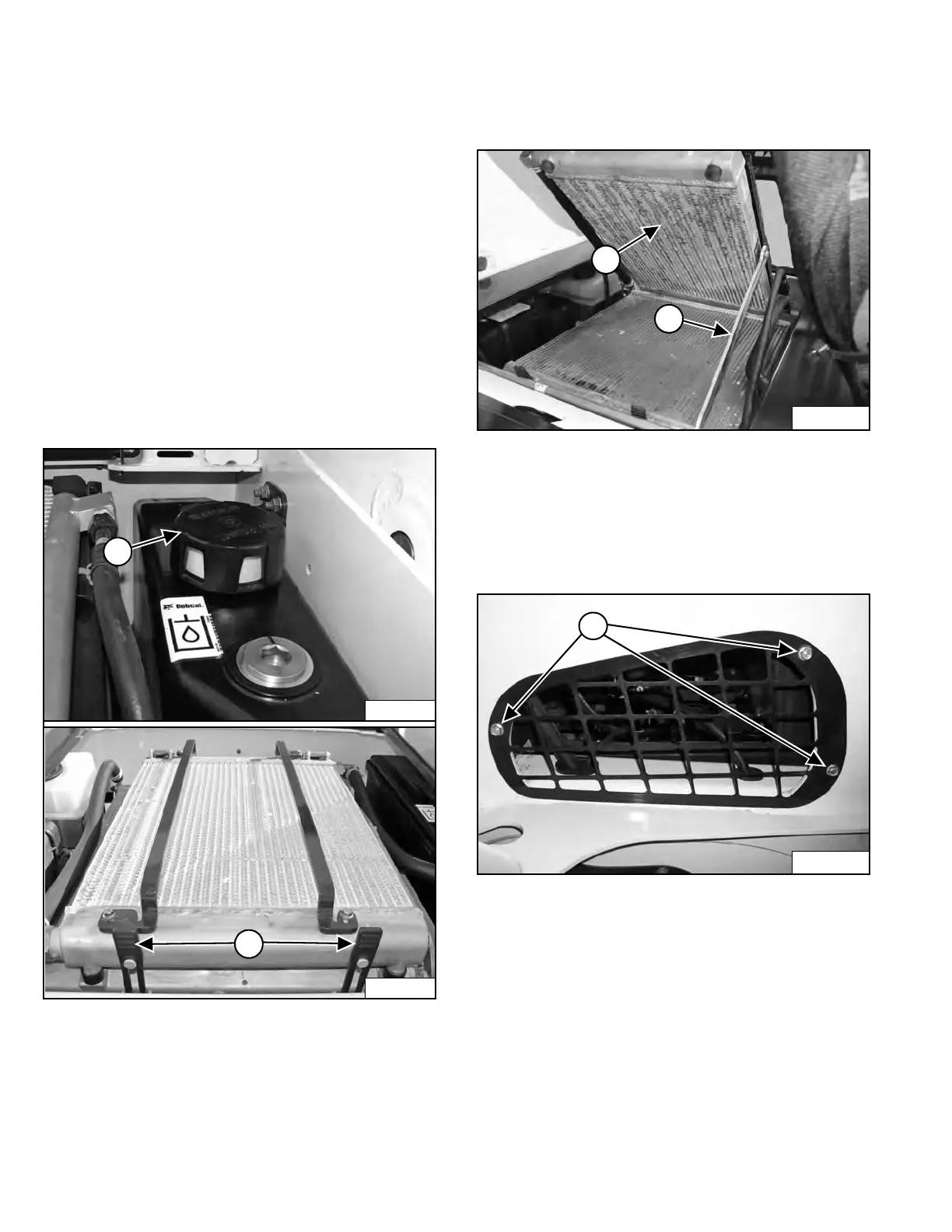

Figure 229
Remove the hydraulic fill cap (Item 1) [Figure 229].
(Earlier models with separate hydraulic fluid cooler
a
nd radiator) - Unhook the two rubber straps (Item 2)
[Figure 229].
Figure 230
(Earlier models with separate hydraulic fluid cooler
an
d radiator) - Raise the hydraulic fluid cooler (Item 1)
until the support bar (Item 2) [Figure 230] drops into
place to support the hydraulic fluid cooler. This will aid in
dr
aining the hydraulic fluid.
Figure 231
Remove the right side access cover bolts (Item 1)
[Figure 231] and remove the cover. (Lift arms shown
raised for visual clarity.)
2
P100779
1
P121074A
P100327
1
2
P100033
1
