MONITORING THE DISPLAY PANELS
Left Panel

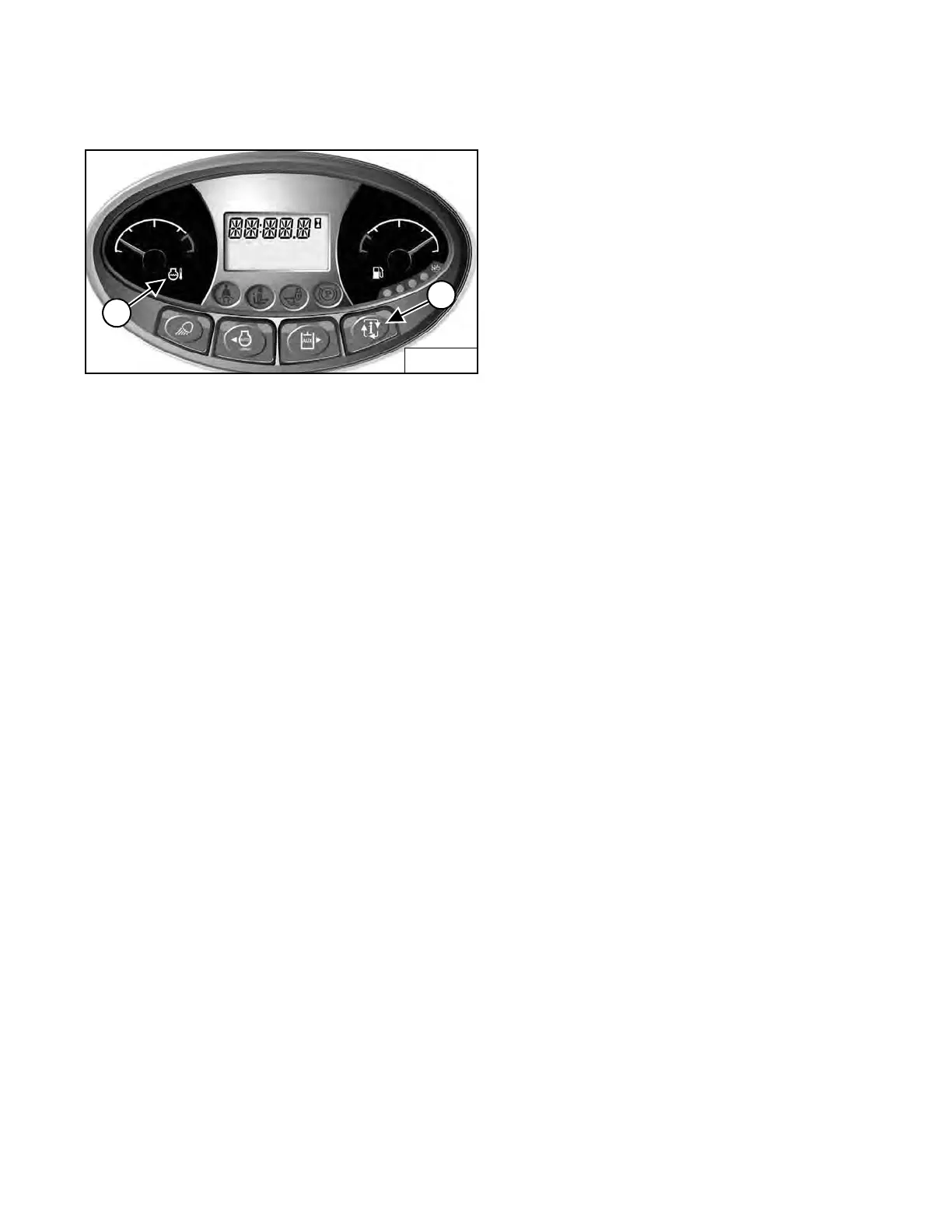

Figure 120
Frequently monitor the temperature and fuel gauges and
BI
CS™ lights (all BICS™ lights must be OFF to operate
loader) [Figure 120].
After the engine is running, frequently monitor the left
in
strument panel [Figure 120] for machine condition.
The associated icon will be ON if there is an
error
condition.
EXAMPLE: Eng
ine Coolant Temperature is High.
The Engine Over-Temperature icon (Item 1) [Figure 120]
will be ON.
Press the Information button (Item 2) [Figure 120] to
cycle the data display until the ser
vice code screen is
displayed. One of the following SERVICE CODES will be
displayed.
• [
M0810] Engine Coolant Temperature High
• [M0811] Engine Coolant Temperature Extremely
High
Find the cause of the error code and correct before
o
perating the loader again. (See Service Codes List on
Page 168.)
Warning And Shutdown
When a WARNING condition exists, the associated icon
light will come ON
and there will be 3 beeps from the
alarm. If this condition is allowed to continue, there may
be damage to the engine or loader hydraulic systems.
When a SHUTDOWN condition exists, the associated
icon
light will come ON and there will be a continuous
beep from the alarm. The monitoring system will
automatically stop the engine in 15 seconds. The engine
can be restarted to move or relocate the loader.
The SHUTDOWN feature is associated with the following
icons
:
General Warning
Engine Malfunction
Engine Coolant Temperature
Hydraulic System Malfunction
