54 S850 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER (CONT’D)
Operation (SJC) In ‘H’ Control Pattern

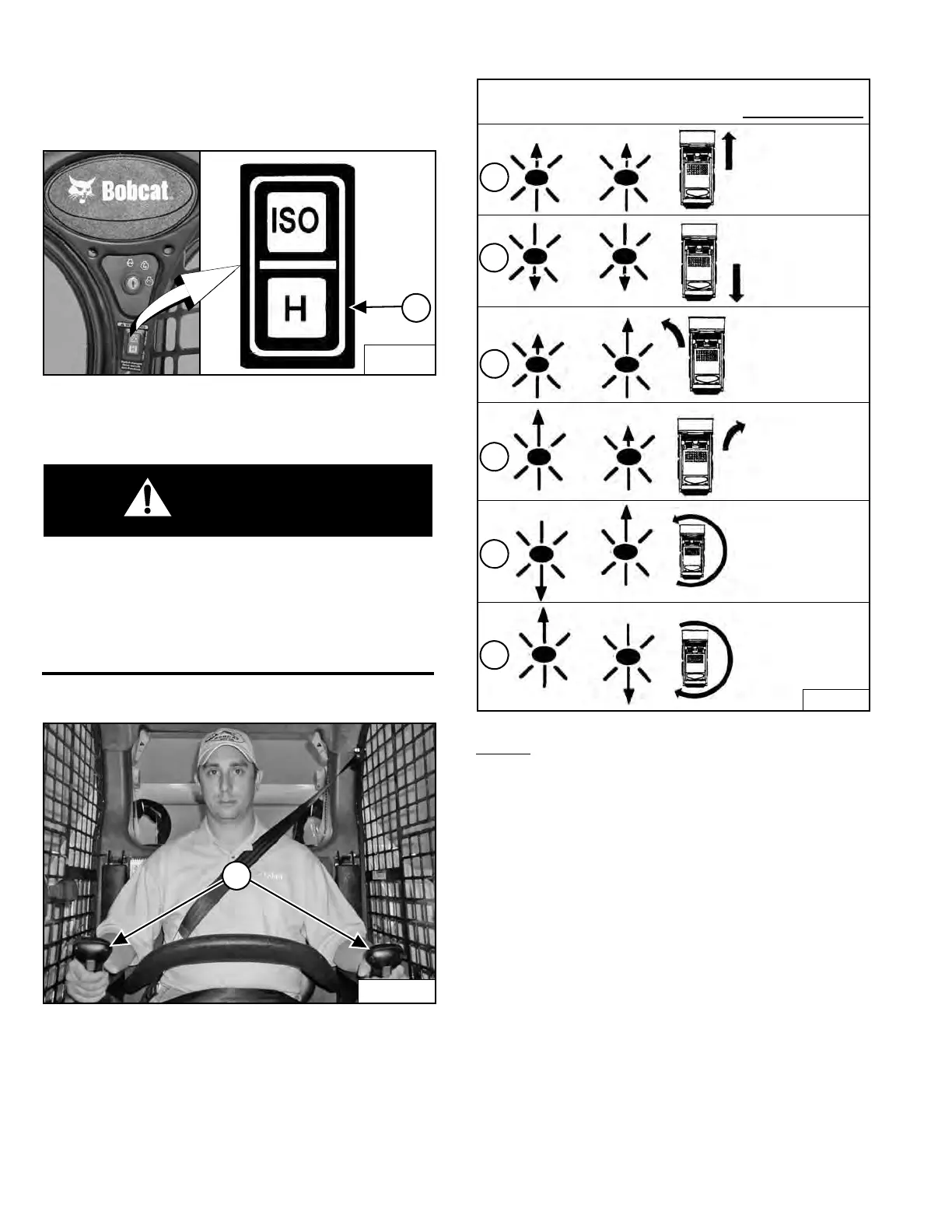

Figure 60
Select the ‘H’ control pattern b
y pressing the bottom of
the switch (Item 1) [Figure 60].
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure 61
Both joysticks control drive and steering and are located
on the left and right side in front of the seat (Item 1)
[Figure 61].
Move the joysticks smoothly. Avoid sudden starting and
st
opping.
Figure 62
Joystick Functions (Drive And Steering) [Figure 62].
1. For
ward Travel - Move both joysticks forward.
2. Backward Travel - Move both joysticks backward.
3. Forward Left Turn - Move the right joystick farther
forward than the left joystick.
4. Forward Right Turn - Move the left joystick farther
forward than the right joystick.
5. Left Fast Turn - Move the left joystick backward and
the right joystick forward.
6. Right Fast Turn - Move the left joystick forward and
the right joystick backward.
STOPPING THE LOADER
Using The Steering Handles Or Joysticks
When the steering handles or joysticks are moved to the
NEU
TRAL position, the hydrostatic transmission will act
as a service brake to stop the loader.
B-22029A
1
2
3
4
5
6
N
N
NN
N
N
N
N
N
N
N
N
SJC in ‘H’
Control Pattern
Left
Joystick
Right
Joystick
FORWARD
BACKWARD
LEFT
TURN
RIGHT
TURN
LEFT
FAST
TURN
RIGHT
FAST
TURN
