Bobcat S850 - Bob-Tach (Power) Inspection and Maintenance

162 S850 Operation & Maintenance Manual
PIVOT PINS
Inspection And Maintenance

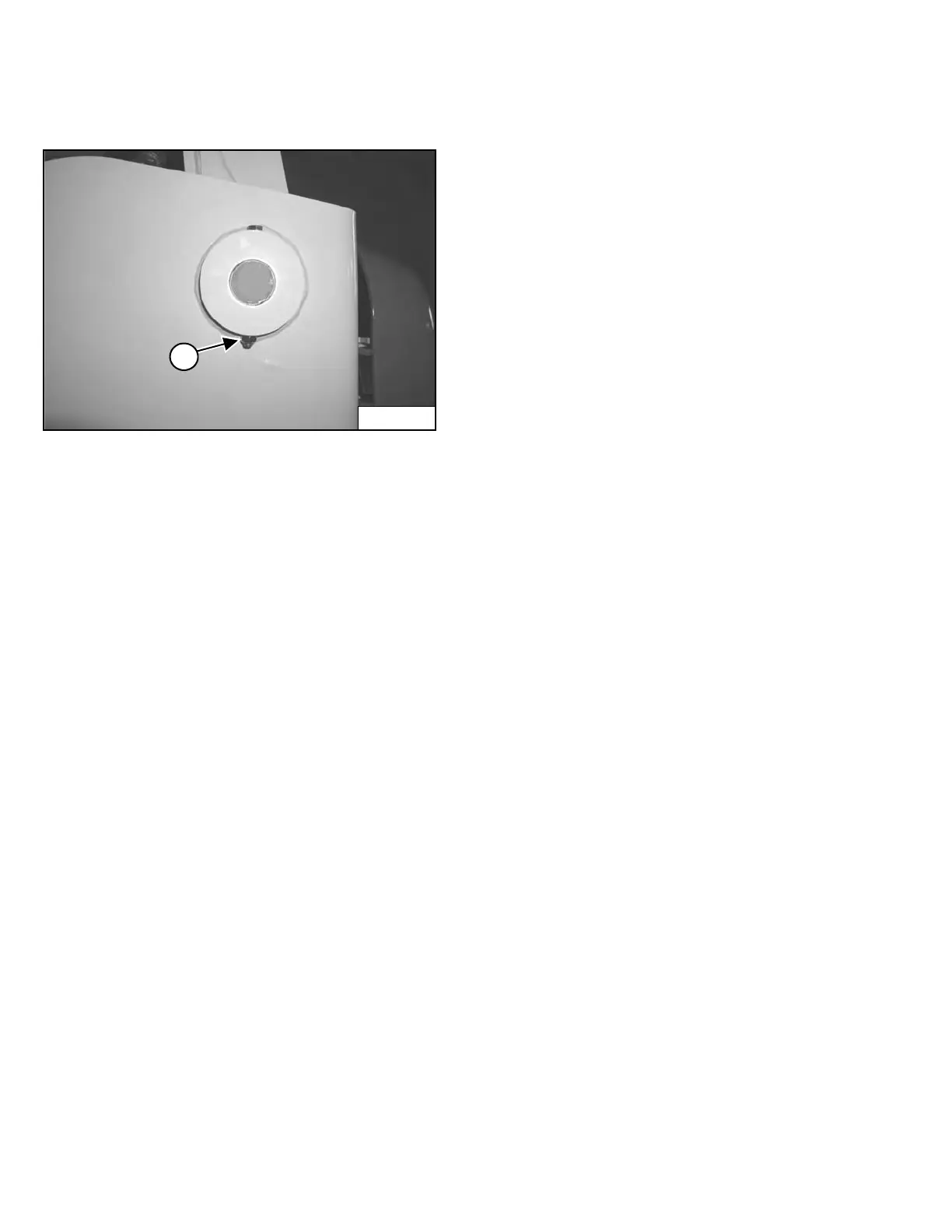

Figure 276
All lift arm and cylinder pivots have a large pin held in
po
sition with a retainer bolt and lock nut (Item 1)
[Figure 276].
Check that the lock nuts are tightened to 48 - 54 N•m (35
- 40
ft-lb) torque.
P-90667
1
