Bobcat S850 - System Setup and Analysis

164 S850 Operation & Maintenance Manual
BOB-TACH (POWER)
This machine may be equipped with a Power Bob-Tach.
Inspection And Maintenance

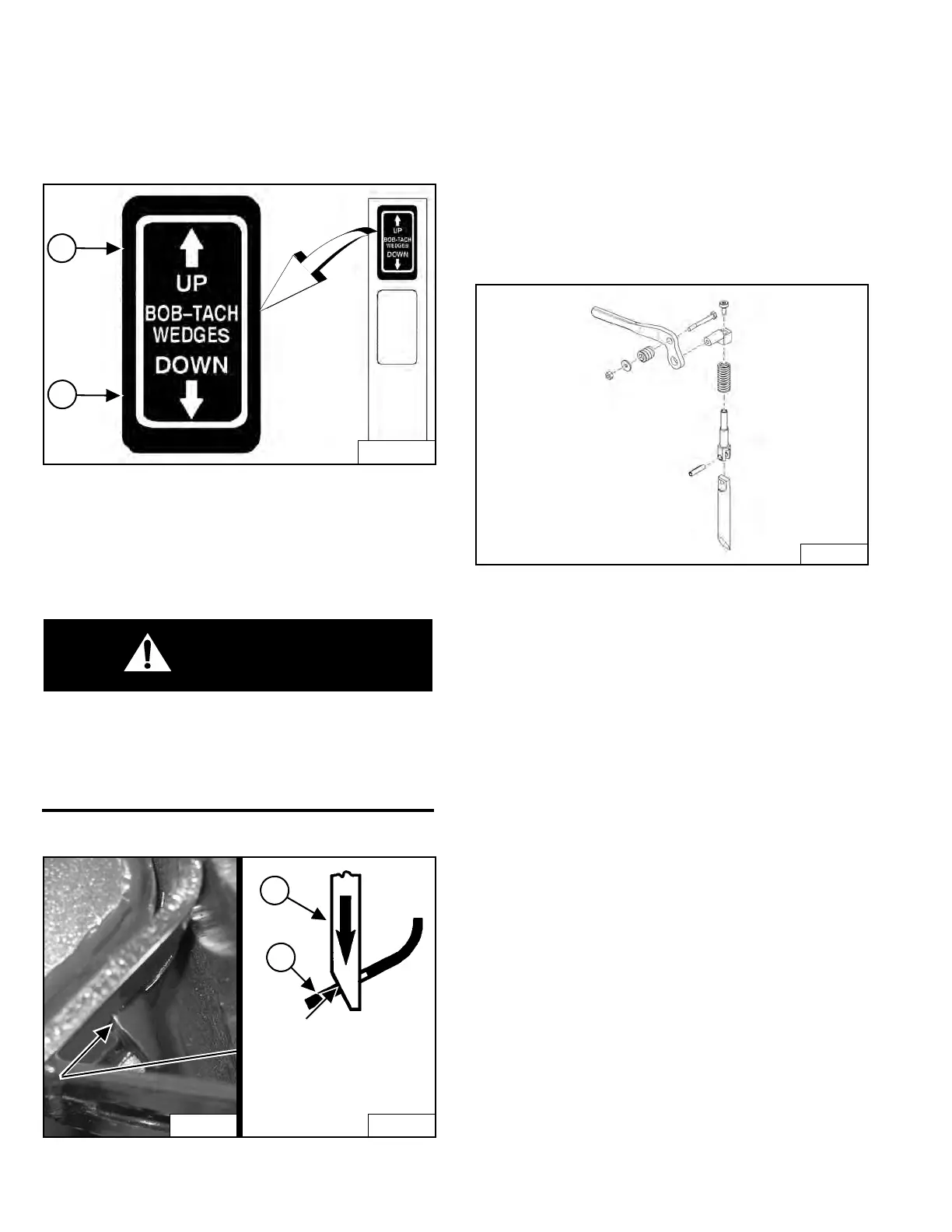

Figu
re 280
Push and hold the BOB-TACH “WEDGES UP” switch
(
Item 1) until wedges are fully raised. Push and hold the
BOB-TACH “WEDGES DOWN” switch (Item 2)
[Figure 280] until the wedges are fully down.
The levers and wedges must move freely.
WARNING
AVOID INJURY OR DEATH
The Bob-Tach wedges must extend through the holes
in the attachment mounting frame. Levers must be
fully down and locked. Failure to secure wedges can
allow attachment to come off.
W-2715-0208
Figure 281
The wedges (Item 1) [Figure 281] must extend through
the holes in the attachment mounting frame.
The spring loaded wedges (Item 1) must contact the
lo
wer edge of the holes in the attachment mounting
frame (Item 2) [Figure 281].
If the wedges do not contact the lower edge of the holes
[Figure 281], the attachment will be
loose and can come
off the Bob-Tach.
Figure 282
Inspect the mounting frame on the attachment and Bob-
T
ach, linkages and wedges for excessive wear or
damage [Figure 282]. Replace any parts that are
damaged, bent or missing. Keep all fasteners tight.
Look for cracked welds. Contact your Bobcat dealer for
r
epair or replacement parts.
Lubricate the wedges. (See SERVICE SCHEDULE on
Page 106.) and (See LUBRICATING THE LOADER on
Page 159.)
P-85320A
1
2
P-31233A
P-31233
2
1
Wedge must contact
lower edge of hole in the
attachment mounting
frame.
NA13065S
166 of 210
