55 S850 Operation & Maintenance Manual
TWO-SPEED CONTROL
Description
This machine is equipped with two speed ranges, high
a
nd low range. High range allows you to reduce cycle
times when there is a long travel distance between the
dig site and the dump site. You can also use the high
range when traveling from one job site to another at
faster speeds.
HITTING OBSTRUCTIONS AT HIGH RANGE SPEEDS
CAN CAUSE SERIOUS INJURY OR DEATH
Fasten shoulder belt for additional restraint when
operating at high range speeds.
W-2754-0908

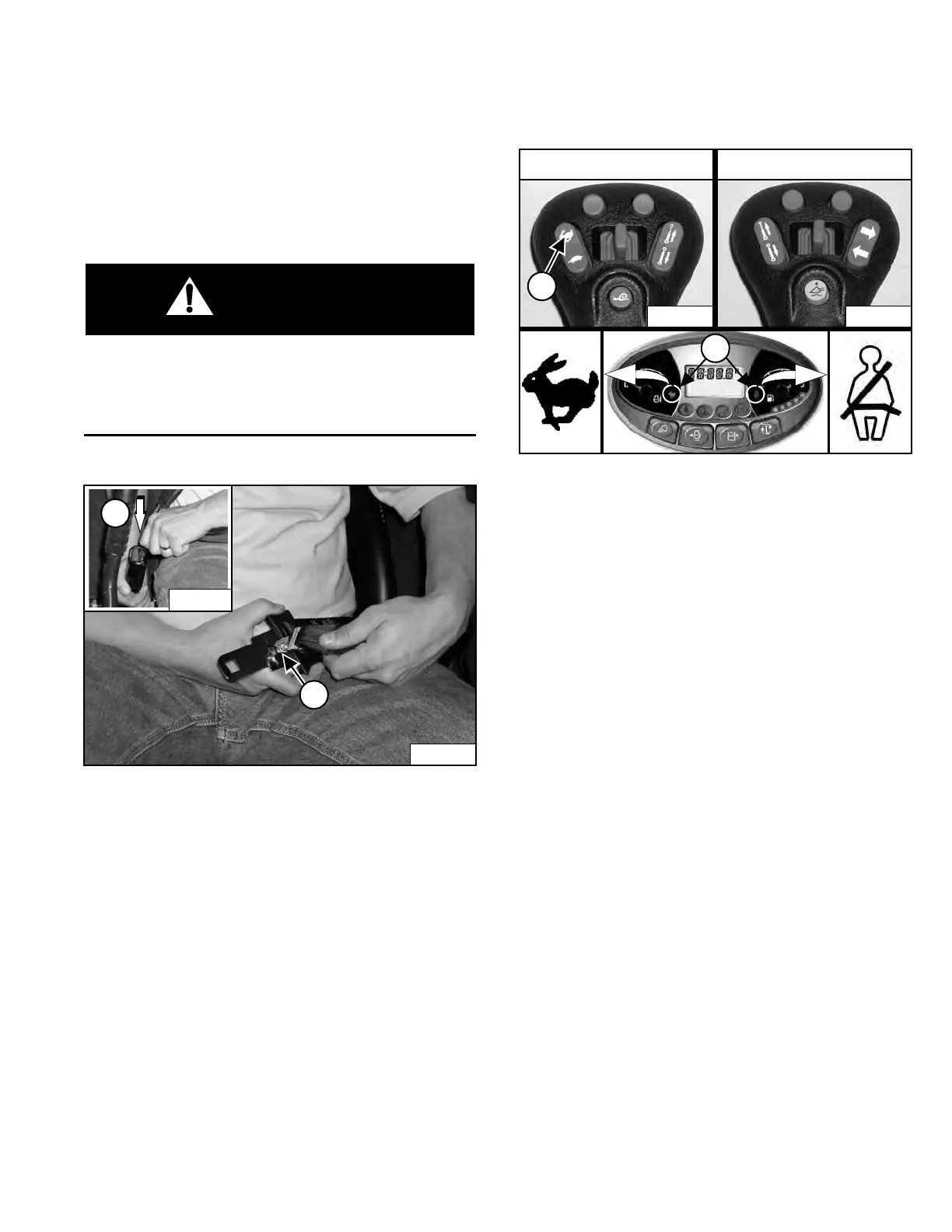

Figure 63
NOTE: The 3-point restraint must be used when
selecting high range operation [Figure 63].
Connect the shoulder belt to the lap belt (Item 1)
[Figure 63]. Pull the lap belt across to the right side of
the seat and fasten (Item 2) [Figure 63].
The shoulder belt must be positioned over your left
shoulder and lap belt over your lower hips
[Figure 63]
.
Operation
Figure 64
NOTE: You must disengage Speed Management
before you can select high range.
Press the top of the switch (Item 1) on the left control for
hig
h range. The two-speed and shoulder belt icons
located on the left instrument panel (Item 2) [Figure 64]
will come on.
Press the bottom of the switch for low range.
