ENGINE COOLING SYSTEM
Check the cooling system every day to prevent over-heating, loss of performance or engine damage.
Maintenance Platform

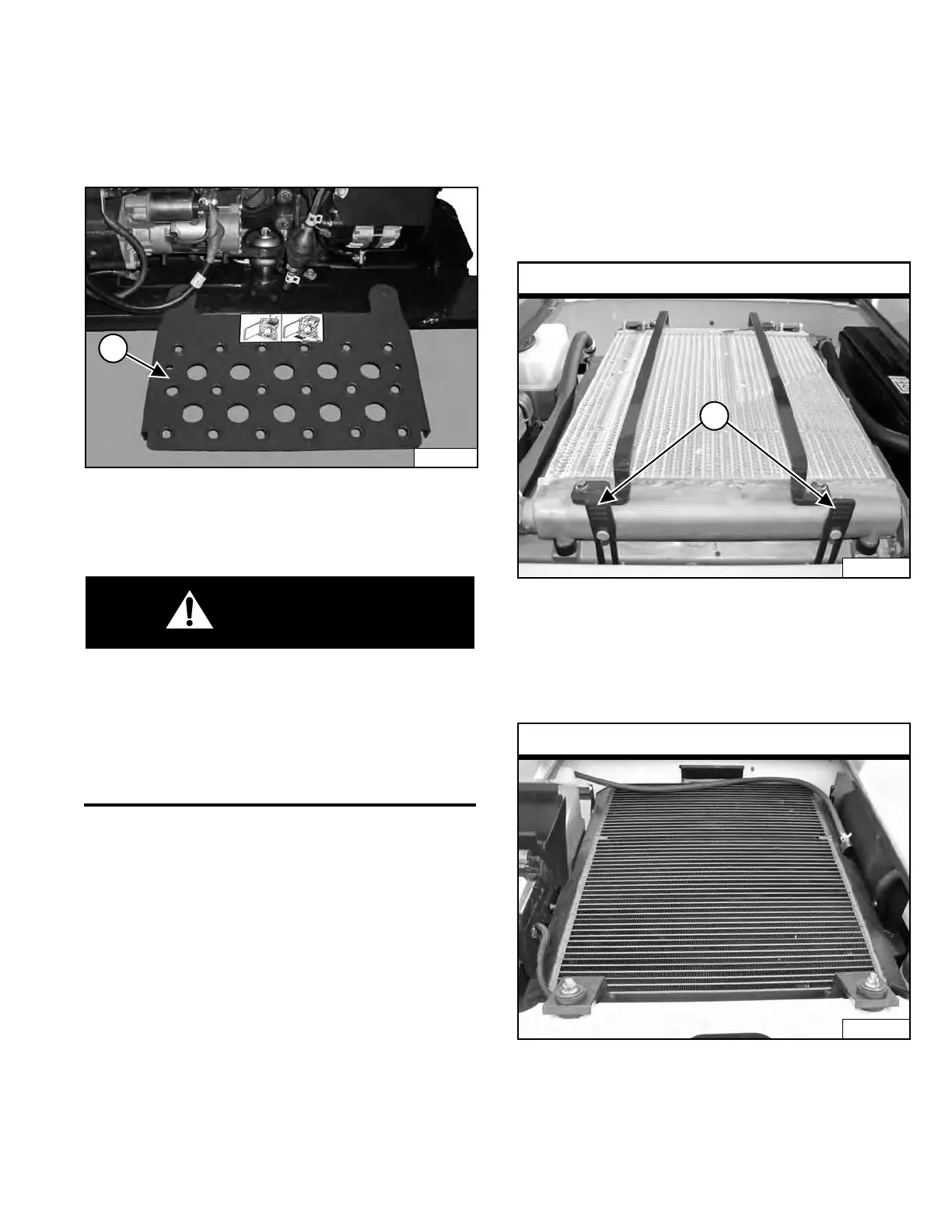

Figure 202
A maintenance platform (Item 1) [Figure 202] is available
from your Bobcat dealer to facilitate access when
clea
ning the engine cooling system.
WARNING
AVOID INJURY OR DEATH
Wear safety glasses to prevent eye injury when any
of the following conditions exist:
• When fluids are under pressure.
• Flying debris or loose material is present.
• Engine is running.
• Tools are being used.
W-2019-0907
Cooling System Identification
NOTE: Identification of the cooling system used on
your machine is necessary to perform the
correct cleaning procedure.
Figure 203
Earlier models have two rubber straps (Item 1)
[Figure 203] connecting the hydraulic fluid cooler and
the radiator. (Air conditioning condenser not shown for
vis
ual clarity.)
Figure 204
Later models have a combined hydraulic fluid cooler and
r
adiator assembly [Figure 204]. (Air conditioning
condenser not shown for visual clarity.)
P100039A
1
Earlier Model
P100779
1
Later Model
P115679A
