ENGINE COOLING SYSTEM (CONT’D)
Cleaning (Later Models)
See the SERVICE SCHEDULE f
or the correct service
interval. (See SERVICE SCHEDULE on Page 106.)
Stop the engine and remo
ve the rear grille. (See REAR
GRILLE on Page 117.)
WARNING
AVOID INJURY OR DEATH
Wear safety glasses to prevent eye injury when any
of the following conditions exist:
• When fluids are under pressure.
• Flying debris or loose material is present.
• Engine is running.
• Tools are being used.
W-2019-0907
Loaders With Air Conditioning

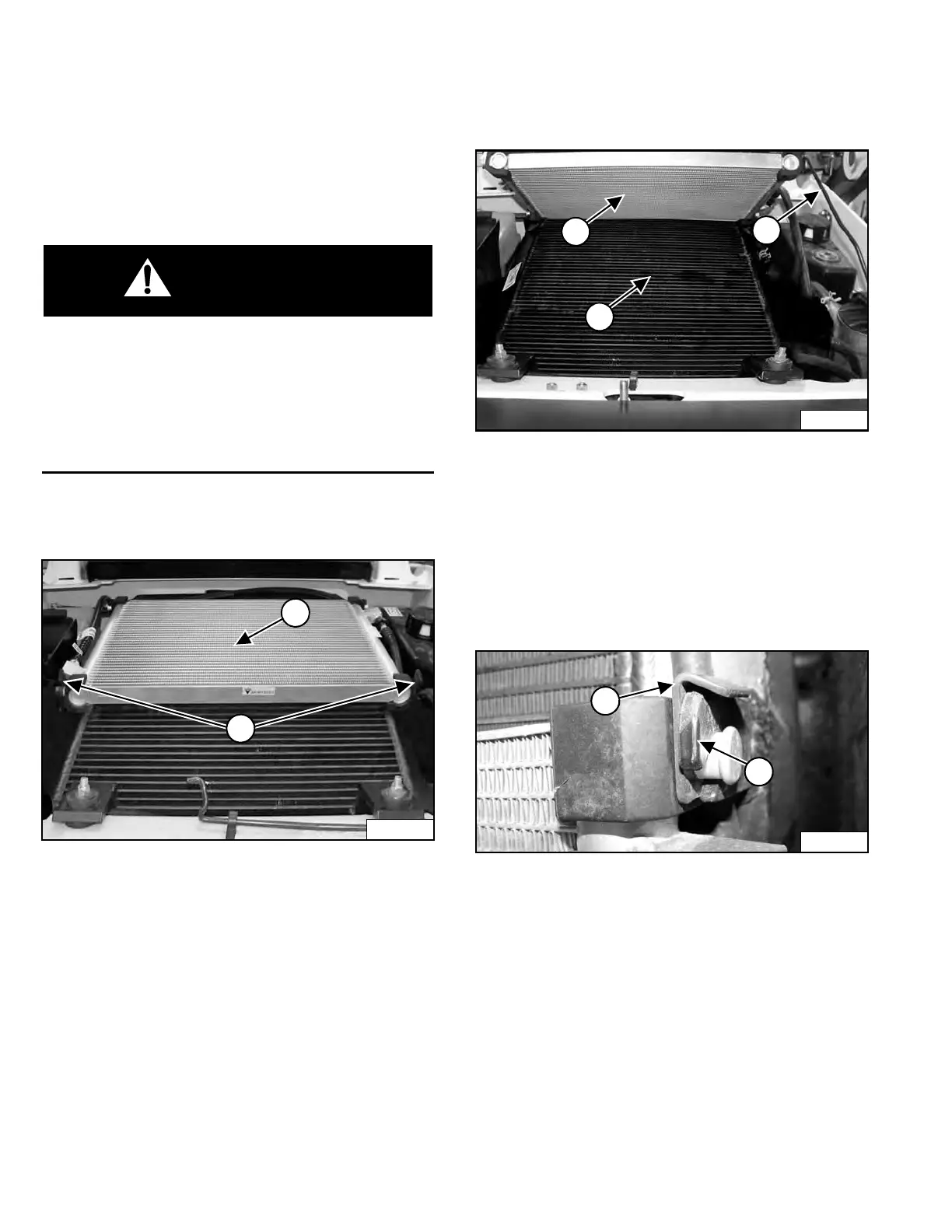

Figure 209
Use low air pressure or water pressure to clean the top of
the air conditioning condenser (Item 1) [Figure 209].
Unhook the two rubber straps (Item 2) [Figure 209].
NOTE: The air conditioning condenser fits into two
s
lotted brackets mounted on the hydraulic
fluid cooler and radiator assembly. Ensure the
air conditioning condenser remains
connected to the brackets when raising and
lowering.
Figure 210
Raise the air conditioning condenser (Item 1) and rotate
t
he support bar (Item 2) into position. Use low air
pressure or water pressure to clean the top of the
hydraulic fluid cooler and radiator assembly (Item 3)
[Figure 210].
Return the support bar to storage position and lower the
air
conditioning condenser.
Figure 211
Ensure the air conditioning condenser is installed into the
t
wo slotted brackets [Figure 211]. (Right side shown.)
Ensure the clips (Item 1) are properly installed over the
t
wo slotted brackets (Item 2) [Figure 211]. (Right side
shown.)
Fasten the two rubber straps [Figure 209].
NOTE: The air conditioning condenser can be lifted
out of the two slotted brackets by removing
the clips. This allows greater access to clean
the hydraulic fluid cooler and radiator
assembly.
P115681C
1
2
P121217B
1
2
3
P121162
2
1
