ENGINE COOLING SYSTEM (CONT’D)
Cleaning (Earlier Models) (Cont’d)
Loaders Without Air Conditioning

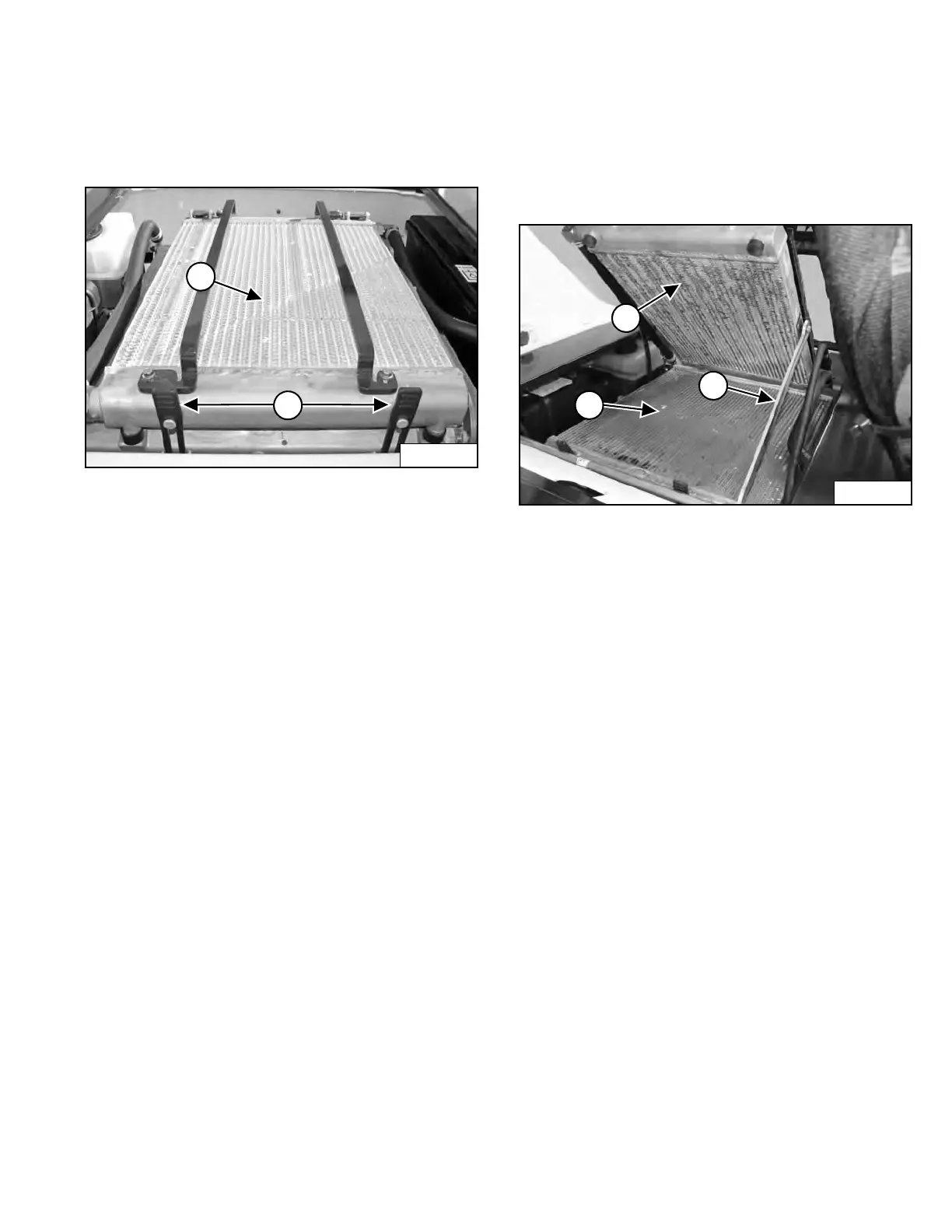

Figure 207
Use low air pressure or water pressure to clean the top of
th
e hydraulic fluid cooler (Item 1) [Figure 207].
All Loaders
Unhook the two rubber straps (Item 2) [Figure 207].
Figure 208
Raise the hydraulic fluid cooler (Item 1) until the support
ba
r (Item 2) drops into place to support the hydraulic fluid
cooler. Use low air pressure or water pressure to clean
the top of the radiator (Item 3) [Figure 208].
Raise the support bar (Item 2) [Figure 208] slightly and
lower the hydraulic fluid cooler. Fasten the two rubber
str
aps [Figure 207].
Check the cooling system for leaks.
Install the rear grille.
