INSTRUMENT PANEL IDENTIFICATION (CONT’D)
Right Panel (Keyless Start Panel)

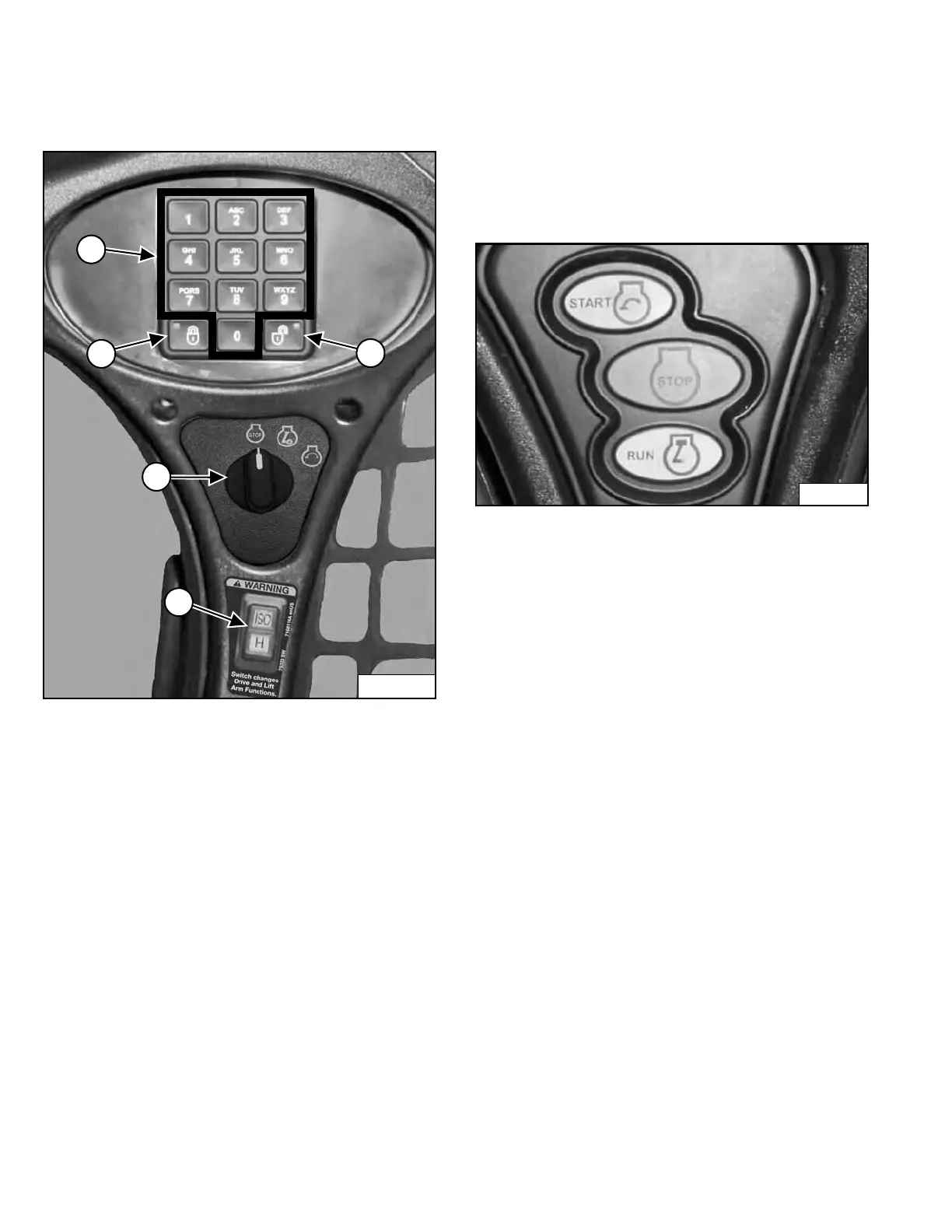

Figure 15
This machine may be equipped with a Keyless Start
Pa
nel [Figure 15].
1. K
eypad (keys 1 through 0): Used to enter a number
code (password) to allow starting the engine. An
asterisk will show in the left panel display screen for
each key press.
2. LOCK Key: Used to lock keypad. The lock key will
display a red light to indicate a password is required
to start the loader. (See Password Lockout Feature
on Page 177.)
3. UNLOCK Key: Used to unlock keypad. The unlock
key will display a green light to indicate the loader can
be started without a password. (See Password
Lockout Feature on Page 177.)
4. Key Switch: Used to turn the loaders electrical
system on and off, and to start and stop the engine.
5. Selectable Joystick Controls (SJC) Control
Pattern Switch (Option): Press the top to select
‘ISO’ Control Pattern; bottom to select ‘H’ Control
Pattern.
Figure 16
Earlier models used a push button switch assembly
[Figure 16] instead of a key switch.
