40 S850 Operation & Maintenance Manual
CONTROL IDENTIFICATION (CONT’D)
Standard Controls With Power Assist (SCPA)

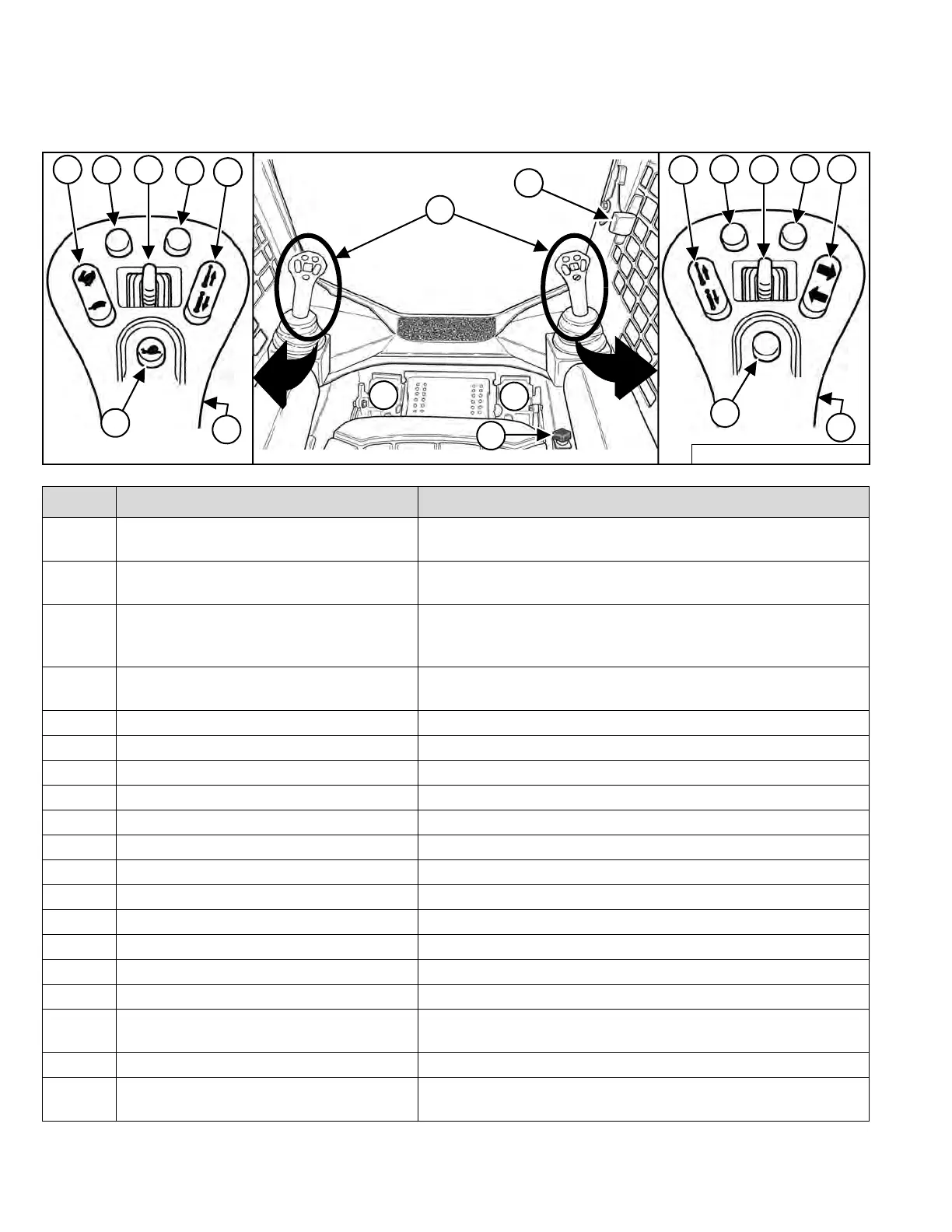

Figure 24
* Also used as Attachment Function Control: See your attachment Operation & Maintenance Manual.
REF. NO. DESCRIPTION FUNCTION / OPERATION
1 TWO-SPEED CONTROL
Also: SPEED MANAGEMENT
See TWO-SPEED CONTROL in this manual.
See SPEED MANAGEMENT in this manual.
* 2 STEERING DRIFT COMPENSATION
Also: DRIVE RESPONSE
See STEERING DRIFT COMPENSATION in this manual.
See DRIVE RESPONSE in this manual.
3 REAR AUXILIARY HYDRAULICS (Option)
Also: ATTACHMENT FUNCTION
CONTROL
See REAR Auxiliary Hydraulics Operation in this manual.
See ATTACHMENT CONTROL DEVICE in this manual.
* 4 STEERING DRIFT COMPENSATION
Also: DRIVE RESPONSE
See STEERING DRIFT COMPENSATION in this manual.
See DRIVE RESPONSE in this manual.
5 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
6 SPEED MANAGEMENT See SPEED MANAGEMENT in this manual.
7 FRONT HORN Press the front switch to sound the front horn.
8 ENGINE SPEED CONTROL See ENGINE SPEED CONTROL in this manual.
9 STEERING HANDLES See DRIVING AND STEERING THE LOADER in this manual.
10 LIFT ARM PEDAL See HYDRAULIC CONTROLS in this manual.
11 TILT PEDAL See HYDRAULIC CONTROLS in this manual.
12 LIFT ARM BYPASS CONTROL See LIFT ARM BYPASS CONTROL in this manual.
13 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
* 14 NOT USED - - -
15 FRONT AUXILIARY HYDRAULICS See FRONT Auxiliary Hydraulics Operation in this manual.
* 16 NOT USED - - -
17 TURN SIGNALS (Option) Press the top to activate right signal; press again to turn off.
Press the bottom to activate left signal; press again to turn off.
18 NOT USED - - -
19 CONTINUOUS FLOW CONTROL FOR
AUXILIARY HYDRAULICS
See FRONT Auxiliary Hydraulics Operation (CONTINUOUS
FLOW) in this manual.
B-19873A / NA1828 / B-19874B
