HYDRAULIC CONTROLS
Description
Two foot pedals (or optional joysticks) control the
h
ydraulic cylinders for the lift and tilt functions.
Put your feet on the pedals (or f
ootrests) and KEEP
THEM THERE any time you operate the loader.
Standard Controls With Power Assist (SCPA)

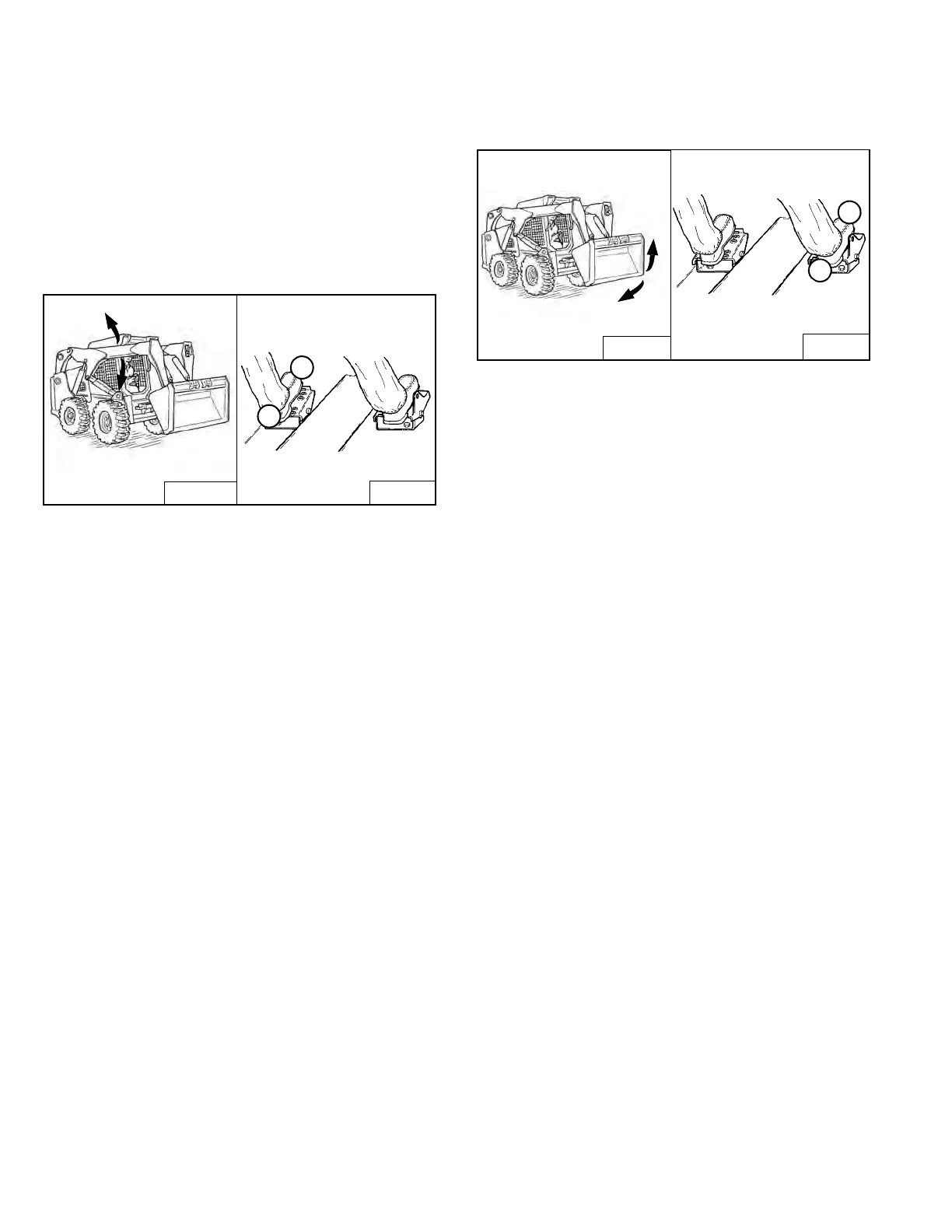

Figure 73
Lift Arm Operation - (Left Pedal)
Push the heel (Item 1) [Figure 73] of the pedal to
raise the lift arms.
Push the toe (Item 2) [Figure 73] of the pedal to lower
the lift arms.
Lift Arm Float Position - (Left Pedal)
Push the toe (Item 2) [Figure 73] of the pedal all the
way forward until it locks into the float position.
Use the float position of the lift arms to level loose
material while driving backward.
Raise the lift arms to disengage the float position.
Figure 74
Tilt Operation - (Right Pedal)
Push the heel (Item 1) [Figure 74] of the pedal to tilt
the bucket backward.
Push the toe (Item 2) [Figure 74] of the pedal to tilt
the bucket forward.
NA1681
B-15973
1
2
NA1681
B-15973
1
2
