Bobcat S850 - Evaporator; Heater Coil Maintenance

117 S850 Operation & Maintenance Manual

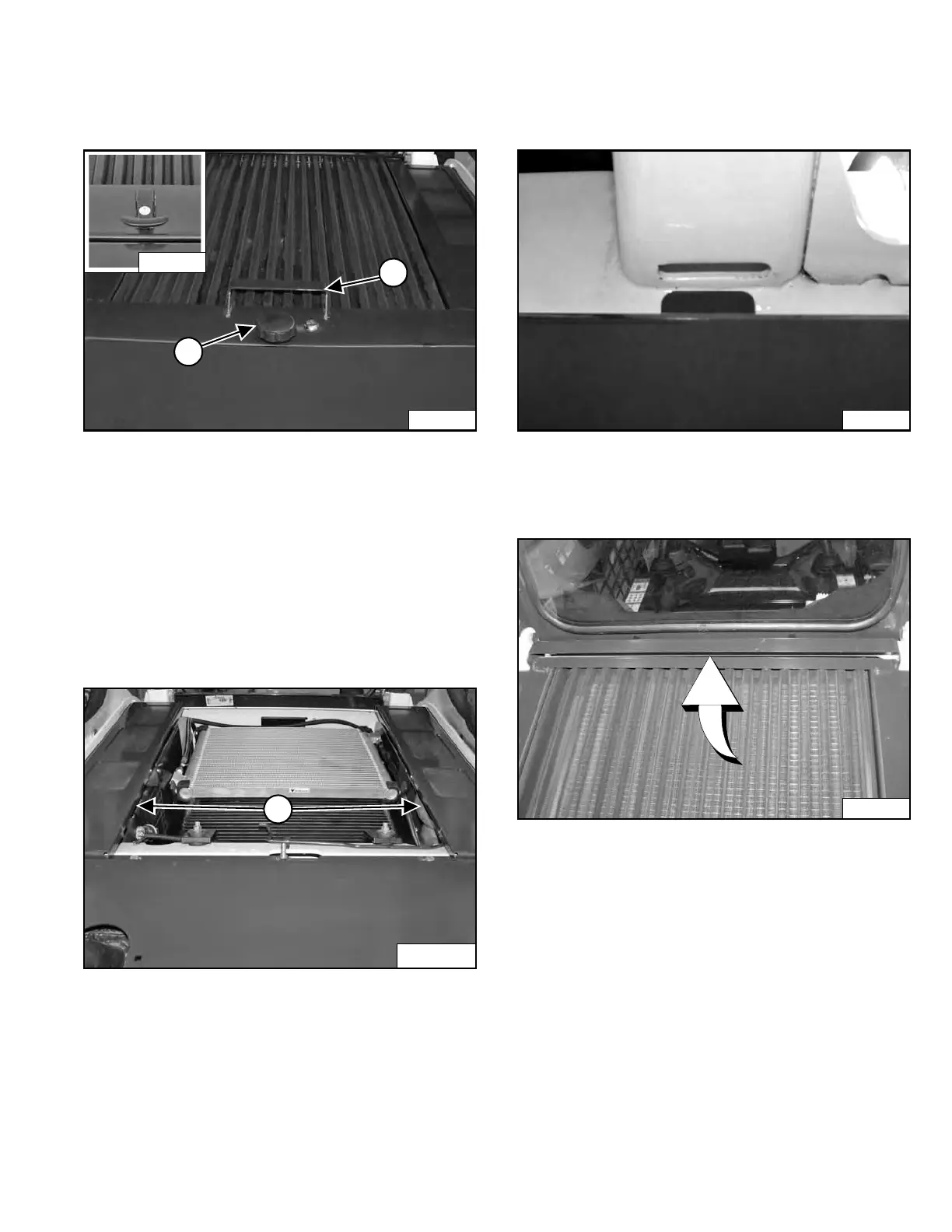

REAR GRILLE
Removing
Figure 170
(Earlier Models) - Flip th
e lockable handle (Inset)
[Figure 170] up and turn the handle 90°
counterclockwise. Lift and pull the rear g
rille backward to
remove from the loader.
OR
(Later Models)
- Remove the clamping knob (Item 1). Lift
using the handle (Item 2) [Figure 170] and pull the rear
grille backward to remove from the loader.
Figure 171
Lift and remove the two side covers (Item 1)
[Figure 171].
Installing
Figur
e 172
Align the tabs of the two side covers into the slots in the
lo
ader frame and lower [Figure 172].
Figure 173
Align the edge of the rear g
rille under the loader frame
and slide rear grille in while lowering [Figure 173].
(Earlier Models) -
Turn the lockable handle 90°
clockwise and fold the handle down (Inset) [Figure 170].
OR
(Later Models) - In
stall the clamping knob (Item 1)
[Figure 170].
P121151C
1
2
P100808G
P115689A
1
P100807
P121078A
