Bobcat S850 - ATTACHMENT CONTROL DEVICE (ACD); Description

74 S850 Operation & Maintenance Manual
ATTACHMENT CONTROL DEVICE (ACD)
This machine may be equipped with an Attachment Control Device.
Description

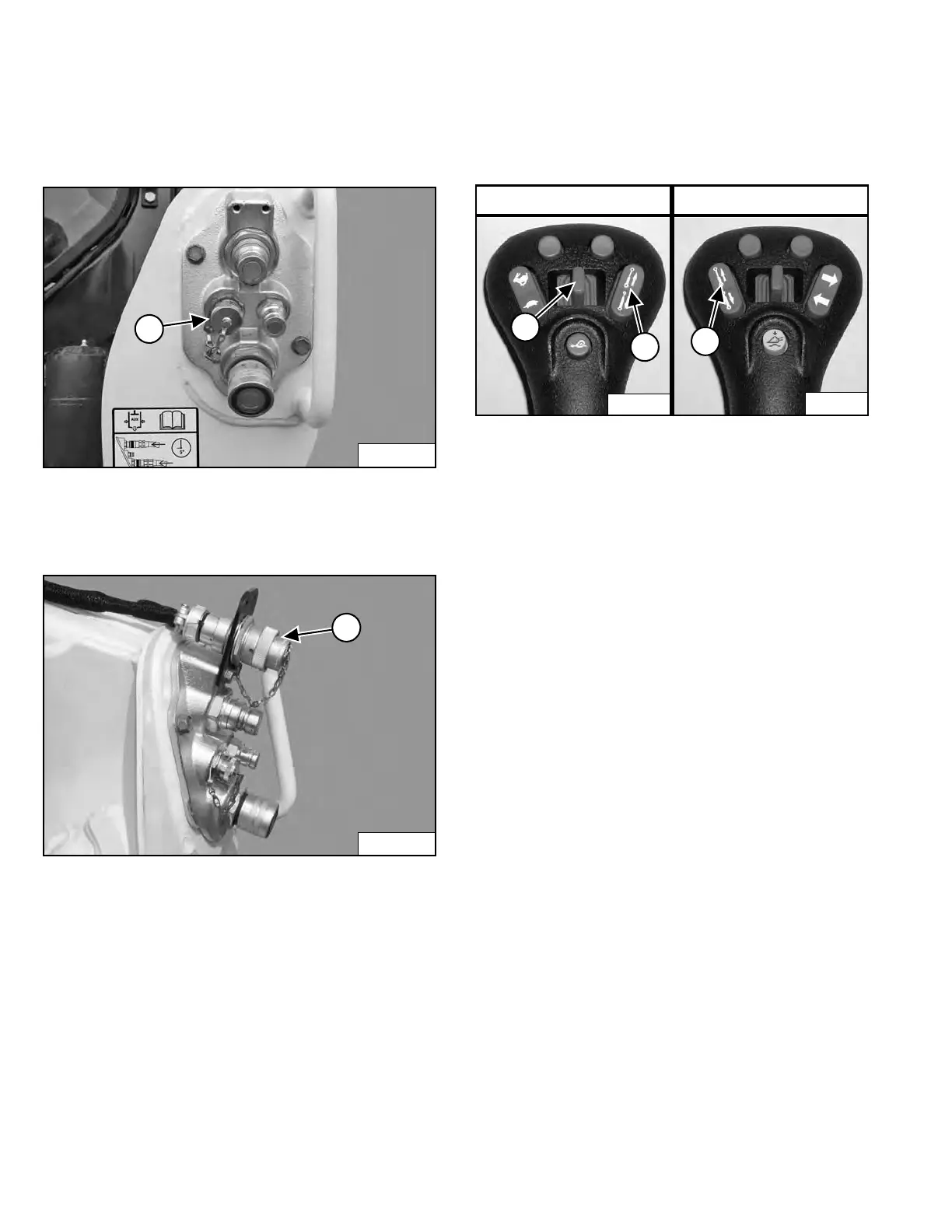

Figure 92
Connect the attachment electrical harness to the
a
ttachment control device (Item 1) [Figure 92].
Figure 93
You will need the 14-Pin Attac
hment Control Device kit
(Item 1) [Figure 93] to operate early model attachments.
See your Bobcat loader dealer.
Figure 94
Additional switches (Items 1, 2 and 3) [Figure 94] on the
left and right controls are used to control some
at
tachment functions through the attachment control
device.
NOTE: ACD takes over the function of auxiliary
hy
draulic switch (Item 1) [Figure 94] from
Rear Auxiliary Hydraulics when an
attachment electrical harness is attached to
the ACD.
See the appropriate attachment Operation &
Ma
intenance Manual for control details.
P-85281
1
P-85313
1
P-24820A
1
2
P-24802A
3
Left Right
