93 S850 Operation & Maintenance Manual
ATTACHMENTS (CONT’D)
Installing And Removing The Attachment (Hand
Lever Bob-Tach) (Cont’d)
Removing (Cont’d)

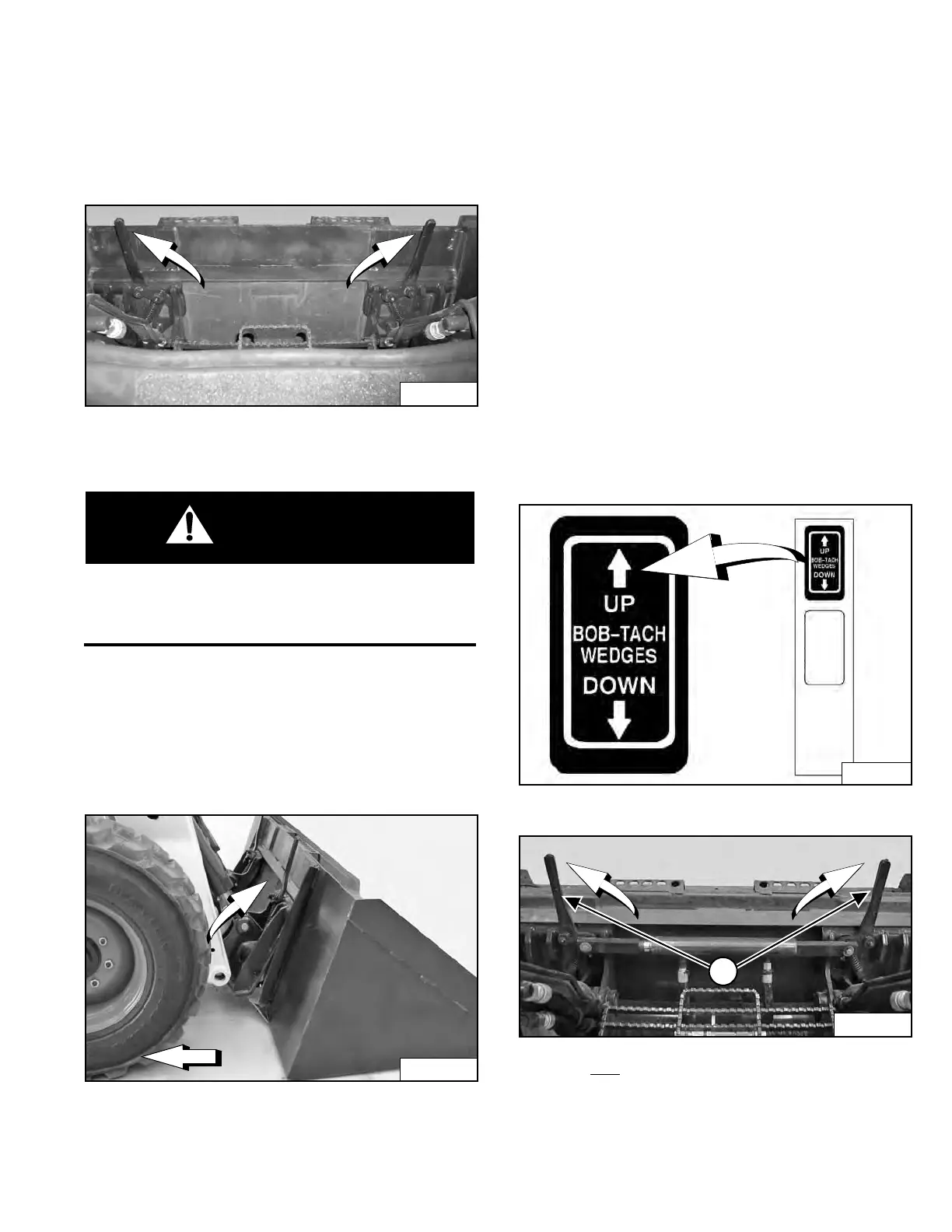

Figure 130
Pull the Bob-Tach levers up [Figure 130] until they are
fully raised (wedges fully raised).
WARNING
Bob-Tach levers have spring tension. Hold lever
tightly and release slowly. Failure to obey warning
can cause injury.
W-2054-1285
Enter the loader and perform the PRE-STARTING
PROCEDURE. (See PRE-STARTING PROCEDURE on
Page 77.)
Start the engine, press the PRESS TO OPERATE
L
OADER button and release the parking brake.
Figure 131
Tilt the Bob-Tach forward and drive the loader backward,
a
way from the bucket or attachment [Figure 131].
Installing And Removing The Attachment (Power
Bob-
Tach)
This machine may be equipped with a Power Bob-Tach.
Installing
The Power Bob-Tach is used for fast changing of buckets
an
d attachments. See the appropriate attachment
Operation & Maintenance Manual to install other
attachments.
Enter the loader and perform the PRE-STARTING
PR
OCEDURE. (See PRE-STARTING PROCEDURE on
Page 77.)
Start the engine, press the PRESS TO OPERATE
L
OADER button and release the parking brake.
Lower the lift arms and tilt the Bob-Tach forward.
Figure 132
Figur
e 133
Push and
hold BOB-TACH “WEDGES UP” switch (Right
Switch Panel) [Figure 132] until levers (Item 1)
[Figure 133] are fully raised (wedges fully raised).
P-85512
P-85515
P-85320A
P-85361A
1
