92 S850 Operation & Maintenance Manual
ATTACHMENTS (CONT’D)
Installing And Removing The Attachment (Hand Lever Bob-Tach) (Cont’d)
Installing (Cont’d)

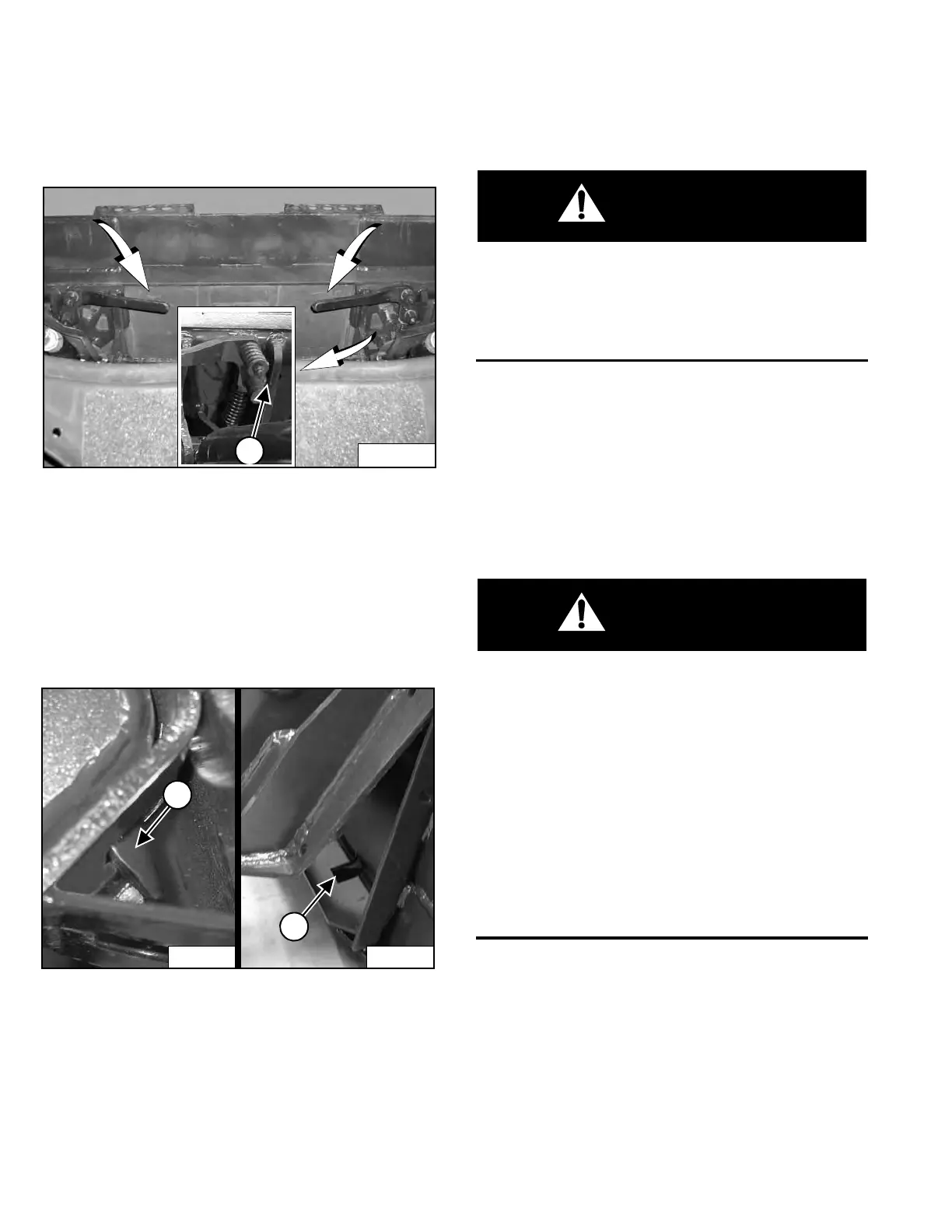

Figure 128
Push down on the Bob-Tach levers until they are fully
e
ngaged in the locked position (Item 1) [Figure 128]
(wedges fully extended through the attachment mounting
f
rame holes). Both levers must contact the frame as
shown when locked (Item 1) [Figure 128].
If both levers do not engage in the locked position, see
y
our Bobcat dealer for maintenance.
Figure 129
The wedges (Item 1) must extend through the holes (Item
2)
[Figure 129] in the mounting frame of the bucket (or
other attachment), securely fastening the bucket to the
Bob-T
ach.
WARNING
AVOID INJURY OR DEATH
The Bob-Tach wedges must extend through the holes
in the attachment mounting frame. Levers must be
fully down and locked. Failure to secure wedges can
allow attachment to come off.
W-2715-0208
Removing
Lower the lift arms and put the attachment flat on the
ground. Lower or close any hydraulic equipment, if
applicable.
Stop the engine and exit the loader. (See STOPPING
THE ENGINE AND LEAVING THE LOADER on Page
88.)
WARNING
AVOID INJURY OR DEATH
Before you leave the operator’s seat:
• Lower the lift arms and put the attachment flat on
the ground.
• Stop the engine.
• Engage the parking brake.
• Raise the seat bar.
• Move all controls to the NEUTRAL / LOCKED
position to make sure the lift, tilt and traction
drive functions are deactivated.
The seat bar system must deactivate these functions
when the seat bar is up. See your Bobcat dealer for
service if controls do not deactivate.
W-2463-1110
Disconnect attachment electrical harness, water line and
hydraulic lines, if applicable, from the loader. (See
Relieve Auxiliary Hydraulic Pres
sure (Loader And
Attachment) on Page 73.)
P-85513
1
P-31233A
1
P-31237B
2
