159 S850 Operation & Maintenance Manual
LUBRICATING THE LOADER
Lubrication Locations
Lubricate the loader as specified for the best
p
erformance of the loader. (See SERVICE SCHEDULE
on Page 106.)
Record the operating hours each time you lubricate the
Bob
cat loader.
Always use a good quality lithium based multipurpose
g
rease when you lubricate the loader. Apply the lubricant
until extra grease shows.
Remove attachment from the loader. (See Installing And
Removing The Attachment (Hand Lever Bob-Tach) on
Page 91.) OR (See Installing And Remo
ving The
Attachment (Power Bob-Tach) on Page 93.)
Tilt the Bob-Tach forward until it contacts the ground. (Not
r
equired on later models with Bob-Tach wedge grease
fittings that are accessible from the side.)
Stop the engine.
Lubricate the following:

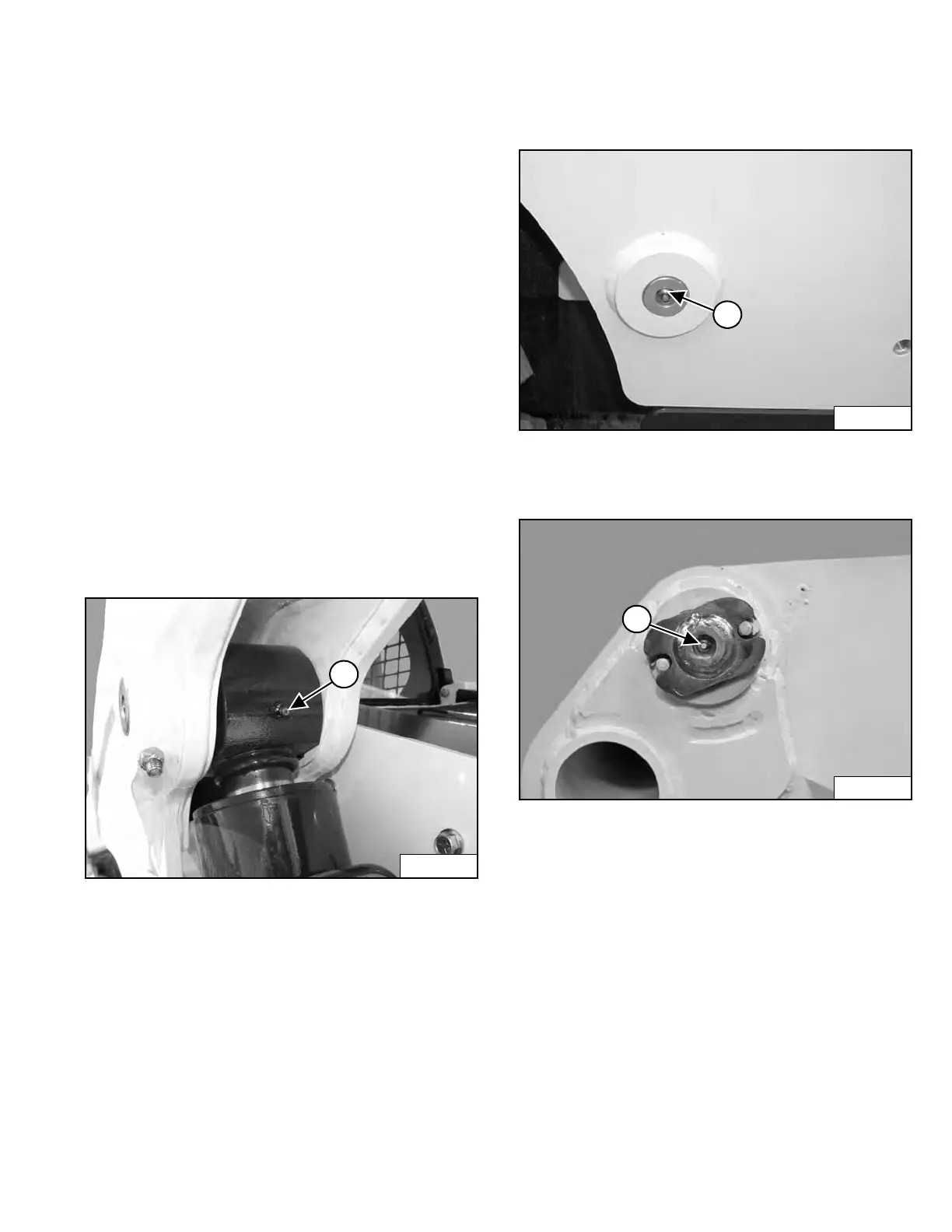

Figure 265
1. Rod End Lift Cylinder (Both Sides) (2) [Figure 265].
Figure 266
2. Base End Lift Cylinder (Both Sides) (2) [Figure 266].
Figure 267
3. Lift Arm Pivot Pin (Both Sides) (2) [Figure 267].
