160 S850 Operation & Maintenance Manual
LUBRICATING THE LOADER (CONT’D)
Lubrication Locations (Cont’d)

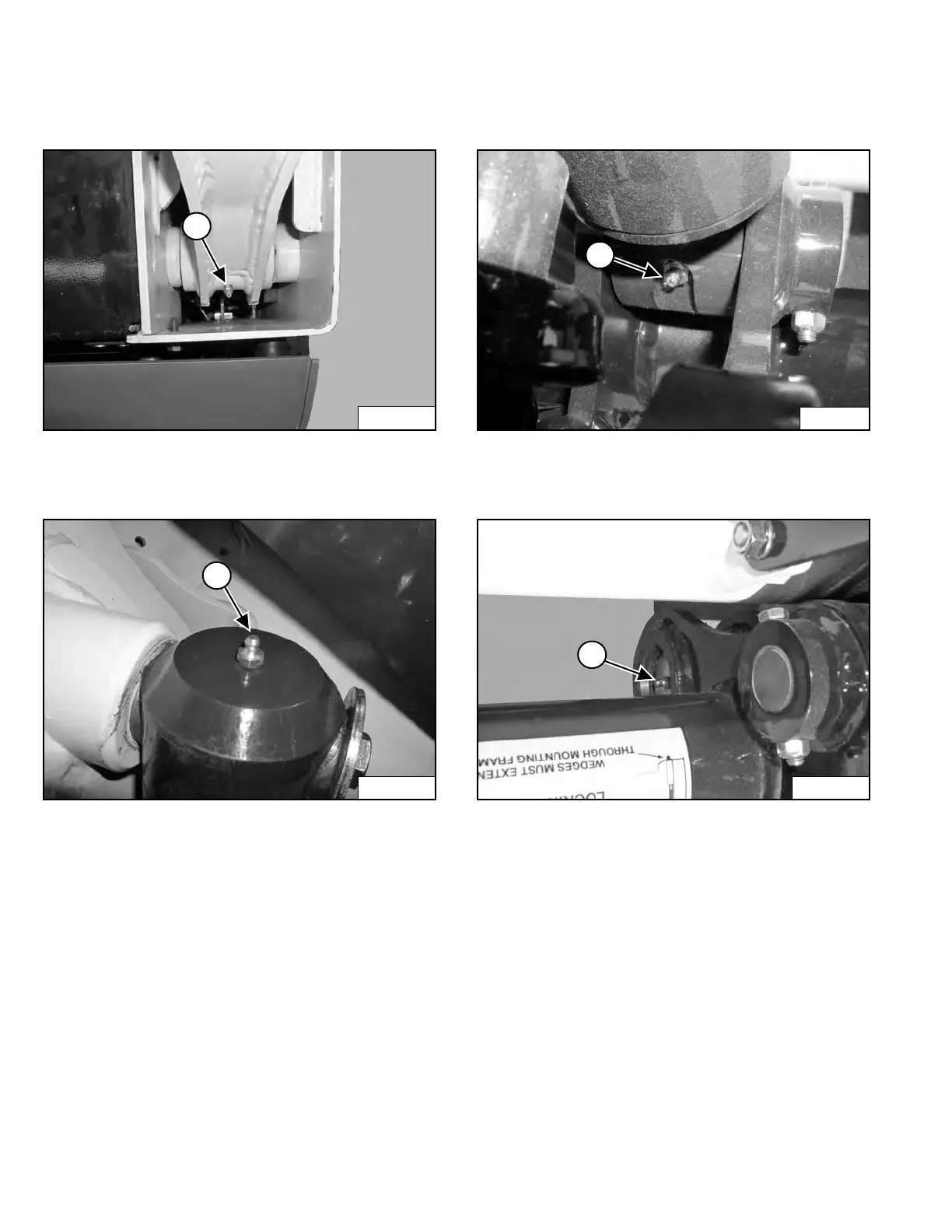

Figure 268
4. Lift Arm Link Pivot (Both Sides) (2) [Figure 268].
Figure 269
5. Base End Tilt Cylinder (Both Sides) (2) [Figure 269].
Figure 270
6. Rod End Tilt Cylinder (Both Sides) (2) [Figure 270].
Figure 271
7. Bob-Tach Pivot Pin (Both Sides) (2) [Figure 271].
P-90542A
4
P-85484
5
P-85720
6
P-85719
7
