ENGINE LUBRICATION SYSTEM (CONT’D)
Removing And Replacing Oil And Filter
For the service interval for replacing the engine oil and
filter (See SERVICE SCHEDULE on Page 106.)
Run the engine until it is at operating temperature. Stop
t
he engine.
Open the rear door.
Earlier Models
Figu
re 197

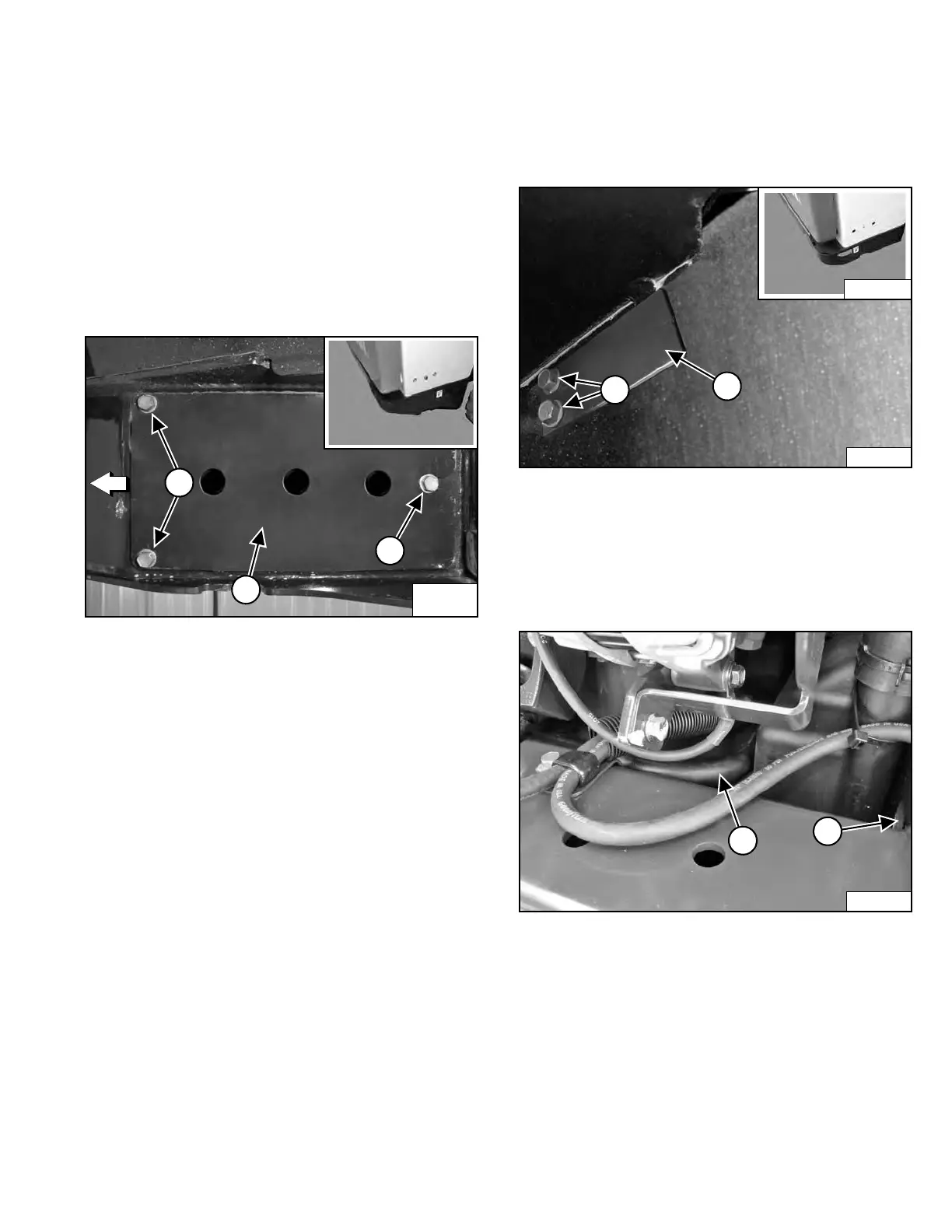

The oil drain hose is located behind a cover under the
r
ight rear corner of the loader (Inset) [Figure 197].
Remove two cover mounting bolts (Item 1) [Figure 197].
Loosen one cover mounting bolt (Item 2), slide the cover
(I
tem 3) [Figure 197] to the rear of the loader and
remove.
Later Models
Figur
e 198
The oil drain hose is located behind a cover under the
r
ight rear corner of the loader (Inset) [Figure 198].
Remove the cover mounting bolts (Item 1) and remove
th
e cover (Item 2) [Figure 198].
Figure 199
Remove the oil drain hose (Item 1) from the storage
loca
tion and route through the opening (Item 2)
[Figure 199].
P-90497A
P-90499A
3
2
1
P109086B
P109762A
1
2
P109089
1
2
