168 S850 Operation & Maintenance Manual
DIAGNOSTIC SERVICE CODES (CONT'D)
Service Codes List

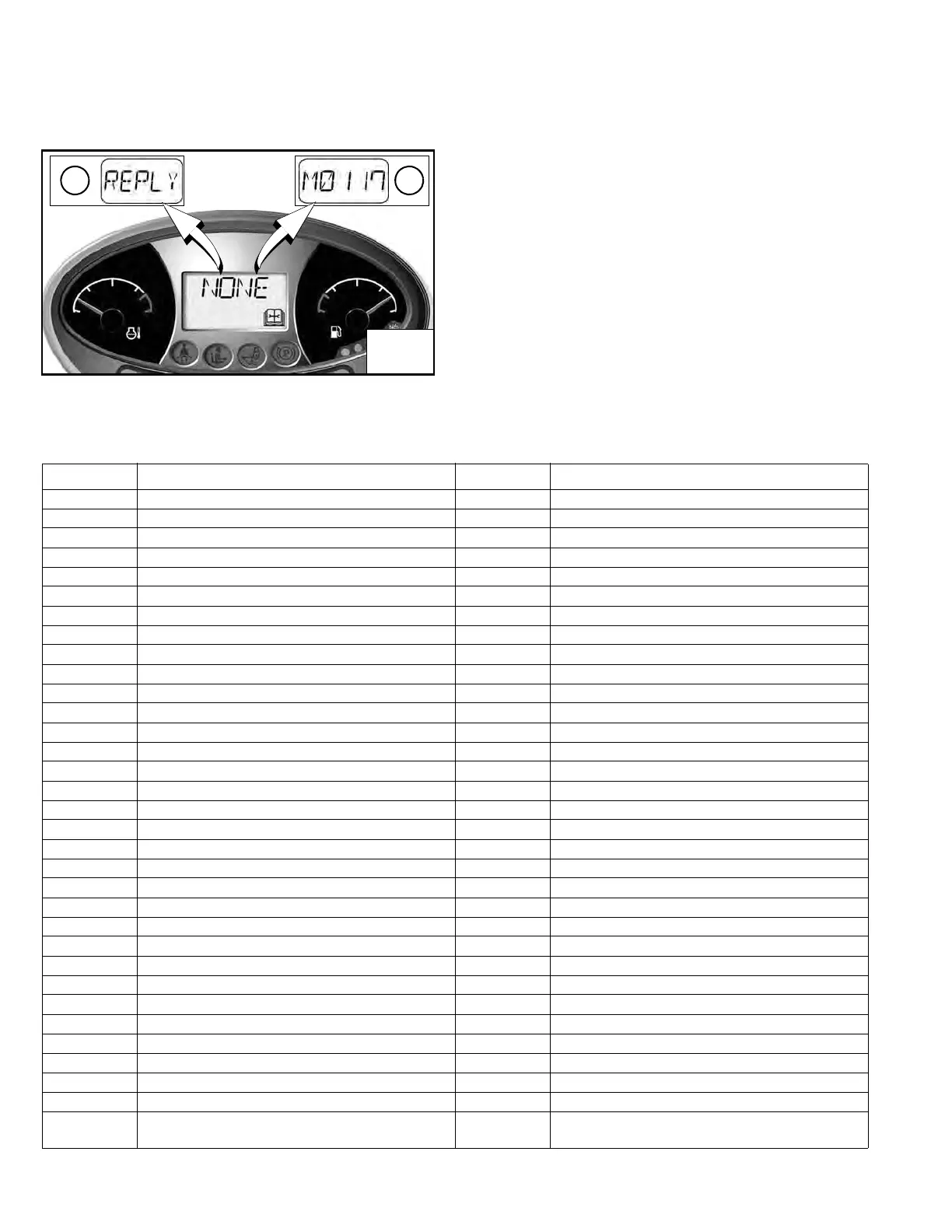

Figure 284
Service codes may be either a word (Item 1) or a number
(I
tem 2) [Figure 284].
The following word errors may be displayed:
[REPLY] One or both instrument panel(s) not
communicating with the controller.
[CODE] The controller is asking for a password.
(Keyless Start and Deluxe Instrumentation Panels
only.)
[ERROR] The wrong password was entered.
(Keyless Start and Deluxe Instrumentation Panels
only.)
[SHTDN] A shutdown condition exists.
[DOOR] Operator cab door is open. (Lift and Tilt
functions will not operate.)
CODE DESCRIPTION CODE DESCRIPTION
A0618 Wheel speed out of range A8403 ACD output ‘E’ error OFF
A3623 ACD not programmed A8405 ACD output ‘E’ short to battery
A4621 5 volt sensor supply out of range high A8406 ACD output ‘E’ short to ground
A4622 5 volt sensor supply out of range low A8407 ACD output ‘E’ open circuit
A4721 8 volt sensor supply out of range high A8432 ACD output ‘E’ overcurrent
A4722 8 volt sensor supply out of range low A8502 ACD output ‘F’ error ON
A7701 Machine key active A8503 ACD output ‘F’ error OFF
A7901 E-Stop active A8505 ACD output ‘F’ short to battery
A8002 ACD output ‘A’ error ON A8506 ACD output ‘F’ short to ground
A8003 ACD output ‘A’ error OFF A8507 ACD output ‘F’ open circuit
A8005 ACD output ‘A’ short to battery A8532 ACD output ‘F’ overcurrent
A8006 ACD output ‘A’ short to ground A8602 ACD output ‘G’ error ON
A8007 ACD output ‘A’ open circuit A8603 ACD output ‘G’ error OFF
A8032 ACD output ‘A’ overcurrent A8605 ACD output ‘G’ short to battery
A8102 ACD output ‘B’ error ON A8606 ACD output ‘G’ short to ground
A8103 ACD output ‘B’ error OFF A8607 ACD output ‘G’ open circuit
A8105 ACD output ‘B’ short to battery A8702 ACD output ‘H’ error ON
A8106 ACD output ‘B’ short to ground A8703 ACD output ‘H’ error OFF
A8107 ACD output ‘B’ open circuit A8705 ACD output ‘H’ short to battery
A8132 ACD output ‘B’ overcurrent A8706 ACD output ‘H’ short to ground
A8202 ACD output ‘C’ error ON A8707 ACD output ‘H’ open circuit
A8203 ACD output ‘C’ error OFF A8802 Reverse solenoid error ON
A8205 ACD output ‘C’ short to battery A8803 Reverse solenoid error OFF
A8206 ACD output ‘C’ short to ground
A8207 ACD output ‘C’ open circuit D3905 Left joystick X-axis not in NEUTRAL
A8232 ACD output ‘C’ overcurrent D3907 Left joystick Y-axis not in NEUTRAL
A8302 ACD output ‘D’ error ON D4007 Right joystick Y-axis not in NEUTRAL
A8303 ACD output ‘D’ error OFF D7501 Drive CAN joystick information error
A8305 ACD output ‘D’ short to battery D7504 Drive no communication from drive controller
A8306 ACD output ‘D’ short to ground D7505 Drive left joystick X-axis not in NEUTRAL
A8307 ACD output ‘D’ open circuit D7507 Drive left joystick Y-axis not in NEUTRAL
A8332 ACD output ‘D’ overcurrent D7508 Drive right joystick Y-axis not in NEUTRAL
A8402 ACD output ‘E’ error ON D7509
Drive operating mode switch short to ground or
battery
