48 S850 Operation & Maintenance Manual
EMERGENCY EXIT
The front opening on the operator cab and rear window provide exits.

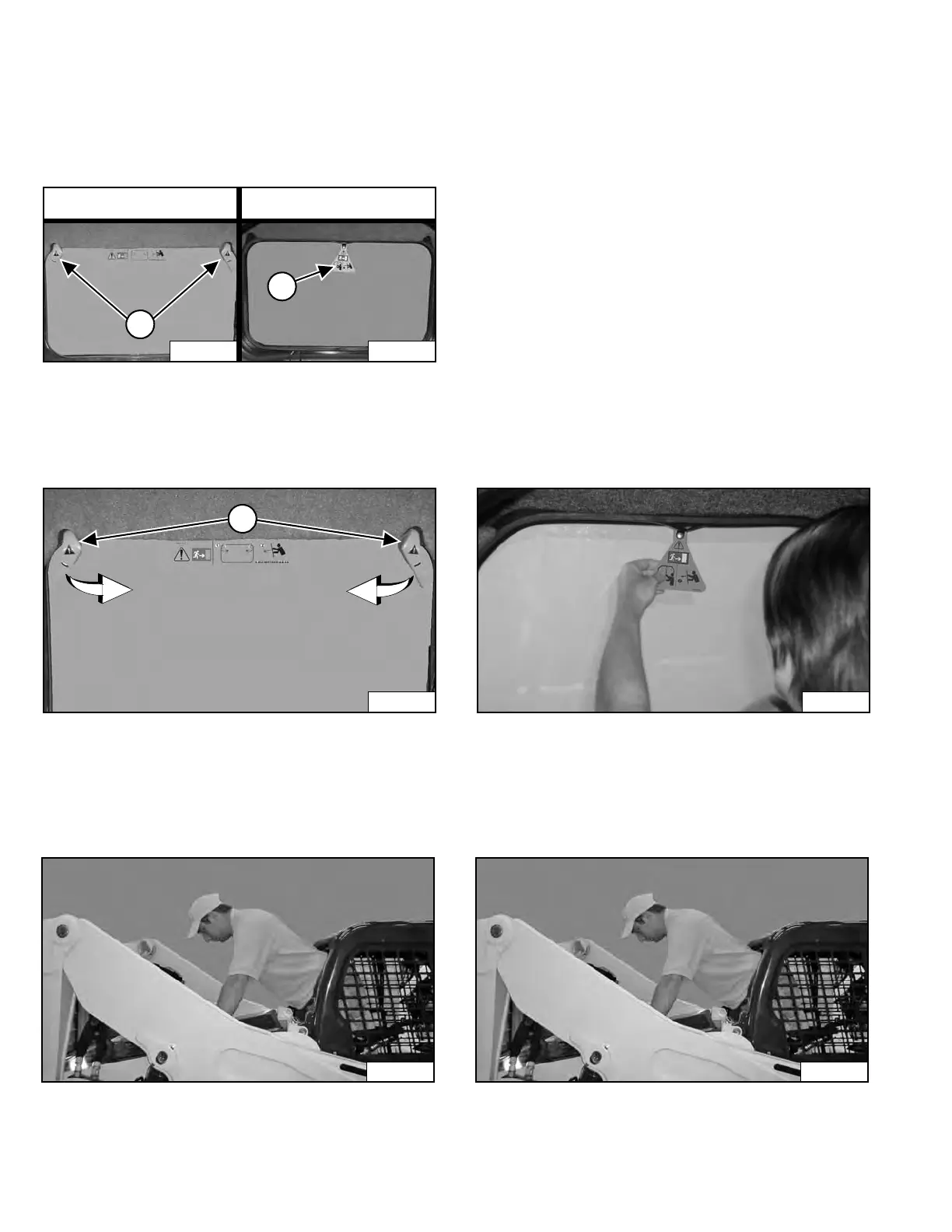

Rear Window Identification
Figure 41 There are two different procedures for removing the rear
windo
w from your machine:
1. This window is equipped with latches [Fi
gure 41].
2. This window is equipped with a rubber cord and tag
[Figure 41].
NOTE: Use these procedures to remove the rear
window only under emergency conditions.
Damage to machine may occur.
—————————————————————————————————————————————————————
Rear Window Removal (Latches)
Figu
re 42
Turn both latches (Item 1) [Figure 42] in until they
disengage from the window frame.
Push the rear window out of the rear of the operator cab.
Figure 43
Exit through the rear of the operator cab [Figure 43].
Rear Window Removal (Rubber Cord)
Figur
e 44
Pull on the tag on the top of the rear window to remove
t
he rubber cord [Figure 44].
Push the rear window out of the rear of the operator cab.
Figure 45
Exit through the rear of the operator cab [Figure 45].
Latches Rubber Cord
P-85309B
1
P-64994D
2
P-85309A
1
P-90676
P-64994C
P-90676
50 of 210
