Installing And Removing The Attachment (Power Bob-Tach) (Cont’d)
Installing (Cont’d)

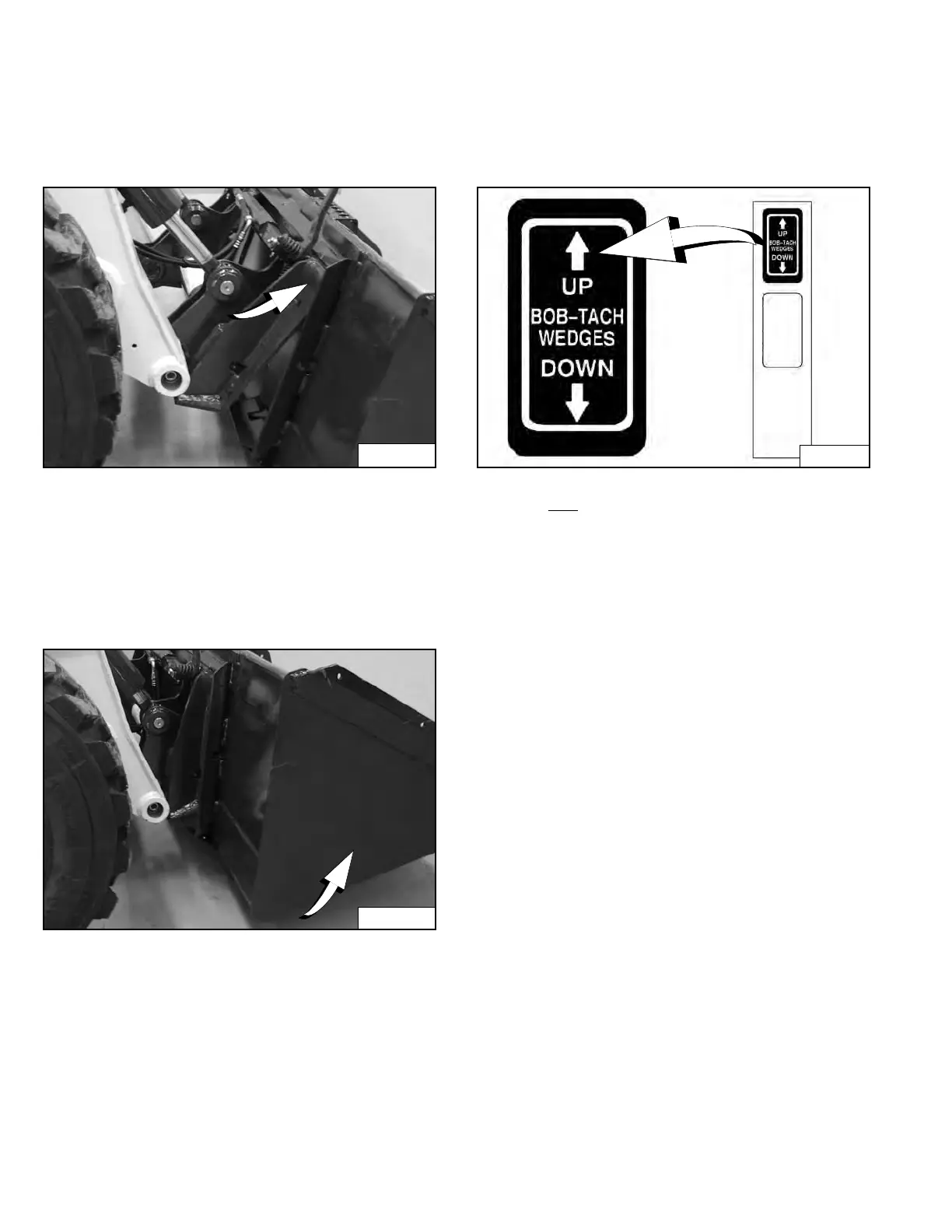

Figure 134
Drive the loader slowly forward until the top edge of the
Bo
b-Tach is completely under the top flange of the bucket
mounting frame [Figure 134] (or other attachment).
NOTE: Be sure the Bob-Tach levers do not hit the
a
ttachment.
Figure 135
Tilt the Bob-Tach backward until the cutting edge of the
b
ucket (or other attachment) is slightly off the ground
[Figure 135]. This will cause the bucket mounting frame
to fit up against the front of the Bob-Tach.
Figure 136
Push and
hold BOB-TACH “WEDGES UP” switch (Right
Switch Panel) [Figure 136] to make sure the levers are
fully raised (wedges fully raised).
NOTE: The Power Bob-Tach system has continuous
pressurized hydraulic oil to keep the wedges
in the engaged position and prevent
attachment disengagement. Because the
wedges can slowly lower, the operator may
need to reactivate the switch (BOB-TACH
WEDGES UP) to be sure both wedges are fully
raised before installing the attachment.
