EMERGENCY EXIT (CONT’D)
Front Door (Cont’d)
Front Door Reassembly
Reassemble the front door using the following
in
structions if the door was opened using the emergency
exit procedure.

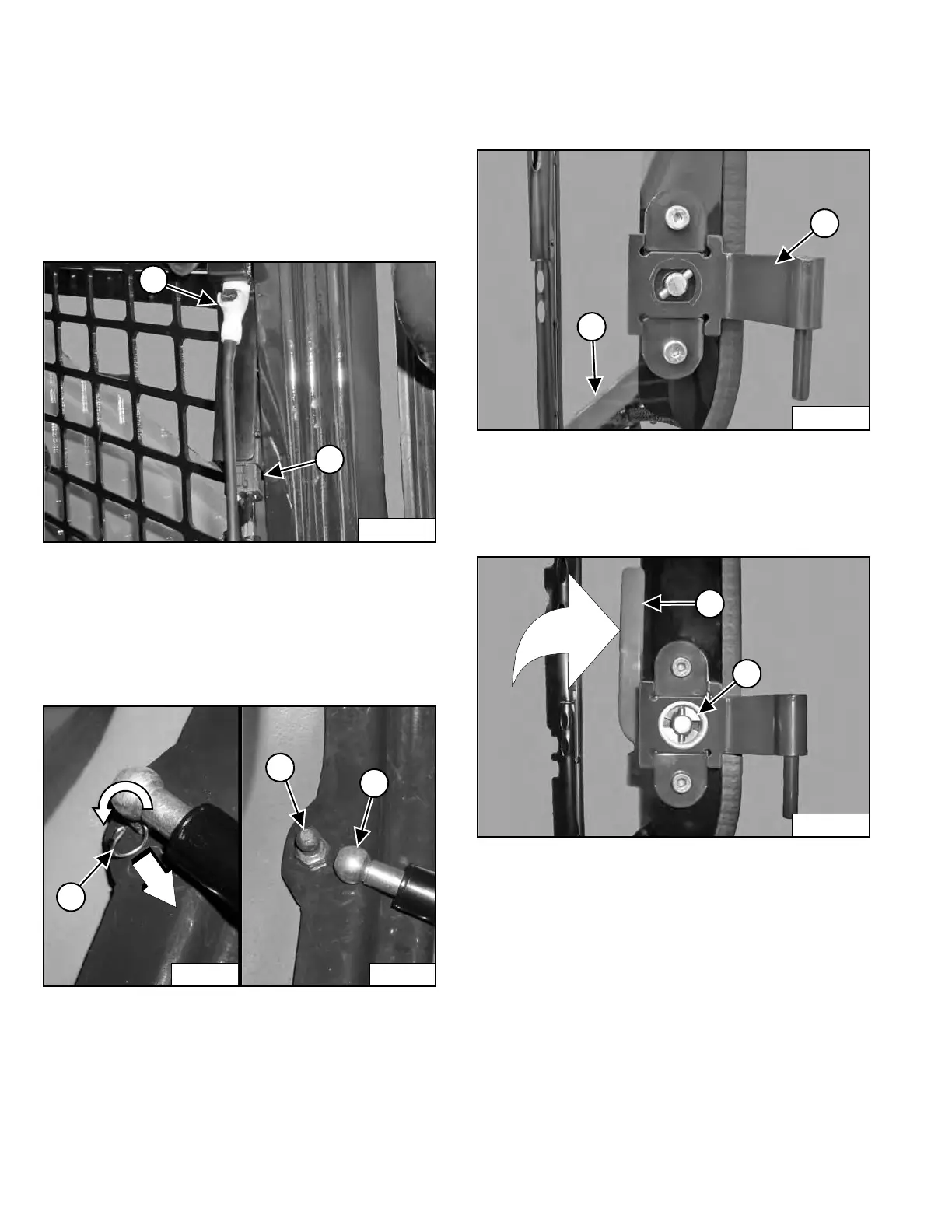

Figure 50
NOT
E: Later models route the washer fluid hose
differently and will not require this step.
Disconnect electrical connector (Item 2) and washer fluid
h
ose (Item 1) (if equipped) [Figure 50].
Figure 51
Rotate and pull the clip (Item 1) out of the gas spring
so
cket. Pull the gas spring socket (Item 3) straight off the
ball stud fitting (Item 2) [Figure 51].
Remove the door hinges from the loader.
Figure 52
Orient the latches as shown (Item 1) and install the door
h
inges (Item 2) [Figure 52] on the door. (Bottom hinge
shown)
Figure 53
Install cast washers (Item 2) on door hinges taking care
t
o match rectangular surfaces. Hold cast washer firmly
against door and rotate latch (Item 1) [Figure 53] up to
lock cast washer into place. (Bottom hinge shown)
(
Plastic cap shown removed for visual clarity.)
Install door on loader.
Install the gas spring socket on the ball stud fitting. Install
t
he clip into the hole in the gas spring socket. Rotate the
clip to lock into place [Figure 51].
Connect electrical connector (I
tem 2) and washer fluid
hose (Item 1) (if equipped) [Figure 50].
P-85781A
1
2
P-85588A
1
P-85589A
2
3
P-90685
1
2
P-90686A
1
2
