2 - 26

Electrical parts and motors

Basics of Assembly

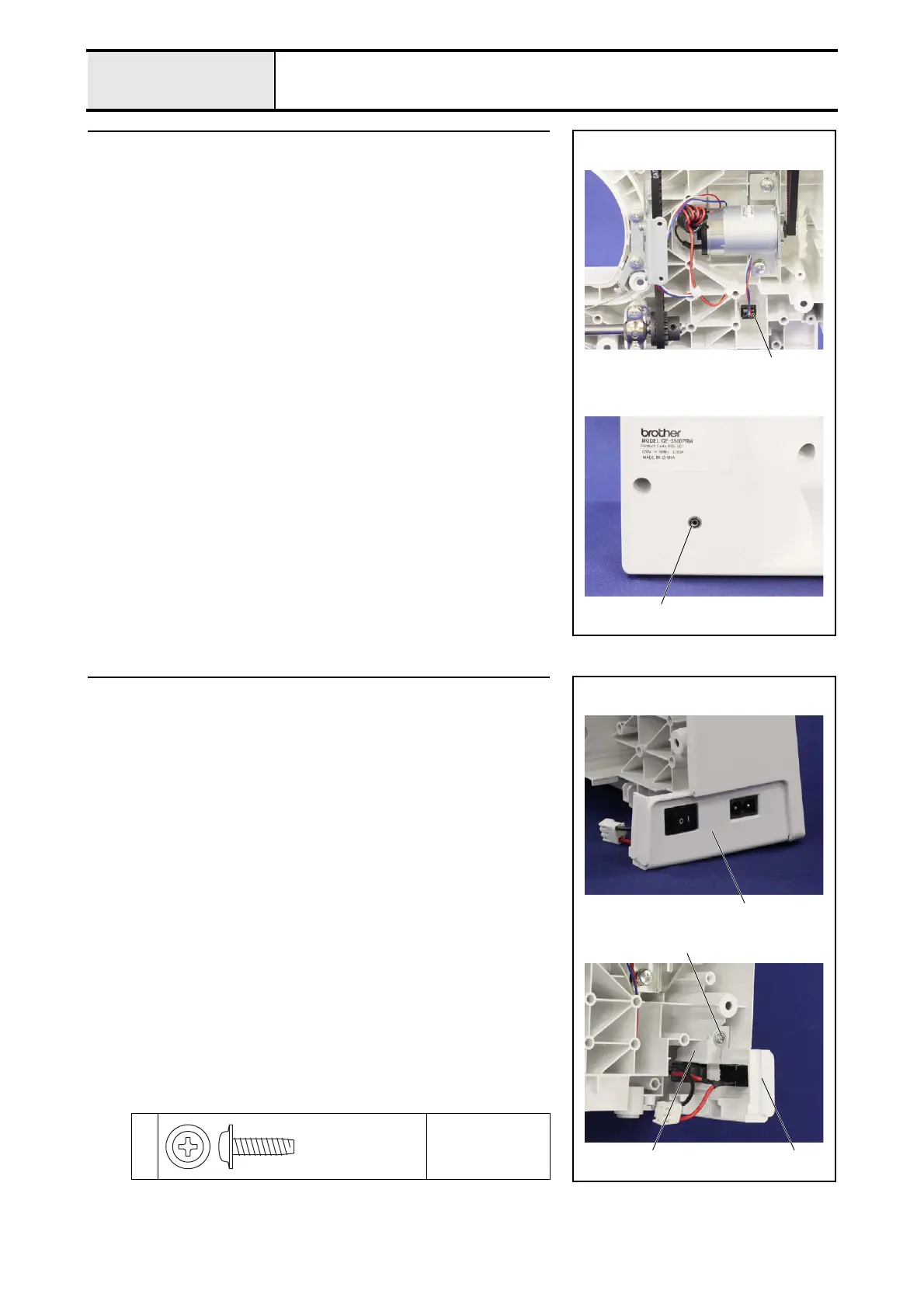

3 Attachment of Foot controller jack assy

1. Insert the foot controller jack assy. 1 from the inside of the rear cover

assy..

2. Attach the jack nut 2 from the outside of the rear cover assy., and secure

the foot controller jack assy. 1.

*Key point

• Pass the lead wire of the foot controller jack assy. 1 between

the main motor sub assy. and the rear cover assy..

4 Attachment of Inlet assy

1. Set the inlet assy. 1 and the inlet presser 2 to the rear cover assy. with the

screw 1.

Torque

0.78 – 1.18 N·m

Taptite, Cup B

M4X14
