144 S I G M A with Bluefin

Meter selection

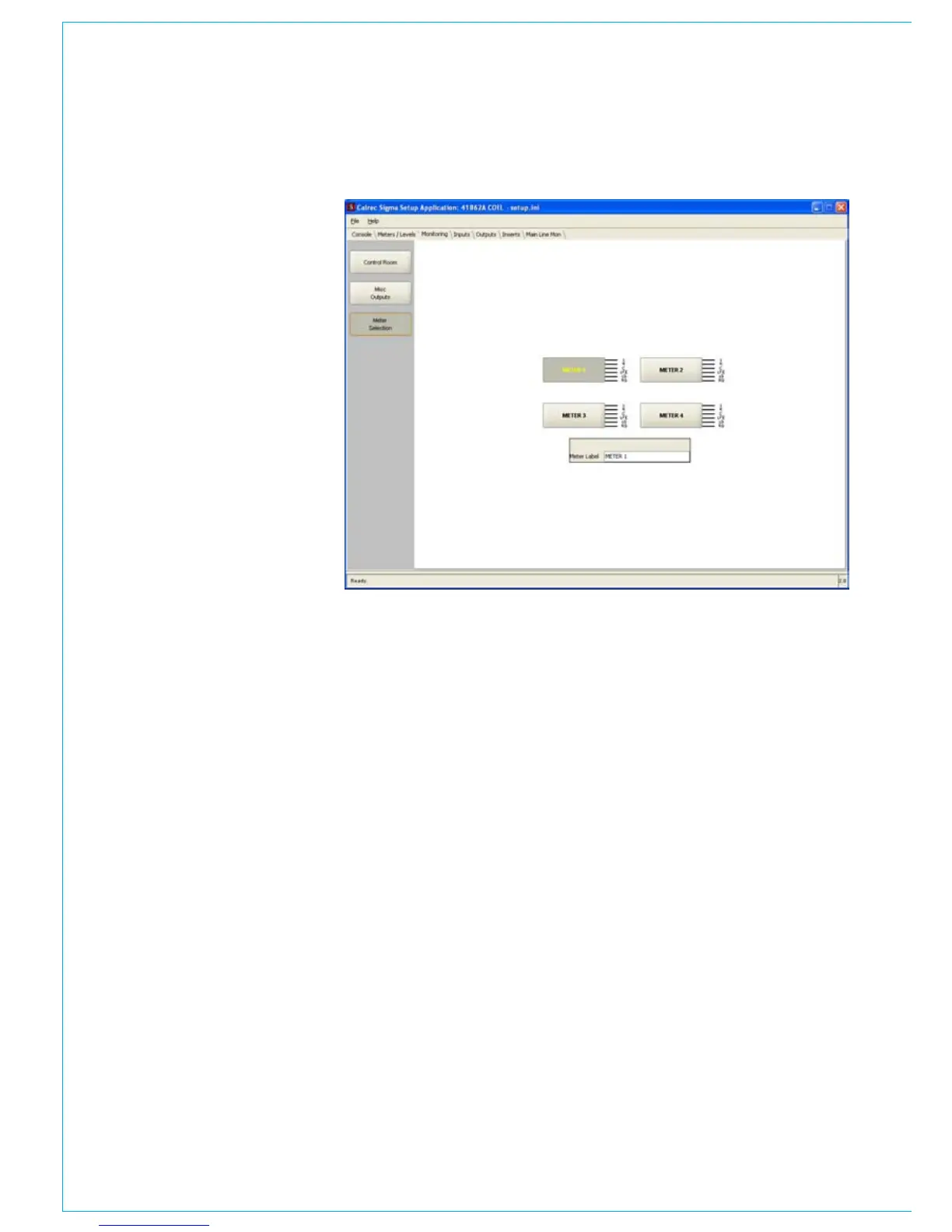

As with the misc output page, the Meter

Selection screen will only appear if

the mixer is fitted with the assignable

monitoring system. The assignable

monitoring system has four meter

selectors. Each meter selector can be

labelled and displayed on the mixer control

surface using this page.
