Canon LBP3310 - Foot Positions

Installation Site
2-6
Installing the Printer
2

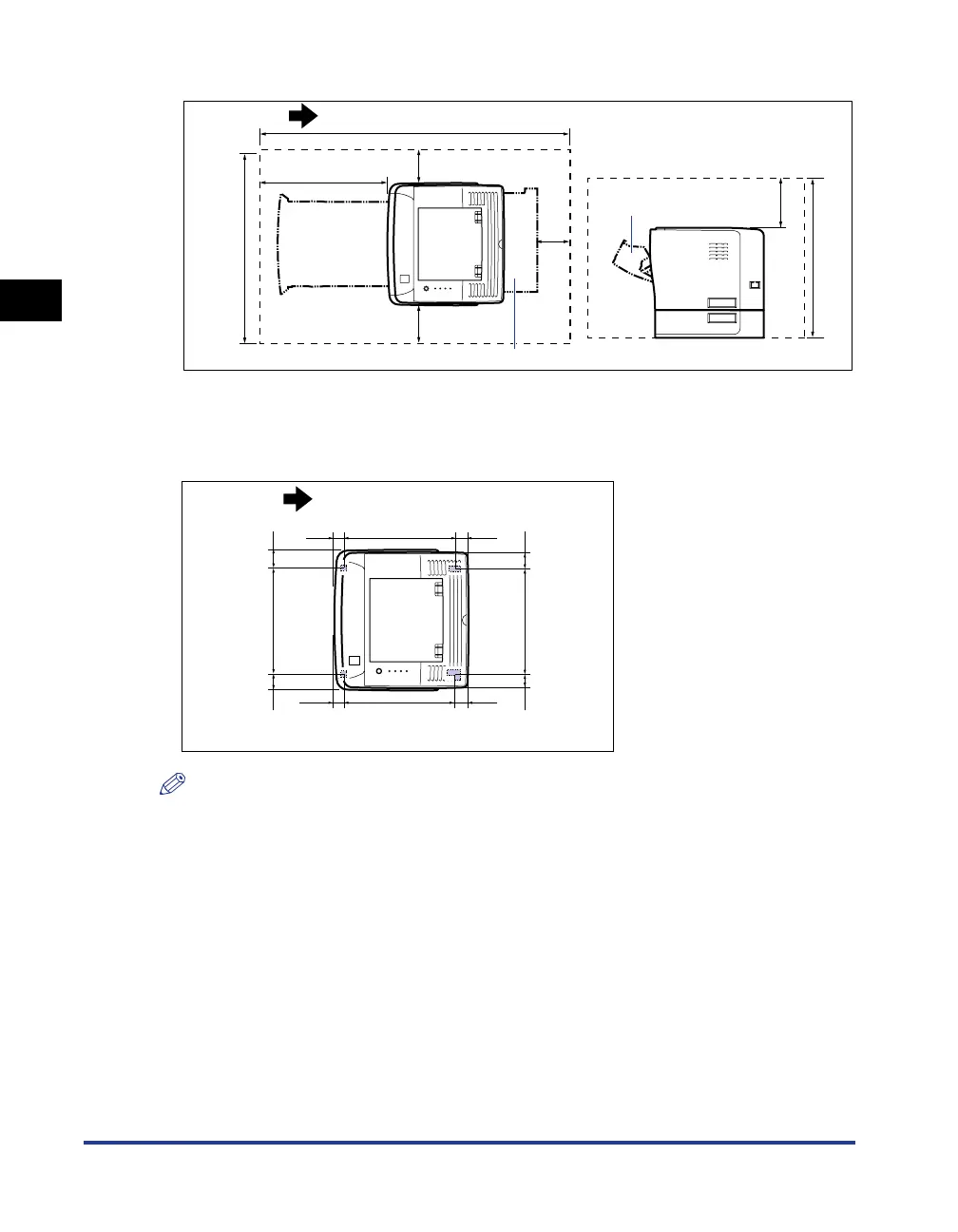

■ With the paper feeder installed
Foot Positions
■ Printer unit
NOTE
The front feet are 7.8 mm high and their top surface is 12 mm square.
The rear feet are 7.8 mm high, the top surface of the left foot is a rectangle of 21.7 mm x
40 mm, and that of the right foot is 18.6 mm x 40 mm and is L-shaped.
(mm)
100
100 100
1072.9
500
599.7
200
546.8
Front Surface
Output selection cover
Paper cassette
Front cover
(mm)
62.3
283.2
54.2
43.9
294.2
40.5
54.3
277.6
52.7
43.9
294.2
40.5
Front Surface
