Cessna 182 1978 - Infinitely Adjustable Front Seat Installation

MODEL
182 & T182 SERIES
SERVICE MANUAL
11.
Seat
Belt
Pocket
. 27
* 18268294
AND
ON
14. Seat Belt
Retainer
18. Seat Adjust Pin
19. Seat Adjust Spring
21.
Seat Bottom
24.
Seat Back
26. Vertical Adjustment Handle
27.
Fore/Aft
Adjustment
Handle
28. Articulating Adjustment Handle
29.
Adjustment
Screw
30. Bellcrank
31. Trim
24
32. Spacer 30
33. Channel
34.
Torque Tube
35. Seat Structure 29
36. Roller
37.
Link
28
27
19
Detail A
3
14
26

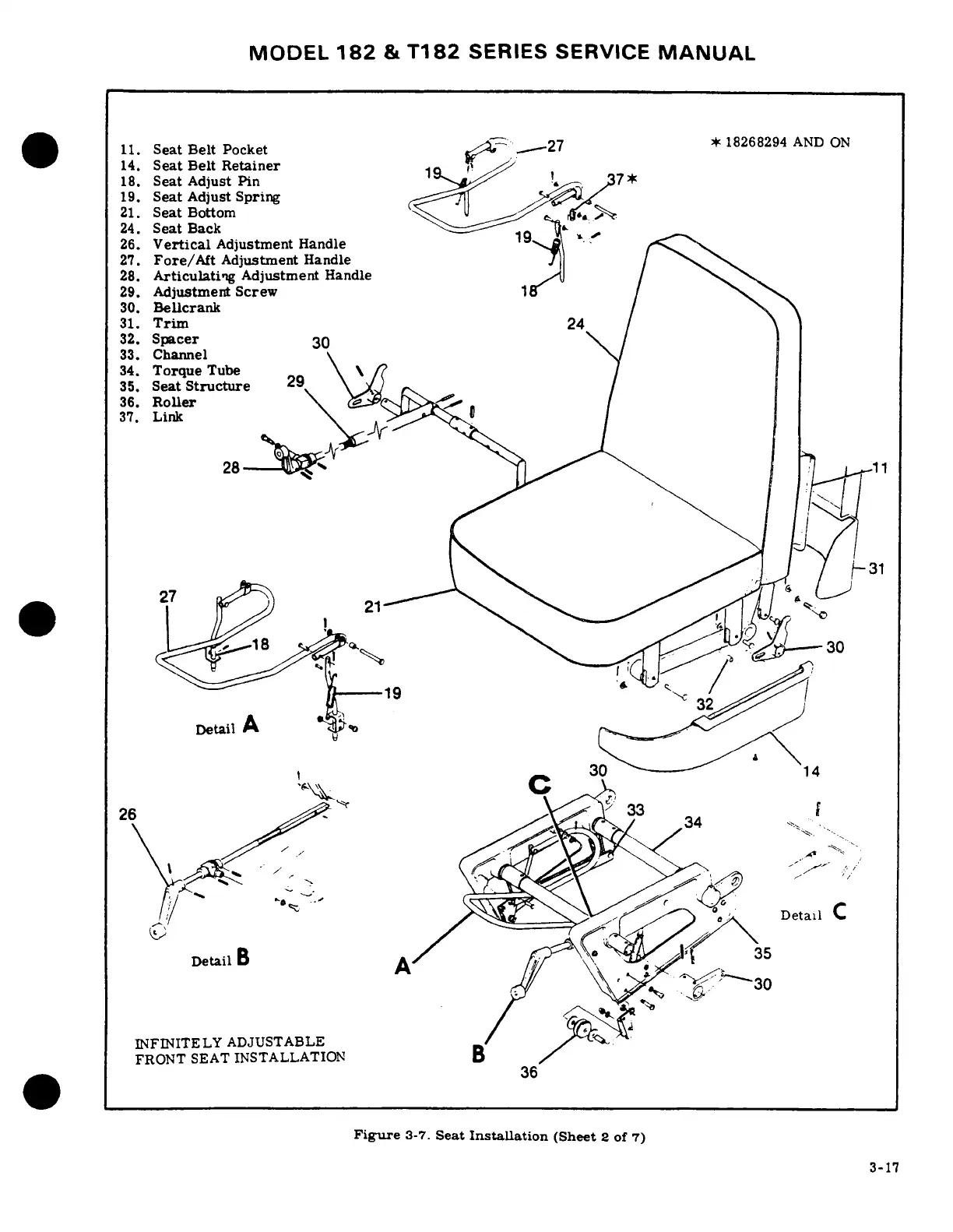

INFINITELY ADJUSTABLE
FRONT SEAT INSTALLATION
36
Figure
3-7.
Seat
Installation
(Sheet
2 of
7)
3-17
