MODEL
182
&
T182
SERIES
SERVICE
MANUAL
1.
Fin
Assembly
2.
Upper
Rudder
Hinge
3.
Center
Rudder
Hinge
4.
Lower
Rudder
Hinge
5.
Bolt
6.
Washer
7. Nut
2
8.
Bolt
9.
Fairing
Detail
A
NOTE
Attach
Bolt
Torques:
70-100
inch-lbs
140-225
inch-lbs
Detail
B
$5
¢
.'/7\/7
S^^^\ 6
Detail
C
Detail
D

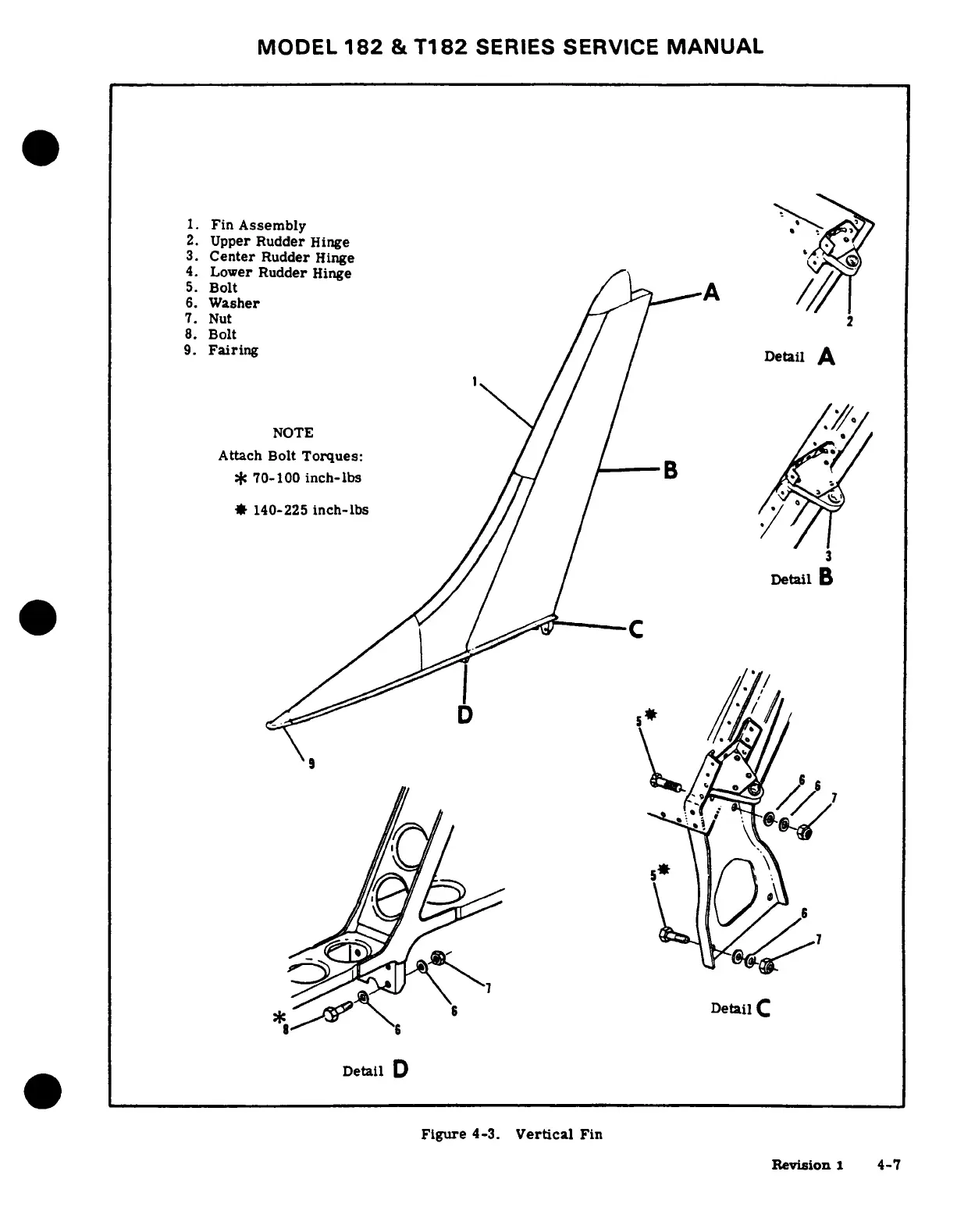

Figure
4-3.
Vertical
Fin
Revision
1
4-7
