Cessna 182 1978 - Jacking Procedure

MODEL
182 &
T182 SERIES
SERVICE
MANUAL
F18200065 & ON
ITEM
NUMBER
TYPE
AND
PART
NUMBER
REMARKS
A 2-170
Basic
jack
Closed height:
69-1
'2 inches:
extended
0QJ
#2-109
Leg
Extension
height:
92
inches
(Insert
slide
tube
<2-70
Slide tube
extension
extension
into
basic jack).
(T)
Cessna
#2-168
Universal
tail
stand
(See
Note
1)
Q (3)
Built-in
jack pad
Part of
step bracket
(See
Caution)
G)
Block
1x4x4
padded
with
1/4"
rubber
1.
Weighted
adjustable
stand
attaches
to
tie-down
ring.
2.
Items
(1)
and
(2) are
available
from
the
Cessna
Supply
Division.
JACKING PROCEDURE
a. Lower
aircraft tail so that wing jack
can be placed under front spar just
outboard of
wing strut.
b. Raise aircraft tail and attach
tail stand to tie-down ring. BE SURE
that tail stand
weighs enough to keep tail down under all conditions and is strong enough to support
aircraft weight.
c. Raise jacks
evenly until desired
height is reached.
ICAUTIONi
When using the universal jack point. flexibility
of the gear strut will cause the main
wheel to slide in-
board as the wheel is raised, tilting the jack. The jack must be lowered for a second operation. Jacking
both main wheels
simultaneously
with universal jack
points is not
recommended.
NOTE
Corresponding
points
on
both upper
door sills
may be
used to
level the
aircraft laterally.
Reference
points
for
longitudinal
leveling
of the aircraft
are two
screws
on the
left
side of the tailcone. These
are indicated in the above illustration
by A ·
(Also
refer
to
paragraph
2-5)

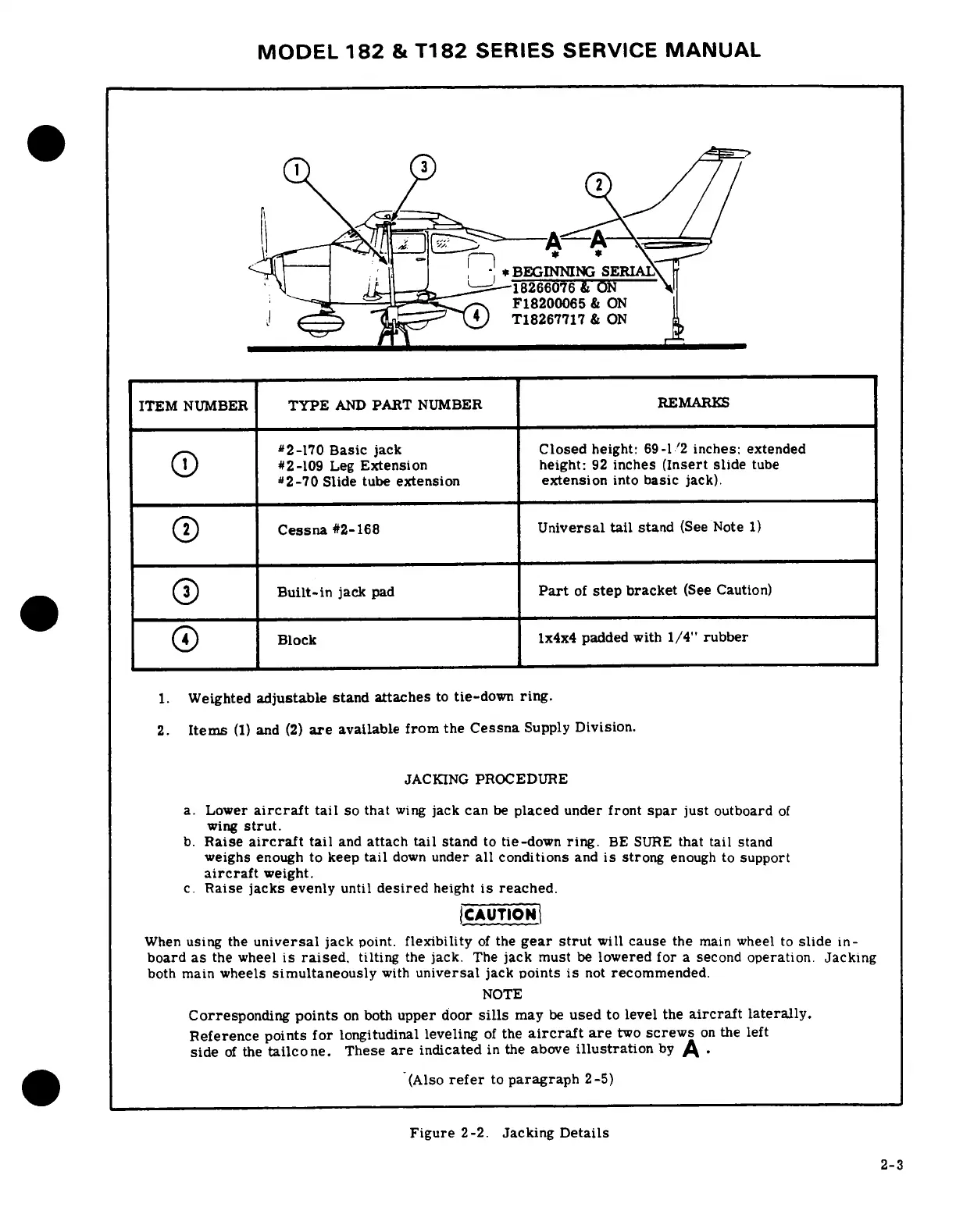

Figure 2-2. Jacking Details
2-3
