Cessna 182 1978 - Cowl Flap Installation

MODEL 182 & T182 SERIES SERVICE MANUAL
A" '
- " >-,'- D eta il A
\ \ Detail B
3. Clamp
2
10
12
e
aDetaiC
8
Detail B
1. Pedestal
2. Cowl Flap Control
3. Clamp
4. Retainer
5. Cowl Flaps
6. Clevis
7. Shock - Mount
8. Bracket
9.
Position
Bracket
10. Clevis
11. Control Lever
12.
Bushing

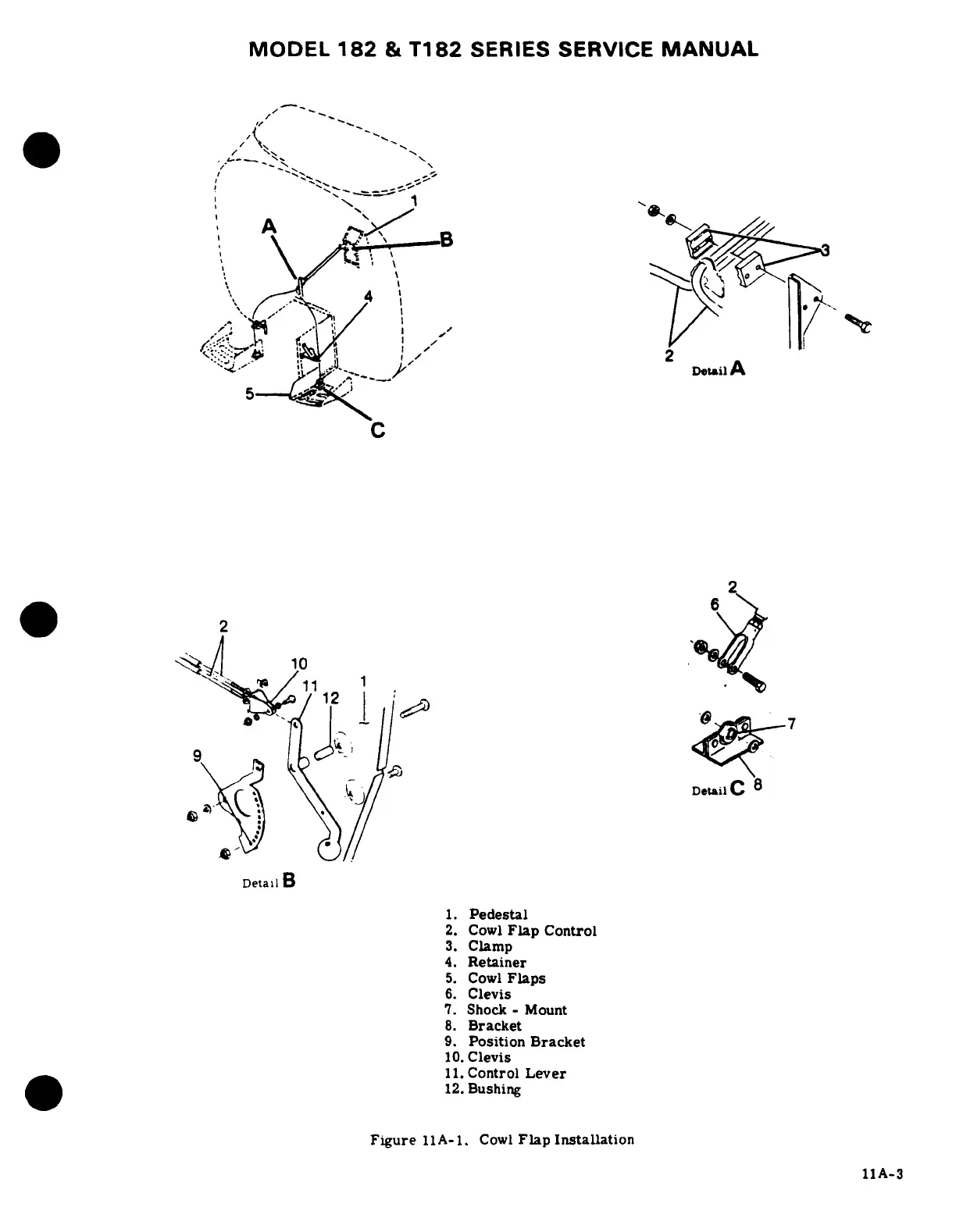

Figure 11A-1. Cowl Flap Installation
11A-3
