Cessna 182 1978 - Throttle to Carburetor and Waste Gate Installation

MODEL
182
& T182
SERIES
SERVICE
MANUAL
30
2
1424
23 17
1. Carburetor
16.
Retainer
31. Switch
Mount
(nonfunctional)
2. Idle
Adjusting
Screw
17. Lever
_
32. Throttle
Shaft
Extension
3. Throttle
Arm
18.
Throttle
Control
33. Spring
Pin
4. Throttle
Shaft
19.
Bearing
34. Washer
5. Bolt
20.
Throttle Control
Rod End
35.
Support Assembly
6. Washers
21.
Nut
36. Bolts
7. Bearing
22. Cotter
Pin
37. Mount
8. Lever
Slotted Throttle
23. Castellated
Nut
38. Gasket
9.
Bolt
24.
Cam (nonfunctional)
10. Washer
25. Nut
11. Retainer 26. Washer
12. Washer 27. Washer
13. Bearing 28. Clamp
14. Bracket
29.
Bolt
15.
Washer
30. Waste
Gate Control
Cable

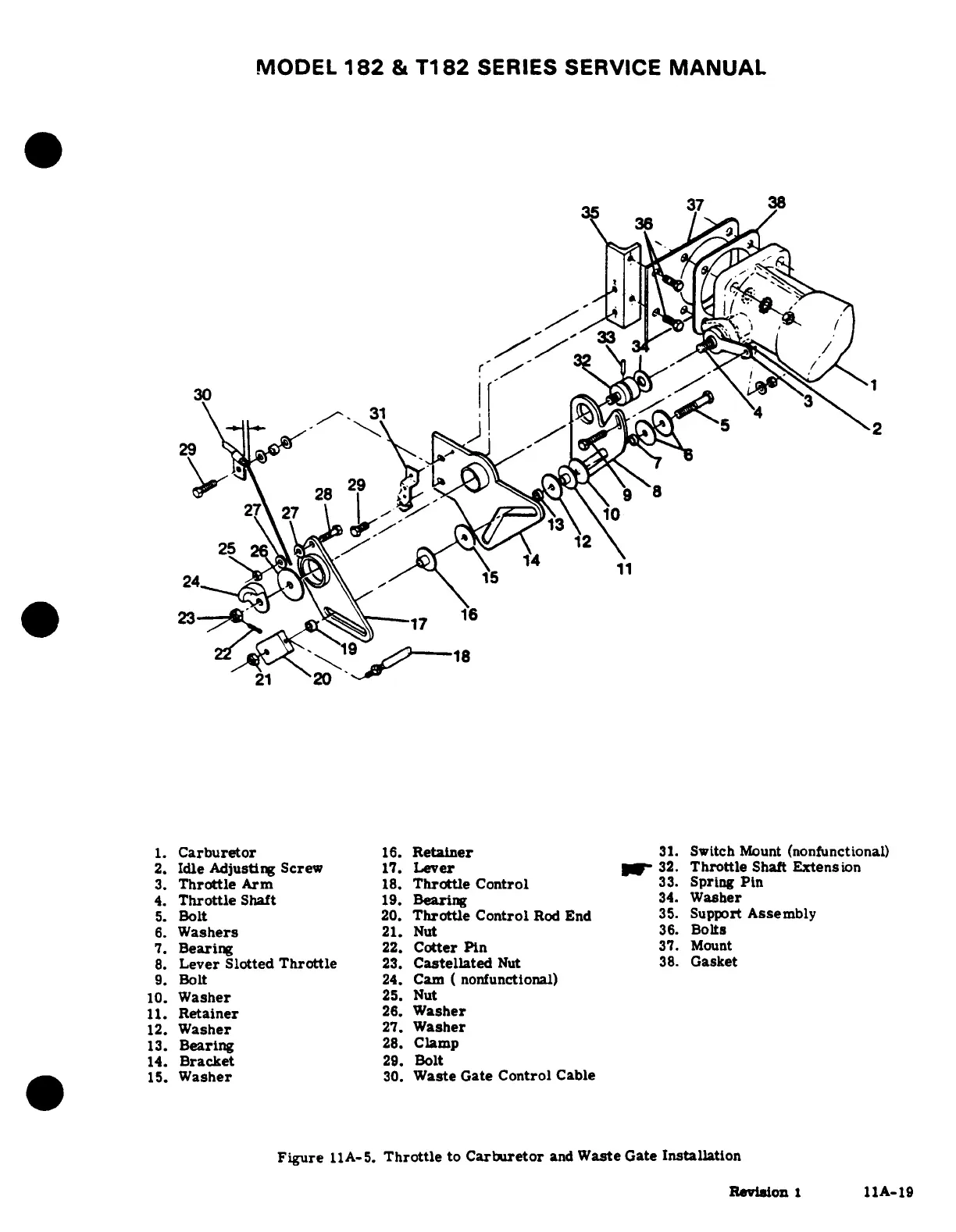

Figure
11A-5.
Throttle
to Carburetor
and Waste
Gate Installation
