Cessna 182 1978 - Flap Motor and Transmission Installation

MODEL 182 & T182
SERIES SERVICE
MANUAL
Use Loctite
grade CV
adhesive on
threads
of
setscrew
(6) and
collar
(24) whenever actuating tube (5) is
2
2. Wing Structure
3. Jackscrew
5.
Jackscrew
4. Bolt
5.
Actuating
Tube
6. Setscrew
f /
7. Transmission
Assembly
.
.
8.
Electrical
Wiring
9. Motor
Assembly
11. Bolt
12. Cable Lock
13. Drive
Pulley
14. Push-Pull Rod
.
15.
Attach
Bracket
16.
Bolt
17. Direct Cable
18.
Retract
Cable
19. Bolt
20.
Bolt
21. Set Screw
22.
Switch Adjustment Block
23. Up-Limit
Switch
UP
position
24. Switch
Actuating Collar
25.
Support
-
26. Down-Limit Switch
27. Nut
NOTE
Use
Locktite
No.
601
or
equivalent.

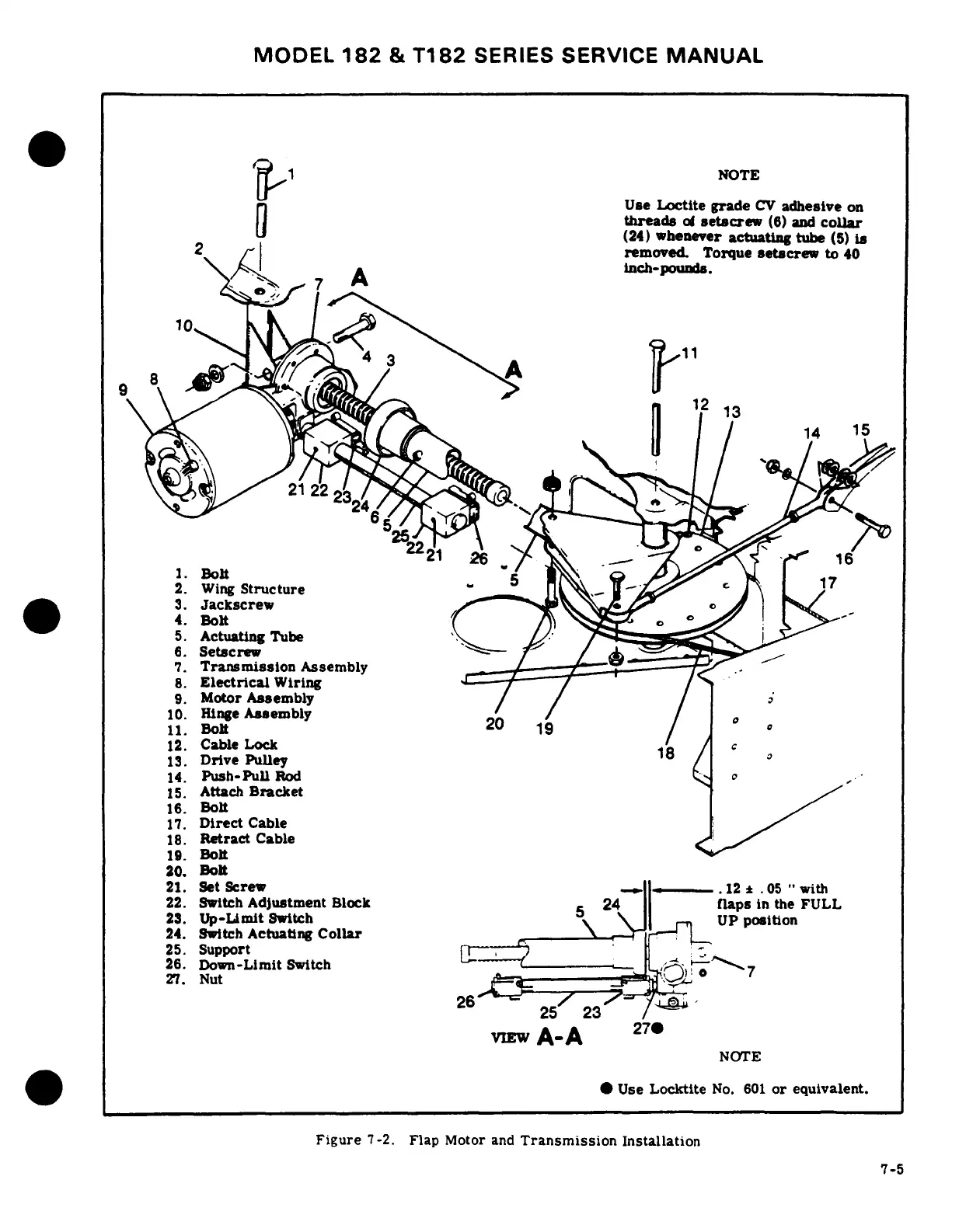

Figure 7-2. Flap Motor
and Transmission
Installation
7-5
