MODEL 182 & T182 SERIES SERVICE MANUAL
NOTES
Beginning with serial
18268457, nutring (1) is
3
bonded
to root
rib (3). Order
kit number
SK210-
4
56 or SK210-101,
fuel tank
sealant from Cessna
Supply
Division.
18265176 thru 18268455.
whenever removing
and replacing
fuel quantity
transmitter (5), dis-
card gasket
(4) and replace it with
new S2670-1
gasket (8).
Torque screws (7) to 20 in.-lbs (once only), using
a cross-pattern sequence.
18265176 THRU 18268456
F18200026 THRU 18200169
1.
Nutring
2. Gasket - Root Rib
3.
Root
Rib
4. Gasket - Transmitter
5. Fuel
Quantity Transmitter
6. Washer
7. Screw
8. Gasket
18268457
AND
ON
Detail C

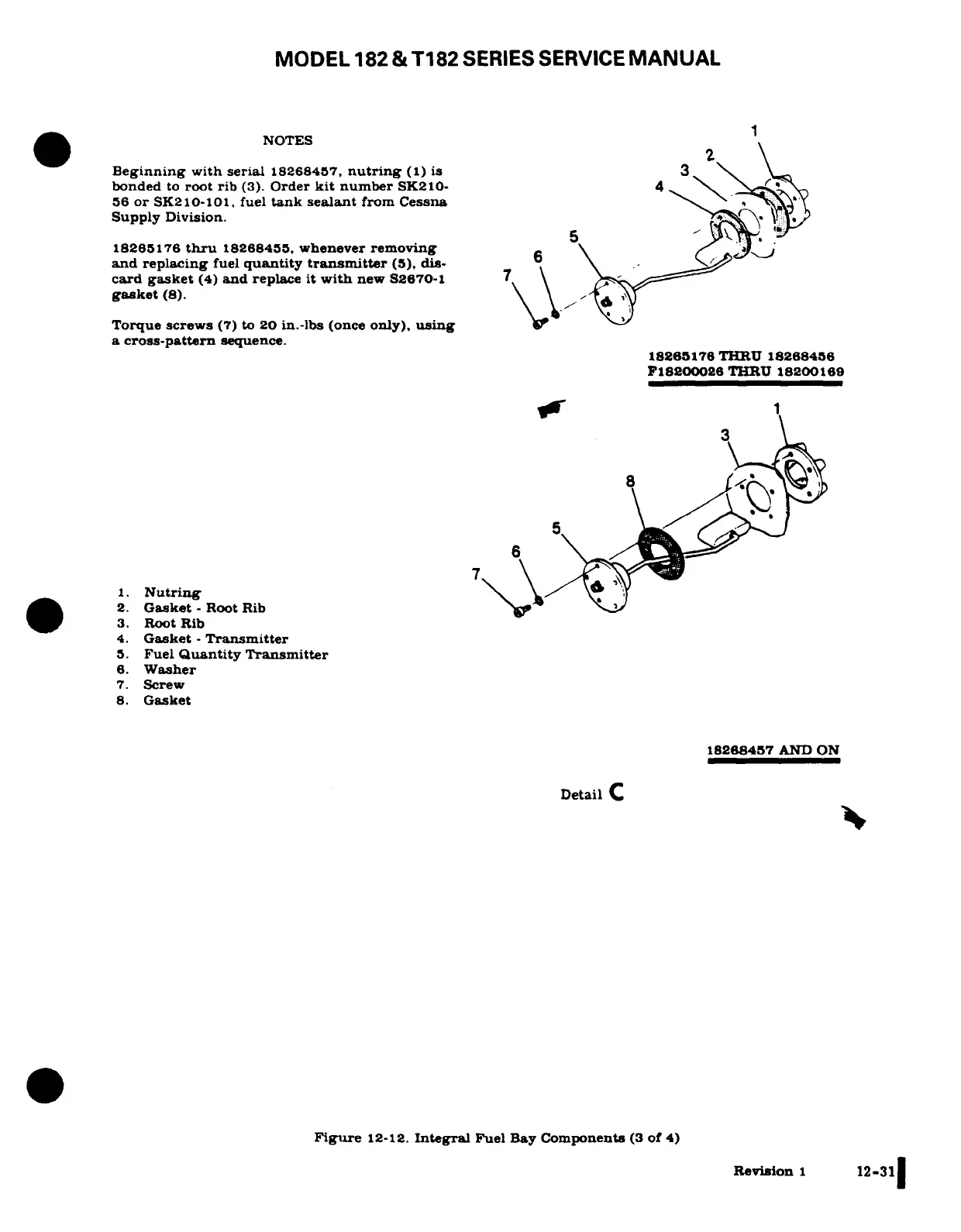

Figure 12-12. Integral Fuel Bay Components (3 of 4)
Revision 1 12-31
