Cessna 182 1978 - Alternate Static Air System

MODEL 182 & T182 SERIES SERVICE MANUAL
2
NOTE
See
figure
15-2
for
sump
installation.
1.
Line (To Instruments)
4. Line (Alternate
Air)
2. Line (To Left Sump) 5. Bracket
3. Line
(To Right Sump)
6. Valve

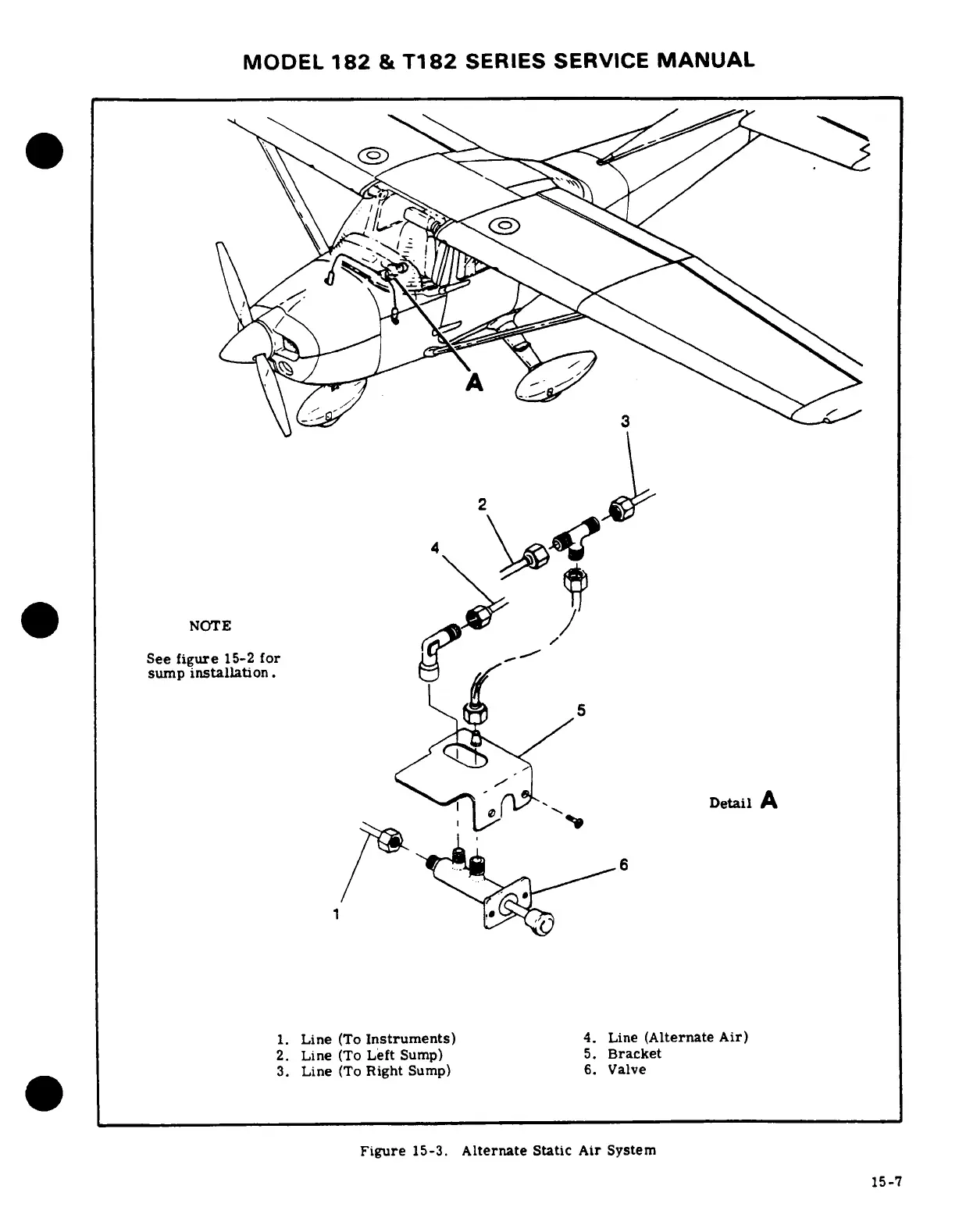

Figure 15-3. Alternate Static Air System
15-7
