Cessna 182 1978 - Transistorized Light Dimming;Electroluminescent Inverter Installation

MODEL
182
& T182
SERIES
SERVICE
MANUAL
11
Detail C
1.
Screw
6. Transistor
11.
Rheostat
2.
Inverter
7. Mica
Washer
12.
Set Screw
3. Washer
8.
Heat Sink
13. Control
- Instrument
Lighting
4.
Nut
9. Mounting
Bracket
14. Control
- Engine
Inst. and
Radio lighting
5. Glove
Box
10.
Housing-Socket
15. Control
- Lower
Panel Lighting

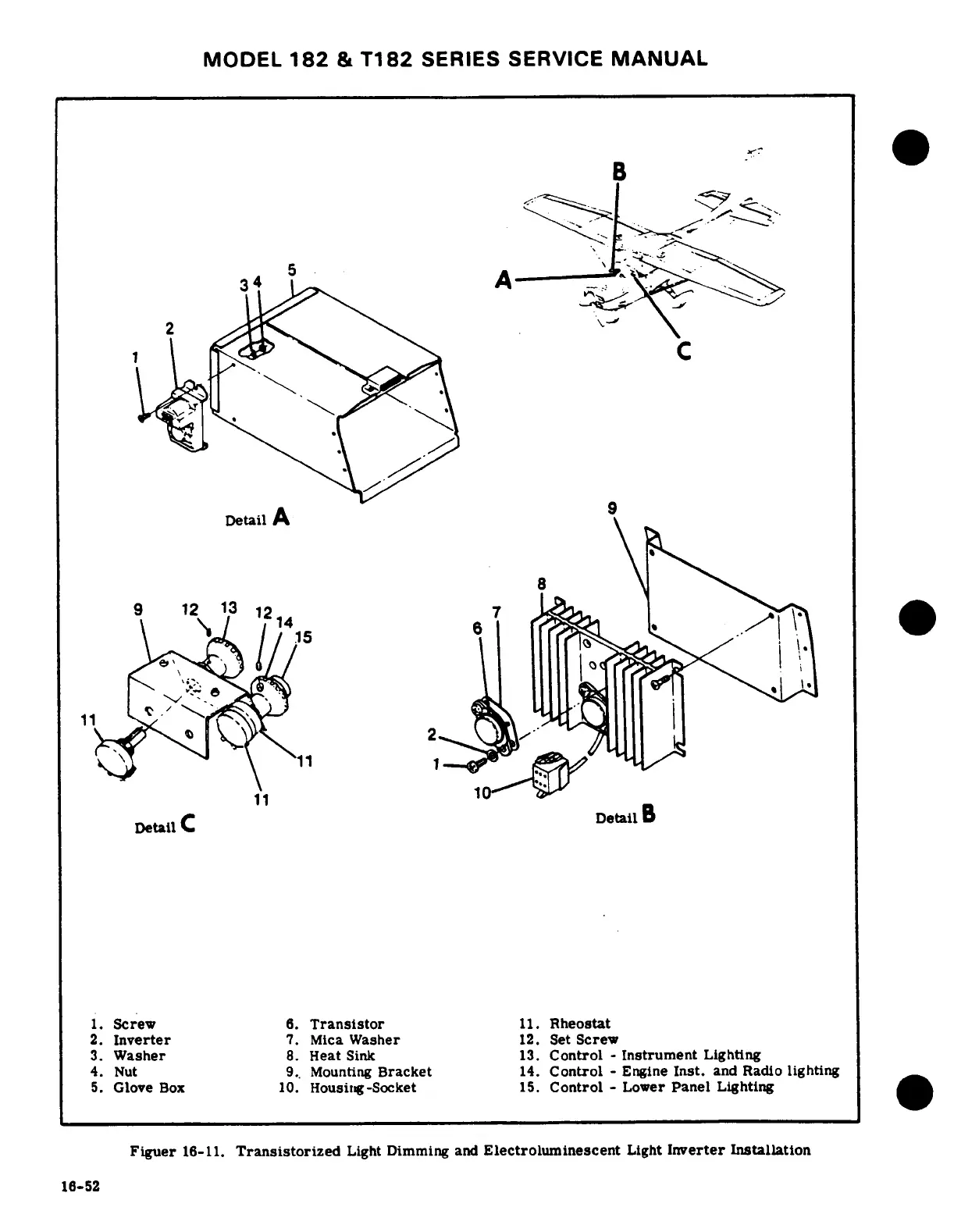

Figuer
16-11. Transistorized
Light
Dimming
and
Electroluminescent
Light
Inverter
Installation
16-52
