Cessna 182 1978 - Trim Tab Free-Play Inspection

MODEL
182
& T182 SERIES
SERVICE
MANUAL
HINGE
POINT
HINGE
POINT
-TRAILING
EDGE
CHORD LENGTH
TRIM TAB
Detail A Detail B FREE-PLAY UP
NEUTRAL
POSITION
FREE-PLAY DOWN
TOTAL FREE-PLAY
1. Measure chord
length at extreme inboard
end of
trim tab as shown in detail A.
2. Mulitiply chord length by 0.025 to obtain maximum
allowable free-play.
3. Measure free-play
at same point on
trim tab that
chord length
was measured.
4. Total
free-play must not
exceed maximum allow-
able.
See
detail
B.

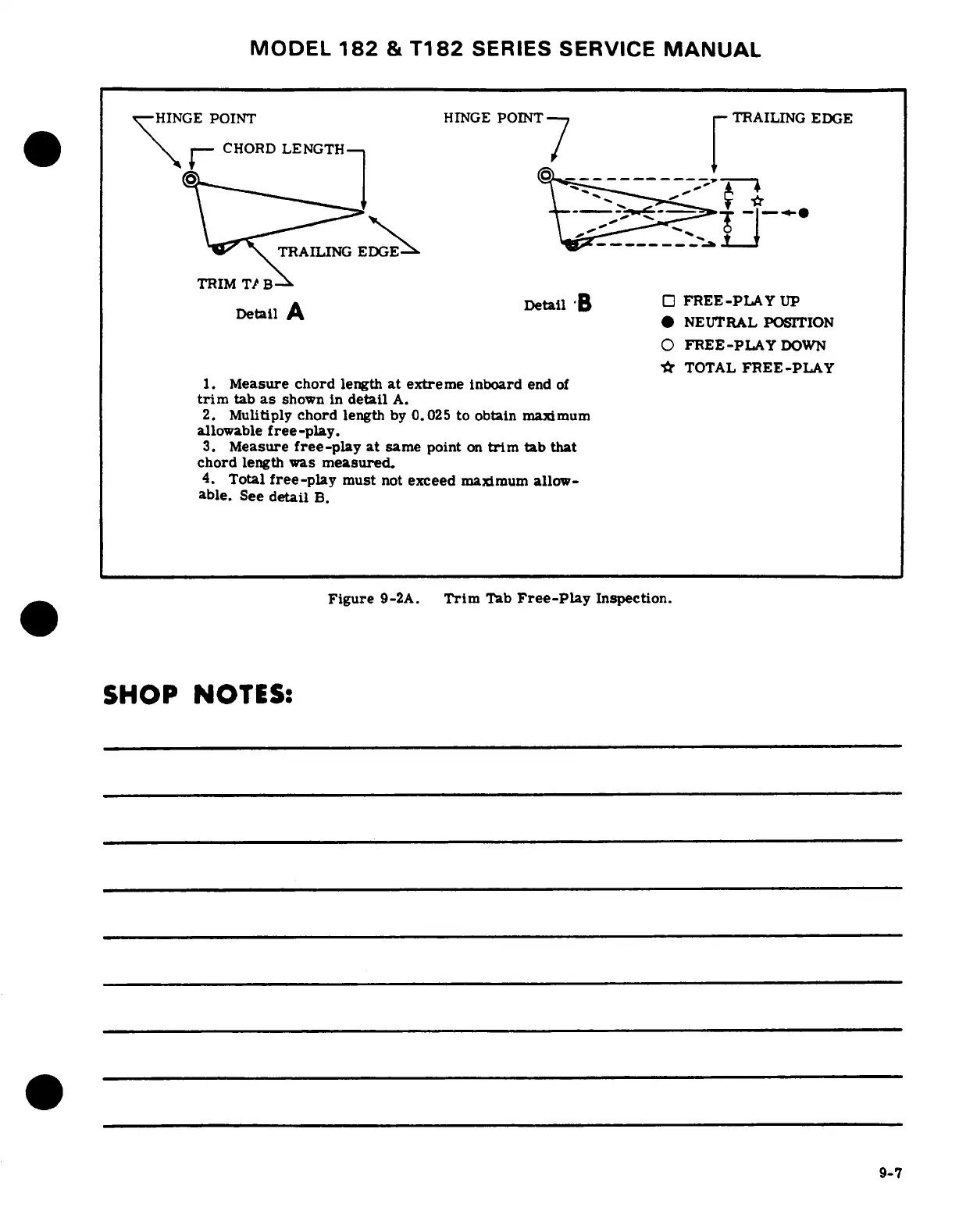

Figure 9-2A. Trim Tab Free-Play Inspection.
