MODEL
182
&
T182
SERIES
SERVICE
MANUAL
NOTE
A
minimum
of
one
gasket
(4)
and
a
maximum
of
two
gaskets
may
be
used to
secure
lamp
(5)
be-
tween
bracket
(6)
and
plate
(3).
A
maximum
of
two
washers
Detail
A
may
be
used
between
support
(2)
and
plate
(3)
for
adjustment.
1.
Nose
Cap
2.
Landing
Light
Support
3.
Plate
4.
Gasket
5.
Lamp
6.
Bracket
7.
Screw
8.
Tinnerman
Screw

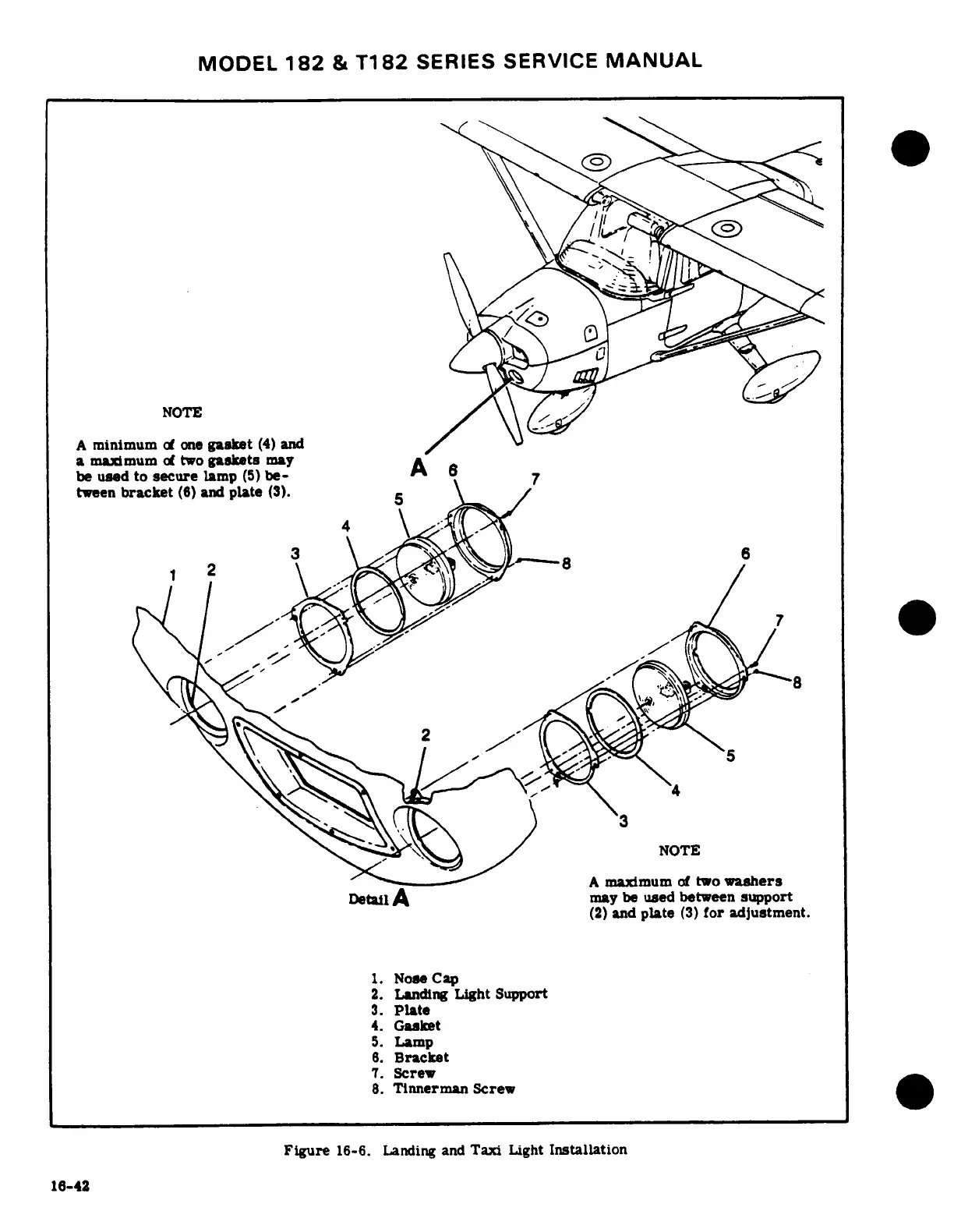

Figure
16-6.
Landing
and
Taxi
Light
Installation
16-42
