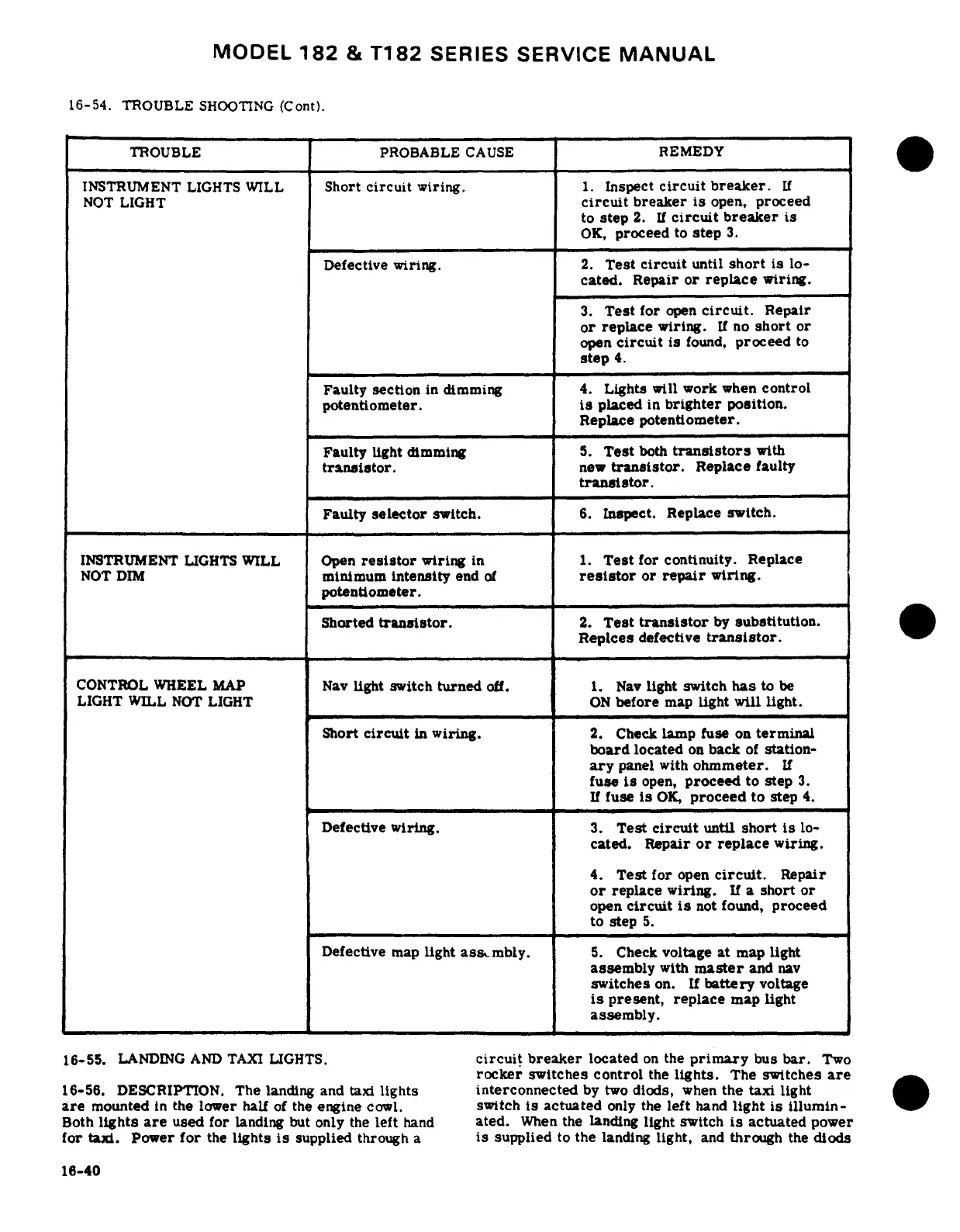

MODEL
182
&
T182
SERIES
SERVICE
MANUAL
16-54.
TROUBLE
SHOOTING
(Cont).
TROUBLE
PROBABLE
CAUSE
REMEDY
INSTRUMENT
LIGHTS
WILL
Short
circuit
wiring.
1.
Inspect
circuit
breaker.
If
NOT
LIGHT
circuit
breaker
is
open,
proceed
to
step
2.
If
circuit breaker
is
OK,
proceed
to
step
3.
Defective wiring.
2.
Test
circuit
until
short
is
lo-
cated. Repair
or
replace
wiring.
3.
Test
for
open
circuit.
Repair
or
replace
wiring.
If
no
short
or
open
circuit
is
found,
proceed
to
step
4.
Faulty
section
in
dimming
4.
Lights
will
work
when
control
potentiometer.
is
placed
in
brighter
position.
Replace
potentiometer.
Faulty
light dimming
5.
Test
both
transistors
with
transistor.
new
transistor.
Replace
faulty
transistor.
Faulty
selector
switch.
6.
Inspect. Replace
switch.
INSTRUMENT
LIGHTS
WILL
Open
resistor
wiring
in
1.
Test
for continuity.
Replace
NOT
DIM
minimum
intensity
end
of
resistor
or
repair
wiring.
potentiometer.
Shorted
transistor.
2.
Test
transistor
by
substitution.
Replaces
defective
transistor.
CONTROL WHEEL
MAP Nav
light switch
turned
off. 1.
Nav
light
switch
has
to
be
LIGHT WILL
NOT
LIGHT
ON
before
map
light
will light.
Short
circuit
in
wiring.
2.
Check
lamp
fuse
on
terminal
board
located
on
back
of
station-
ary
panel
with
ohmmeter.
If
fuse
is
open,
proceed
to
step
3.
If
fuse
is
OK,
proceed
to
step
4.
Defective
wiring.
3.
Test
circuit
until
short
is
lo-
cated.
Repair
or
replace
wiring.
4.
Test
for
open
circuit.
Repair
or
replace
wiring.
If
a
short
or
open
circuit
is
not
found,
proceed
to
step
5.
Defective
map
light
assembly.
5.
Check
voltage
at
map
light
assembly
with
master
and
nav
switches
on.
If
battery
voltage
is
present,
replace
map
light
assembly.
16-55.
LANDING
AND
TAXI
LIGHTS.
circuit
breaker
located
on
the
primary
bus
bar.
Two
rocker
switches
control
the
lights.
The
switches
are
16-56.
DESCRIPTION.
The
landing
and
taxi
lights
interconnected
by
two
diods,
when
the
taxi
light
are
mounted
in
the
lower
half
of
the
engine
cowl.
switch
is
actuated
only
the
left
hand
light
is
illumin-
Both
lights
are
used
for
landing
but
only
the
left
hand
ated.
When
the
landing
light
switch
is
actuated
power
for
taxi.
Power
for
the
lights
is
supplied
through
a
is
supplied
to
the
landing
light,
and
through
the
diods
